Terminals - Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors: Category Overview
1. Definition of Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors are specialized electrical components designed to establish secure, low-resistance connections for magnet wire (enameled wire) in high-performance applications. These connectors feature precision-engineered terminals that pierce or displace the wire's insulation, ensuring reliable conductivity without stripping. Commonly used in transformers, motors, solenoids, and inductors, they excel in environments demanding vibration resistance, compact spacing, and efficient power transmission.
2. Types of Magnetic Wire Connectors
This category includes several key variants:
- Insulation Displacement Connectors (IDC): Slotted terminals that cut through enamel insulation for gas-tight connections.
- Crimp Terminals: Pre-insulated or bare metal sleeves crimped onto stripped magnet wire.
- PCB Mount Connectors: Board-mounted terminals for direct magnet wire attachment.
- Quick-Connect Terminals: Tool-free designs for rapid assembly.
Materials range from phosphor bronze (for high conductivity) to nickel-plated steel (for durability), with voltage ratings spanning 300V to 1kV+.
3. Purchasing Recommendations
When selecting Magnetic Wire Connectors, consider:
- Wire Gauge Compatibility: Match terminal size (e.g., 18-22 AWG) to your wire diameter.
- Current Rating: Ensure the connector meets or exceeds the application s amperage needs.
- Environmental Factors: Opt for heat-resistant or waterproof designs if exposed to extreme conditions.
- Certifications: Look for UL, IEC, or RoHS compliance for safety and regulatory adherence.
For automated production, IDC types reduce labor costs, while hand-assembled projects may favor crimp terminals. Partner with trusted suppliers to avoid counterfeit components in critical circuits.
Note: Always verify datasheets for thermal cycling performance and termination torque specifications.
Filter and sort
Categories

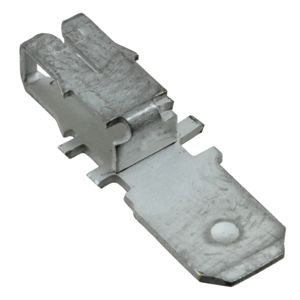

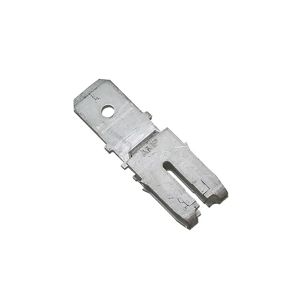

62514-1
CONN MAG TERM 23-27AWG QC 0.187

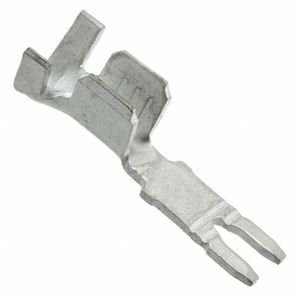

63397-1
CONN MAG TERM 14-18AWG POKE-IN

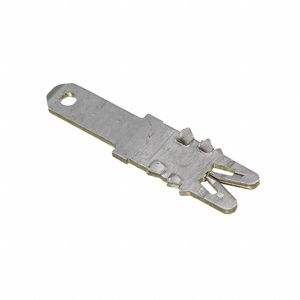

2-1601039-2
CONN MAG TERM 18-34AWG QC 0.110

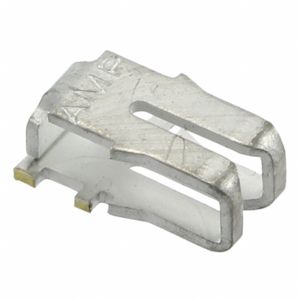

62903-1
CONN MAG TERM 18-20AWG IDC

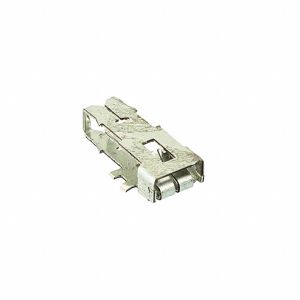

1718707-1
CONN MAG TERM 26-30AWG IDC

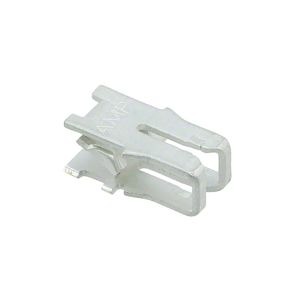

62833-1
CONN MAG TERM 16.5-20AWG IDC

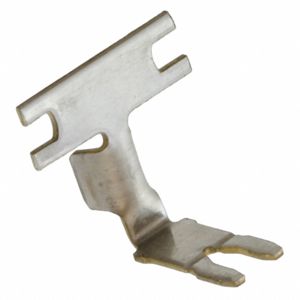

63364-1
CONN MAG TERM 18-22AWG POKE-IN

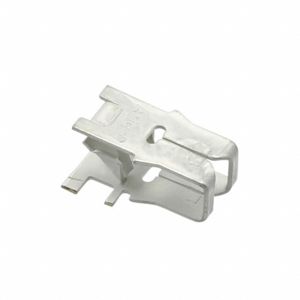

62431-1
CONN MAG TERM 31-33AWG IDC

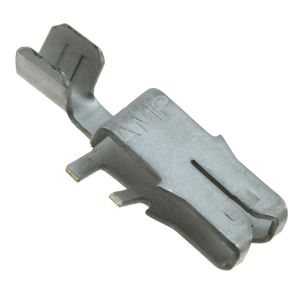

63237-1
CONN MAG TERM 24-27AWG CRIMP

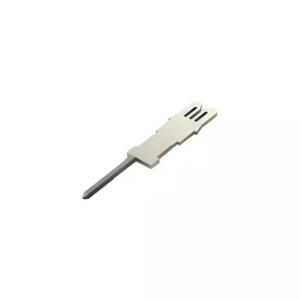

1601144-3
CONN MAG TERM 20AWG PIN

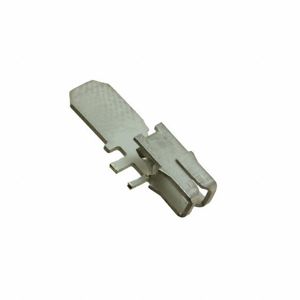

2-316300-7
CONN MAG TERM TAB

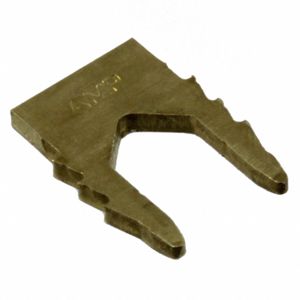

4-1601140-1
CONN MAG TERM 18-22AWG IDC

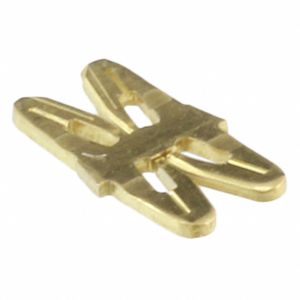

4-1601000-1
CONN MAG TERM 18-34AWG IDC

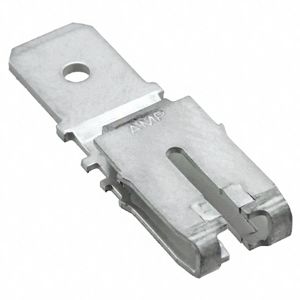

63816-1
CONN MAG TERM 13-14AWG QC 0.250

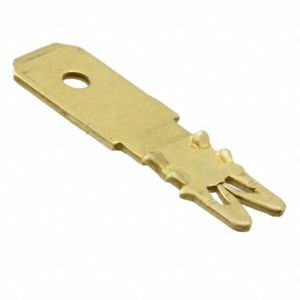

4-1601013-1
CONN MAG TERM 18-34AWG QC 0.187
63881-1
CONN MAG TERM 15-16AWG QC 0.250

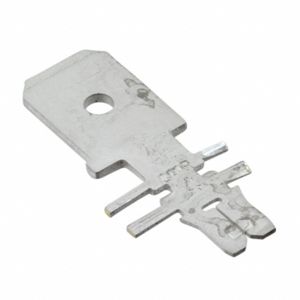

63716-2
CONN MAG TERM 31-33AWG IDC

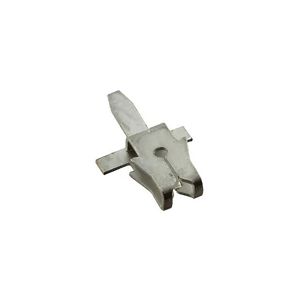

62938-1
CONN MAG TERM 31-33AWG PCB

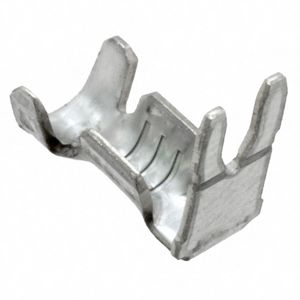

1217132-1
CONN MAG TERM 18-22AWG POKE-IN

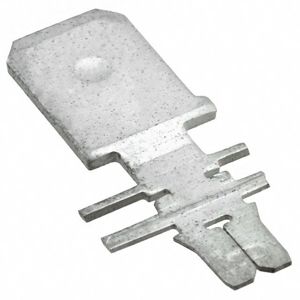

63744-2
CONN MAG TERM 31-33AWG IDC
