Banana and Tip Connectors - Jacks, Plugs
Banana and Tip Connectors - Jacks, Plugs
Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories

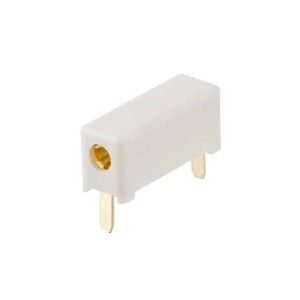

M3498-94
CONN TIP JACK SOLDER WHITE

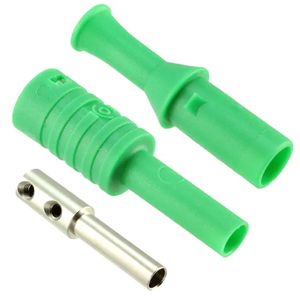

CT3134-5
CONN BANANA JACK SLDRLESS GREEN

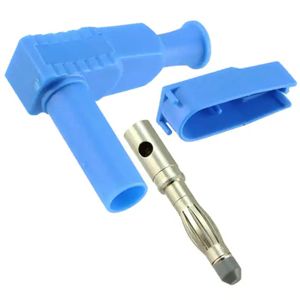

CT3203-6
CONN BANANA PLUG SOLDERLESS BLUE

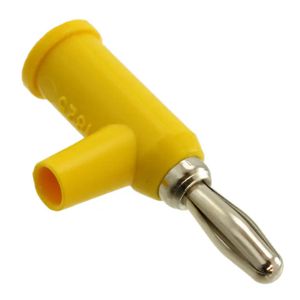

1825-4
CONN BANANA PLUG STACK SLDRLESS

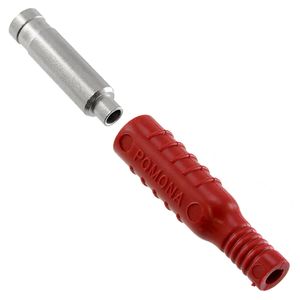

5168-2
CONN BANANA JACK RED

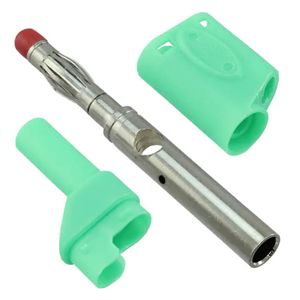

BU-3110410-5
CONN BANANA PLUG STACK SOLDER

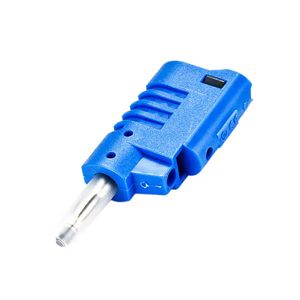

CT2015-6
CONN BANANA PLUG STACK SLDRLESS

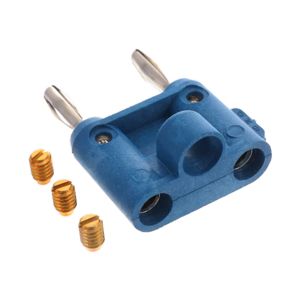

4898-6
CONN DBL BAN PLUG STACK SLDRLESS

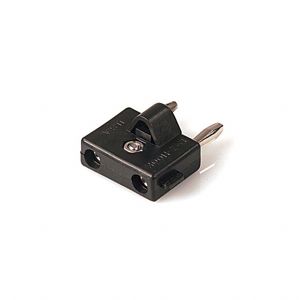

DB750BLK
CONN DBL BAN PLUG STACK SLDRLESS

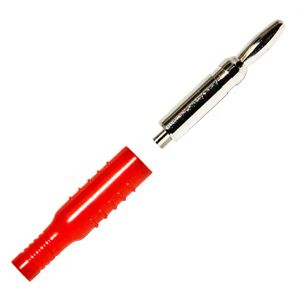

BU-P5170-2
CONN BANANA PLUG RED

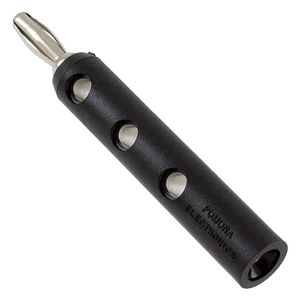

3364-0
CONN BANANA PLUG STACK SLDRLESS

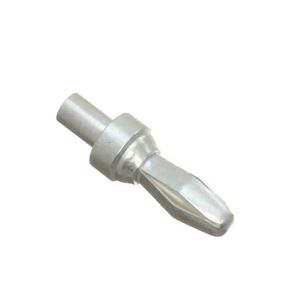

108-0754-001
CONN BANANA PLUG RIVET

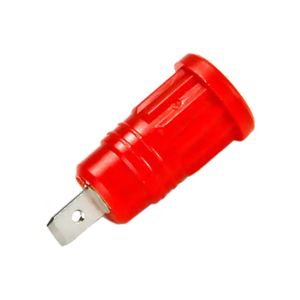

CT2915-2
CONN BANANA JACK QC RED

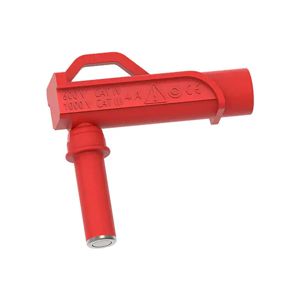

CT3882-2
8MM MAG CONN RA BANANA JACK RED

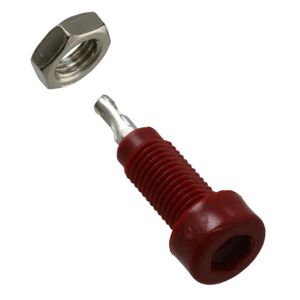

105-0802-001
CONN TIP JACK SLDR EYELET RED

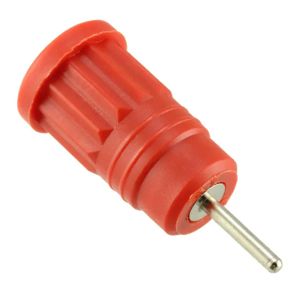

CT2912-2
CONN BANANA JACK SOLDER RED

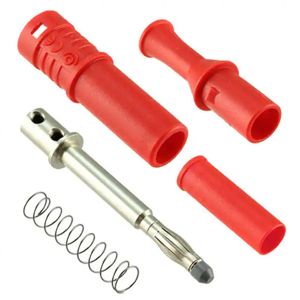

CT3201-S-2
CONN BANANA PLUG SOLDER RED

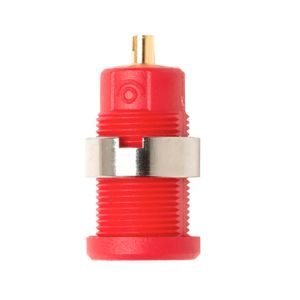

5931-2
CONN BANANA JACK SOLDER RED

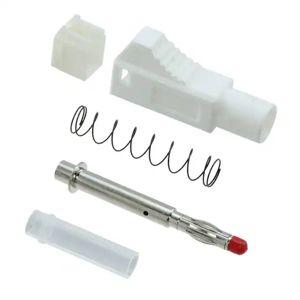

BU-3261410-9
CONN BANANA PLUG SOLDER WHITE

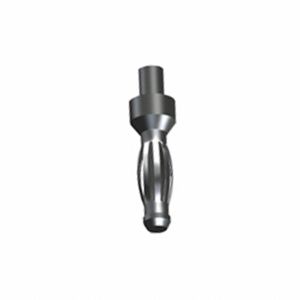

658
CONN BANANA PLUG RIVET
