Definition
Clock/Timing - Delay Lines are specialized Integrated Circuits (ICs) designed to introduce precise time delays in digital signal paths. These components ensure accurate synchronization, signal alignment, and phase adjustment in high-speed electronic systems. Delay lines are crucial in applications requiring strict timing control, such as data communication, memory interfaces, and microprocessor clock distribution.
Types of Delay Lines
- Fixed Delay Lines Provide a predetermined delay, ideal for consistent timing adjustments.
- Programmable Delay Lines Allow user-configurable delays via digital interfaces (e.g., SPI, I C).
- Voltage-Controlled Delay Lines (VCDLs) Adjust delay dynamically using an analog voltage input.
- Differential Delay Lines Support high-speed differential signaling (e.g., LVDS, CML).
- Temperature-Compensated Delay Lines Maintain stable delays despite thermal fluctuations.
Buying Considerations
- Delay Range & Precision Select based on required resolution (e.g., picosecond-level accuracy).
- Signal Compatibility Ensure support for your interface (e.g., CMOS, TTL, LVDS).
- Power Consumption Critical for portable/battery-operated devices.
- Package Type Choose between surface-mount (SMD) or through-hole based on PCB design.
- Jitter Performance Low jitter is vital for high-frequency applications.
Delay lines optimize system timing integrity whether for FPGA clock distribution, network synchronization, or test equipment. Evaluate specifications carefully to match your design requirements.
Filter and sort
Categories
DS1100M-100+
IC DELAY LINE 5TAP 100NS 8DIP
DS1100M-30
IC DELAY LINE 5TAP 30NS 8DIP
DS1007S-14
IC DELAY LINE PROG 16SOIC
DS1013M-15+
IC DELAY LINE 15NS 8DIP

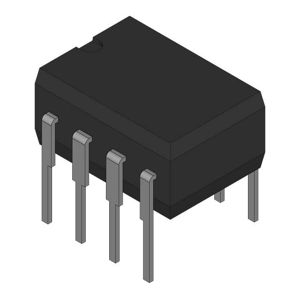

DS1000Z-200N/T&R
DS1000 5-TAP SILICON DELAY LINE
DS1135LZ-15
IC DELAY LINE 15NS 8SOIC
DS1100LZ-40+
IC DELAY LINE 5TAP 40NS 8SOIC
DS1000S-45
DS1000 5-TAP SILICON DELAY LINE
DS1100Z-45+
IC DELAY LINE 5TAP 45NS 8SOIC
DS1000Z-175
DS1000 5-TAP SILICON DELAY LINE
DS1044-20
4-IN-1 HIGH-SPEED DELAY LINE
DS1135Z-15
IC DELAY LINE 15NS 8SOIC
DS1004Z-5
IC DELAY LINE 5TAP 25NS 8SOIC
DS1135Z-30+
IC DELAY LINE 30NS 8SOIC
DS1100M-450+
IC DELAY LINE 5TAP 450NS 8DIP
DS1100M-20+
IC DELAY LINE 5TAP 20NS 8DIP
DS1100LZ-45+
IC DELAY LINE 5TAP 45NS 8SOIC
DS1013-75
IC DELAY LINE 75NS 14DIP
DS1100LU-35
DELAY LINE 3V 5TAP 35NS 8-USOP
DS1135U-25+
IC DELAY LINE 25NS 8UMAX
