Definition:
Digital Potentiometers, often referred to as "digipots," are integrated circuits (ICs) designed to emulate the functionality of traditional mechanical potentiometers but with digital control. These devices provide variable resistance through electronic signals, enabling precise adjustment of voltage division, current control, or signal attenuation in a circuit. As a key component in data acquisition systems, digital potentiometers offer enhanced accuracy, programmability, and reliability compared to their analog counterparts.
Types of Digital Potentiometers:
1. Volatile vs. Non-Volatile:
- Volatile Digipots lose their settings when power is removed, suitable for dynamic applications requiring frequent adjustments.
- Non-Volatile Digipots retain settings after power-off, ideal for preset configurations or memory-critical systems.
Interface Types:
- I2C/SPI-Compatible: Enable serial communication for microcontroller-based designs.
- Up/Down Interface: Simple pulse-controlled adjustment for basic applications.
Resolution & Channels:
- Ranging from 6-bit to 10-bit resolution for fine-tuning precision.
- Single, dual, or quad-channel options to support multi-circuit control.
Purchasing Recommendations:
- Match Resolution to Application: Higher bit counts (e.g., 10-bit) are critical for sensitive analog signal processing, while 6-8 bits suffice for general-purpose use.
- Consider Endurance: For frequently adjusted systems, select digipots with high write-cycle ratings (e.g., >50,000 cycles).
- Verify Voltage Compatibility: Ensure the IC s operating voltage range aligns with your circuit s requirements (e.g., 3.3V, 5V, or 15V).
- Package Size: SMD packages (e.g., TSSOP, QFN) save space in compact designs, while DIP options simplify prototyping.
Digital potentiometers bridge analog flexibility with digital precision, making them indispensable for audio equipment, sensor calibration, and automated test systems. Evaluate technical specs against your design s needs to optimize performance and cost-efficiency.
Filter and sort
Categories
CAT5111VI-10-G
IC DGTL POT INTERFACE 8SOIC
MAX5417META
256-TAP, NVM, I2C, DIGIPOT
AD8403ARUZ100-REEL
IC DGT POT 100KOHM 256TP 24TSSOP
MCP4452T-103E/ST
IC DGT POT 10KOHM 257TAP 14TSSOP

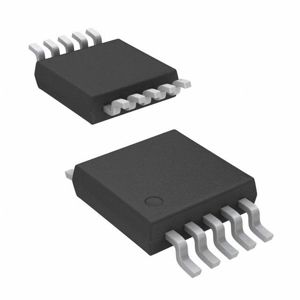

AD5173BRMZ50
IC DGTL POT 50KOHM 256TAP 10MSOP

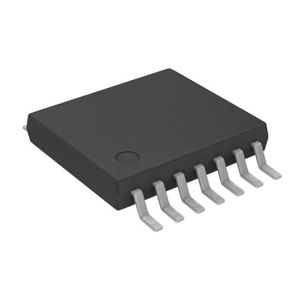

MCP4231T-104E/ST
IC DGT POT 100KOHM 129TP 14TSSOP

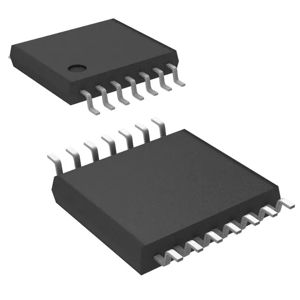

AD5252BRUZ50-RL7
IC DGT POT 50KOHM 256TAP 14TSSOP
DS3501U+T&R/H
IC DGTL POT 10KOHM 128TAP 10UMAX
MCP4018T-103E/LT
IC DGTL POT 10KOHM 128TAP SC70-6
DS1868E-100+
IC DGTL POT 100K 2CH 20TSSOP

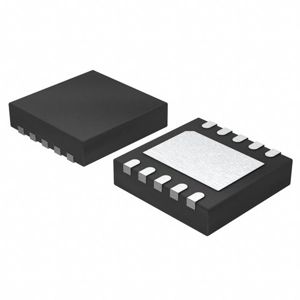

MCP4242T-104E/MF
IC DGT POT 100KOHM 129TAP 10DFN
MAX5463EXK+T
IC DGTL POT 50KOHM 32TAP SC70-5
MCP4462-502E/ST
IC DGTL POT 5KOHM 257TAP 14TSSOP
ISL23348TFRZ-T7A
DIGIPOT, CMOS, PQCC20

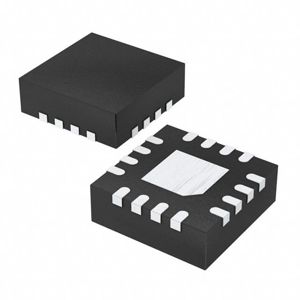

MCP4231T-503E/ML
IC DGTL POT 50KOHM 129TAP 16QFN
MCP4541T-103E/MF
IC DGT POT 10KOHM 129TAP 8DFN
MCP45HV31-503E/ST
IC DGT POT 50KOHM 128TAP 14TSSOP
MCP4261-502E/SL
IC DGTL POT 5KOHM 257TAP 14SOIC

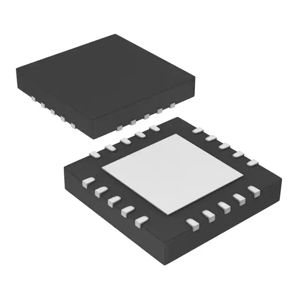

MCP45HV31-104E/MQ
