Definition:
Digital Potentiometers, often referred to as "digipots," are integrated circuits (ICs) designed to emulate the functionality of traditional mechanical potentiometers but with digital control. These devices provide variable resistance through electronic signals, enabling precise adjustment of voltage division, current control, or signal attenuation in a circuit. As a key component in data acquisition systems, digital potentiometers offer enhanced accuracy, programmability, and reliability compared to their analog counterparts.
Types of Digital Potentiometers:
1. Volatile vs. Non-Volatile:
- Volatile Digipots lose their settings when power is removed, suitable for dynamic applications requiring frequent adjustments.
- Non-Volatile Digipots retain settings after power-off, ideal for preset configurations or memory-critical systems.
Interface Types:
- I2C/SPI-Compatible: Enable serial communication for microcontroller-based designs.
- Up/Down Interface: Simple pulse-controlled adjustment for basic applications.
Resolution & Channels:
- Ranging from 6-bit to 10-bit resolution for fine-tuning precision.
- Single, dual, or quad-channel options to support multi-circuit control.
Purchasing Recommendations:
- Match Resolution to Application: Higher bit counts (e.g., 10-bit) are critical for sensitive analog signal processing, while 6-8 bits suffice for general-purpose use.
- Consider Endurance: For frequently adjusted systems, select digipots with high write-cycle ratings (e.g., >50,000 cycles).
- Verify Voltage Compatibility: Ensure the IC s operating voltage range aligns with your circuit s requirements (e.g., 3.3V, 5V, or 15V).
- Package Size: SMD packages (e.g., TSSOP, QFN) save space in compact designs, while DIP options simplify prototyping.
Digital potentiometers bridge analog flexibility with digital precision, making them indispensable for audio equipment, sensor calibration, and automated test systems. Evaluate technical specs against your design s needs to optimize performance and cost-efficiency.
Filter and sort
Categories

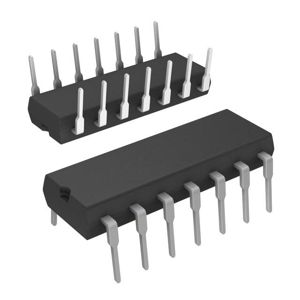

MCP42050-E/P
IC DGTL POT 50KOHM 256TAP 14DIP

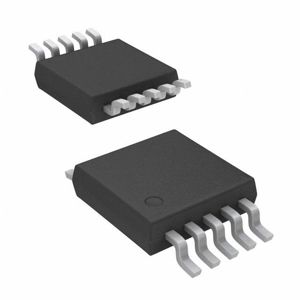

AD5243BRM100-RL7
IC DGT POT 100KOHM 256TAP 10MSOP
X9258US24ZT2
IC DGTL POT 50KOHM 256TAP 24SOIC
X9261US24
DIGIPOT, 2 FUNC, 256 PSTN

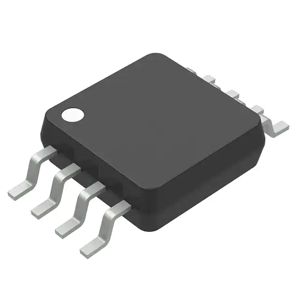

MCP4541-103E/MS
IC DGTL POT 10KOHM 129TAP 8MSOP
CAT5221WI-10-T1
IC DGTL POT 10KOHM 64TAP 20SOIC

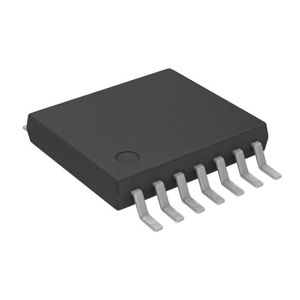

MCP4342T-502E/ST
IC DGTL POT 5KOHM 129TAP 14TSSOP
X9317WV8
DIGIPOT, 100 POSITIONS

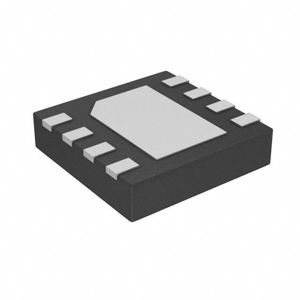

MCP4132T-502E/MF
IC DGT POT 5KOHM 129TAP 8DFN
MCP4541T-502E/MF
IC DGT POT 5KOHM 129TAP 8DFN

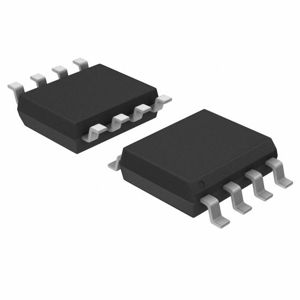

MCP4141-502E/SN
IC DGTL POT 5KOHM 129TAP 8SOIC

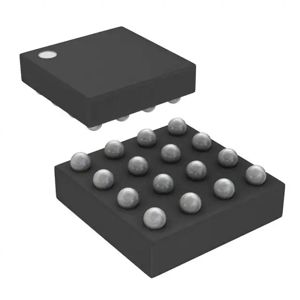

DS1859B-050+T&R
IC DGT POT 50KOHM 256TAP 16CSBGA
MCP4651T-103E/ST
IC DGT POT 10KOHM 257TAP 14TSSOP
X9511WSZT7A
IC DGTL POT 10KOHM 32TAP 8SOIC
MCP42100T-I/ST
IC DGT POT 100KOHM 256TP 14TSSOP
ISL23415TFUZ-T7A
IC DGT POT 100KOHM 256TAP 10MSOP

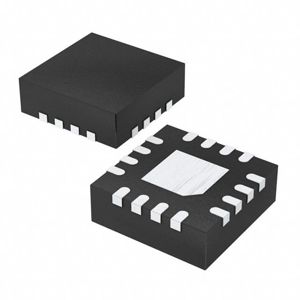

MCP4641T-502E/ML
IC DGT POT 5KOHM 129TAP 16QFN
CAT5111ZI10
IC DGTL POT 10KOHM 100TAP 8MSOP

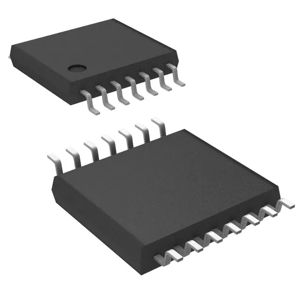

AD5241BRUZ10-R7
