Interface - I/O Expanders

Interface - I/O Expanders: Classification and Selection Guide

Definition:
Interface - I/O Expanders are specialized integrated circuits (ICs) designed to extend the input/output (I/O) capabilities of microcontrollers, processors, or other host devices. They enable efficient management of multiple peripheral devices by providing additional GPIO (General-Purpose Input/Output) pins, reducing the need for complex circuitry or larger controllers. These ICs are widely used in embedded systems, industrial automation, consumer electronics, and IoT applications where scalable I/O solutions are critical.

Types of I/O Expanders:
1. Serial Interface Expanders: Utilize protocols like I C, SPI, or UART for communication, offering compact designs and low pin-count requirements.
2. Parallel Interface Expanders: Provide high-speed data transfer via parallel buses, ideal for applications demanding rapid I/O switching.
3. Programmable Expanders: Feature configurable I/O directions (input/output) and pull-up/pull-down resistors, allowing dynamic adaptation to system needs.
4. LED Driver Expanders: Optimized for driving LED arrays or displays with integrated current control and dimming functionality.

Purchasing Recommendations:
- Protocol Compatibility: Ensure the expander matches the host s communication interface (e.g., I C, SPI).
- Voltage Levels: Verify operating voltage (e.g., 3.3V, 5V) aligns with the system s power supply.
- I/O Count: Select based on the required number of GPIO pins (e.g., 8-bit, 16-bit).
- Package Type: Consider space constraints (e.g., SOIC, QFN, TSSOP) for PCB layout efficiency.
- Additional Features: Look for built-in interrupts, ESD protection, or daisy-chaining support for enhanced functionality.

By integrating I/O Expanders, designers can optimize system scalability, reduce BOM costs, and simplify hardware layouts making them indispensable in modern electronics.

Note: For technical specifications, refer to datasheets or consult manufacturers like Texas Instruments, NXP, or Microchip.

IC I/O EXPANDER I2C 4B 8SOIC

Shopping cart

Interface - I/O Expanders

Filter and sort

Categories

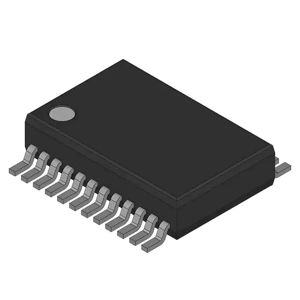

MAX7324AEG

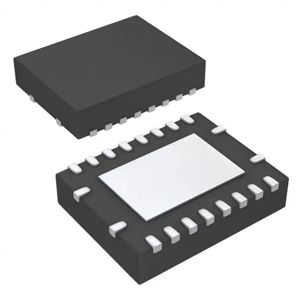

PCF8574ARGYR

PCAL9539APW,118

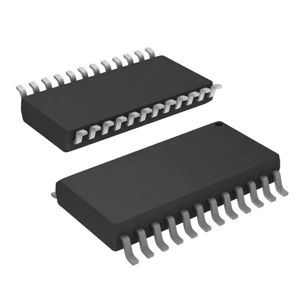

PCA9535EDWR2G

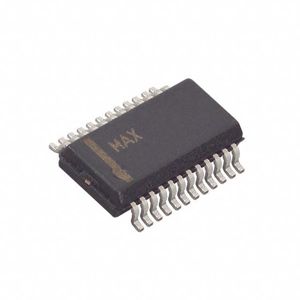

MAX7313AEG+

PCA9535CHF,118

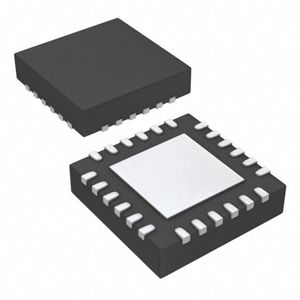

PCA9671BS,118

PCA9555BSHP

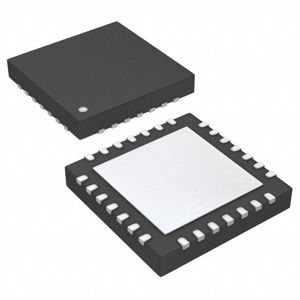

MCP23S17T-E/ML

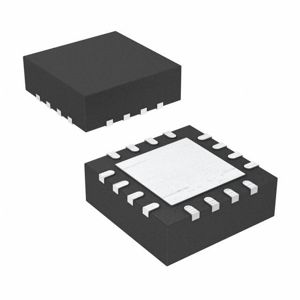

PCA9534BS,118

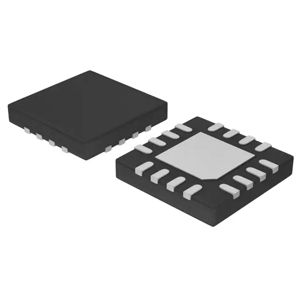

CAT9554AHV4I-GT2

PCA9555PW,112

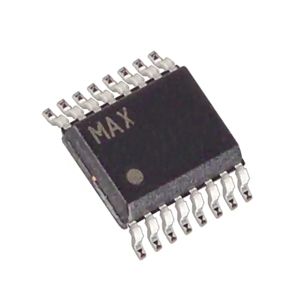

MAX7315AEE+T

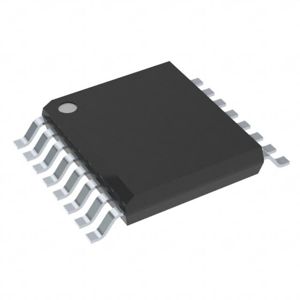

TCA9554DBR

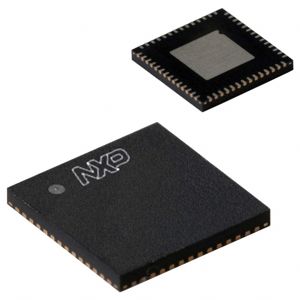

PCA9698BS,118

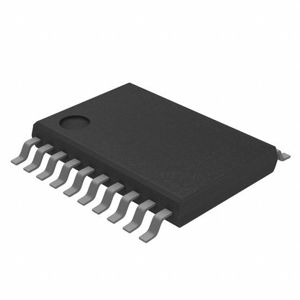

PCF8574APWR

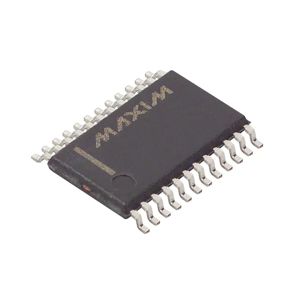

MAX7318AUG+T

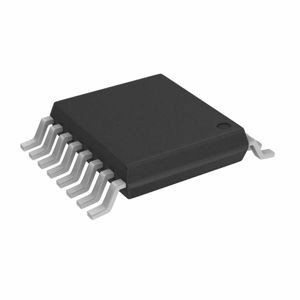

PCA9554PW/DG,118

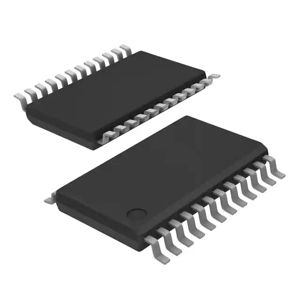

PCA9535CPW,112

PCA9536DG4
