Linear - Analog Multipliers, Dividers
Linear - Analog Multipliers, Dividers: Precision Signal Processing Components
Definition & Functionality
Linear - Analog Multipliers and Dividers are specialized integrated circuits (ICs) designed to perform real-time mathematical operations (multiplication/division) on analog voltage signals. These components are essential for nonlinear signal processing in applications requiring precise amplitude modulation, frequency mixing, automatic gain control (AGC), or true RMS conversion. They operate within continuous voltage ranges, offering high accuracy and low temperature drift for critical analog systems.
Types & Variations
This product category includes:
1. Analog Multipliers Four-quadrant (handling positive/negative inputs) and two-quadrant designs, with bandwidths ranging from DC to GHz levels.
2. Analog Dividers Often paired with multipliers for ratio-based computations, featuring logarithmic or feedforward architectures.
3. Multiplier-Divider Hybrids Configurable ICs combining both functions, optimized for compact PCB layouts.
4. Programmable Gain ICs Integrate multipliers/dividers with op-amps for dynamic signal scaling.
Selection Guidance
When sourcing Linear Multipliers/Dividers, consider:
- Bandwidth & Linearity: Match IC bandwidth (>2x signal frequency) and linearity error (<0.1%) to application needs (e.g., RF vs. audio).
- Quadrant Operation: Four-quadrant multipliers (e.g., AD633) suit AC signal processing; two-quadrant types may suffice for unipolar inputs.
- Power Supply: Verify compatibility with system voltages (e.g., 15V industrial vs. +5V portable devices).
- Package & Integration: SOIC packages save space; some ICs embed auxiliary op-amps for reduced external components.
Why This Category Matters
These ICs enable complex analog computations without digital latency, making them irreplaceable in radar systems, analog computing, and instrumentation. Partner with trusted distributors (e.g., Analog Devices, Texas Instruments) to ensure authentic, datasheet-backed performance. For prototyping, evaluate evaluation modules (EVMs) to validate thermal and noise behavior.
Filter and sort
Categories

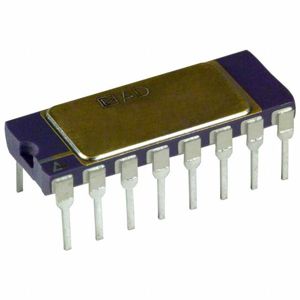

AD539KD
IC MULT/DIV DUAL CH LIN 16-CDIP
AD834JN
IC MULTIPLIER 4-QUADRANT 8-DIP

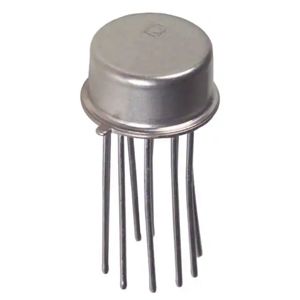

AD632BHZ
IC MULTIPLIER TRIMMED TO100-10
AD534LD
IC PREC MULTIPLIER 14-CDIP
AD534SH
IC PREC MULTIPLIER TO-100-10
MPY634KU/1K
IC ANALOG MULTIPLIER 16-SOIC
4213SM
IC MULTIPLIER-DIVIDER TO-100-10
AD534JH
IC MULT DIV LASER TRIM TO100-10
AD633JNZ
IC ANALOG MULTIPLIER 8-DIP

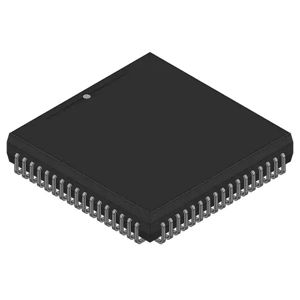

ADSP-1009AKG
12 X 12 MULTIPLIER/ACCUMULATOR
MPY534LH
ANALOG MULTIPLIER OR DIVIDER
AD534SD/883B
IC MULTIPLIER/DIVIDER 14CDIP
AD834JRZ-R7
IC MULTIPLIER 4-QUADRANT 8-SOIC
ADSP-1080AKD
8 X 8 CMOS MULTIPLIER
MPY534KH
ANALOG MULTIPLIER OR DIVIDER
ADSP-1008AJN
8 X 8 CMOS MULTIPLIER
AD835AR
IC MULTIPLIER 4-QUADRANT 8-SOIC
ADSP-1081AKN
8 X 8 CMOS MULTIPLIER
AD834JNZ
IC MULTIPLIER QUADRANT 8DIP

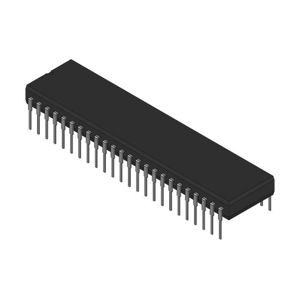

ADSP-1008AJD
8 X 8 CMOS MULTIPLIER
