Logic - Latches: Essential Components for Digital Circuit Design
Definition:
Logic Latches are fundamental digital integrated circuits (ICs) designed to store and maintain a binary state (0 or 1) in electronic systems. As a subcategory of Logic under Integrated Circuits (ICs), latches serve as basic memory elements, capturing and holding data until explicitly changed. They are widely used in sequential logic circuits, enabling temporary data retention for synchronization, control, and state management in complex systems.
Types of Logic Latches:
1. SR Latches (Set-Reset): The simplest type, using two inputs (Set and Reset) to control the output state.
2. D Latches (Data): Features a single data input (D) and a control signal (Enable) to capture and hold the input value.
3. Transparent Latches: Outputs follow inputs while enabled, "latching" the value when disabled.
4. Gated Latches: Include an additional enable gate for synchronized operation in clocked systems.
Purchasing Recommendations:
- Application Alignment: Choose SR latches for basic control circuits, D latches for data storage, and gated variants for clock-dependent designs.
- Performance Metrics: Prioritize propagation delay, power consumption, and voltage compatibility (e.g., 3.3V vs. 5V) based on system requirements.
- Packaging: Select surface-mount (SMD) or through-hole packages (DIP) per assembly constraints.
- Reliability: Opt for industrial-grade latches for harsh environments and automotive/medical certifications (AEC-Q100, ISO 13485) if needed.
Ideal for registers, buffer storage, and real-time control, Logic Latches ensure robust digital system performance. Evaluate datasheets and supplier credibility to balance cost and functionality.
Filter and sort
Categories

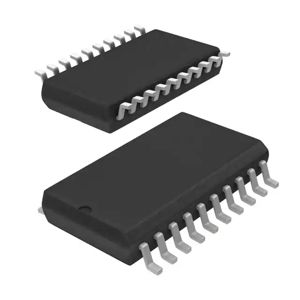

MC74HC373ADWG
IC TRANSP LATCH OCT 3ST 20-SOIC
74LVT162373DGG,118
IC 16BIT TRANSP LATCH 48TSSOP
SN74AC373NSR
IC OCT D-TYP TRANSP LATCH 20SO
DM74ALS580AN
BUS DRIVER
SN74LVC373ANSR
IC OCT D TRANSP LATCH 3ST 20SO
SN74ABT843DWR
IC 9BIT BUS-INTFC D 3ST 24-SOIC
SN74HC573AQPWRG4Q1
IC D-TYPE LATCH SGL 3-ST 20TSSOP

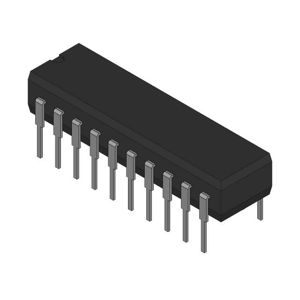

MM74HCT373N
BUS DRIVER
CY74FCT16841CTPVCT
IC 20BIT BUS-INT D LATCH 56SSOP
CD74HCT573M96
IC OCT LATCH TRANSP 3/ST 20-SOIC
MC10H173FN
D LATCH, LOW LEVEL TRIGGERED
74ACT573SC
BUS DRIVER
SN74ABT573ANSR
IC D-TYPE LATCH SGL 3-ST 20SO
74AUP1G373GW,125
IC LATCH D-TYPE 6TSSOP
SN74ALVCH162373GR
IC 16BIT TRANSP D-LATCH 48-TSSOP
SN74HCT573N
IC OCT D TRANSP LATCH 20-DIP
CY74FCT16373ETPACT
BUS DRIVER, FCT SERIES, 2 FUNC,
MC10H175MG
IC LATCH QUINT TYPE D 16SOEIAJ
74ALVCH162373PAG8
IC XPARENT LATCH 16BIT D 48TSSOP

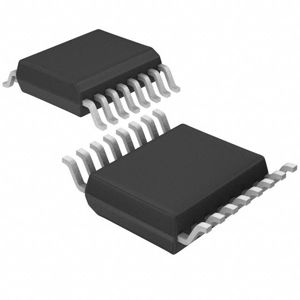

MC74HCT259ADTR2G
8-BIT ADDRESSABLE LATCH
