PMIC - Gate Drivers
PMIC - Gate Drivers: Power Management Integrated Circuits for Efficient Switching Control
Definition:
PMIC - Gate Drivers are specialized Power Management Integrated Circuits (ICs) designed to control and amplify low-power input signals to efficiently drive high-power semiconductor devices, such as MOSFETs, IGBTs, and SiC/GaN transistors. These ICs act as critical intermediaries between control circuits (e.g., microcontrollers) and power switches, ensuring precise timing, voltage/current amplification, and protection features to optimize system performance in high-frequency switching applications.
Types of Gate Drivers:
1. MOSFET/IGBT Gate Drivers: Standard drivers for silicon-based power switches, offering adjustable drive strength and fault protection.
2. GaN/SiC Gate Drivers: High-speed drivers optimized for wide-bandgap semiconductors, enabling ultra-fast switching with minimal losses.
3. Isolated Gate Drivers: Feature galvanic isolation (e.g., optical or magnetic) for high-voltage safety in motor drives or industrial systems.
4. Half/Full-Bridge Drivers: Integrate multiple channels to control H-bridge configurations in inverters or BLDC motors.
5. Digital Programmable Drivers: Allow parameter tuning (e.g., slew rate, dead time) via software for flexible power designs.
Purchasing Recommendations:
- Voltage/Current Ratings: Match driver output voltage (e.g., 5V 20V) and peak current (e.g., 2A 10A) to your power switch requirements.
- Switching Speed: For high-frequency apps (e.g., DC-DC converters), select drivers with <50ns propagation delays.
- Protection Features: Prioritize built-in safeguards like UVLO (Undervoltage Lockout), desaturation detection, and thermal shutdown.
- Isolation Needs: In high-voltage systems (e.g., EV chargers), opt for reinforced isolation (e.g., 5kVrms).
- Package & Integration: Compact packages (e.g., SOIC, QFN) save space, while integrated bootstrap diodes simplify PCB design.
Gate drivers are pivotal in energy-efficient power systems choose wisely to balance performance, reliability, and cost.
Filter and sort
Categories
NCD5701CDR2G
IC GATE DRVR HI/LOW SIDE 8SOIC
TC4428AVMF
IC GATE DRVR LOW-SIDE 8DFN

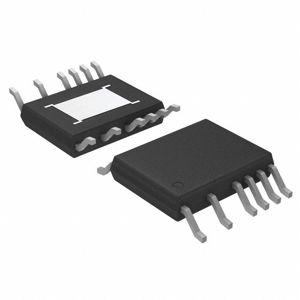

LTC7000JMSE-1#TRPBF
FAST 150V PROTECTED HI SIDE NMOS
LT8672HDDB#TRMPBF
IC GATE DRVR HIGH-SIDE 10DFN
IR21814STRPBF
IC GATE DRVR HALF-BRIDGE 14SOIC
MCP14A0451T-E/SN
IC GATE DRVR LOW-SIDE 8SOIC
IRS2184PBF
IC GATE DRVR HALF-BRIDGE 8DIP
MAX4429CSA
6A SINGLE MOSFET DRIVER
NCP5359MNR2G
IC GATE DRVR HALF-BRIDGE 10DFN
R2J20656ANP#G0
HALF BRIDGE BASED MOSFET DRIVER
FAN3229CMPX
FULL BRIDGE BASED PERIPHERAL DRI
TC426EOA713
IC GATE DRVR LOW-SIDE 8SOIC
UCC27511DBVT
IC GATE DRVR LOW-SIDE SOT23-6
MIC4223YM
IC GATE DRVR LOW-SIDE 8SOIC
2SC0108T2F1-17
IC GATE DRVR HI/LOW SIDE MODULE
MIC4423ZWM-TR
IC GATE DRVR LOW-SIDE 16SOIC
TC4627COE713
IC GATE DRVR HI/LOW SIDE 16SOIC
TC4423VOE
IC GATE DRVR LOW-SIDE 16SOIC
MIC4425CWM
LOW-SIDE MOSFET DRIVER
TC1413EPA
IC GATE DRVR LOW-SIDE 8DIP
