PMIC - Voltage Reference
PMIC - Voltage Reference: Precision Power Management Components
Definition & Functionality
PMIC - Voltage References are specialized integrated circuits (ICs) within the Power Management IC (PMIC) category, designed to generate a stable, precise DC voltage regardless of variations in input voltage, load conditions, or temperature. These components serve as critical "voltage standards" for analog and mixed-signal circuits, ensuring accuracy in applications like data converters, sensors, and power supplies.
Types & Key Variations
1. Series Voltage References: Provide a fixed output with low dropout voltage, ideal for battery-powered devices.
2. Shunt Voltage References: Operate like precision Zener diodes, suited for high-accuracy, low-current systems.
3. Adjustable Voltage References: Allow output customization via external resistors, offering design flexibility.
4. Bandgap References: Leverage semiconductor bandgap properties for ultra-stable outputs across temperature ranges.
5. Buried Zener References: Deliver the highest precision (e.g., 0.04%) for metrology or medical equipment.
Selection Guidelines
- Accuracy & Tolerance: Prioritize < 1% tolerance for precision systems (e.g., ADCs).
- Temperature Coefficient (TempCo): Choose <10ppm/ C for environments with thermal fluctuations.
- Noise Performance: Opt for low-noise (<10 Vpp) designs in sensitive analog circuits.
- Package & Power: Match SOT-23 (portable) or SOIC (industrial) packages to your PCB constraints.
- Long-Term Stability: Critical for automotive/industrial apps; verify datasheet aging specs (e.g., 50ppm/1000hr).
Why It Matters
Voltage References are the unsung heroes of reliable electronics, minimizing drift and noise in power rails. From IoT sensor calibration to aerospace systems, selecting the right type ensures optimal performance and longevity. Partner with trusted suppliers (e.g., Texas Instruments, Analog Devices) to source certified components with traceable quality data.
Filter and sort
Categories
MAX6063AEUR+T
IC VREF SERIES 0.2% SOT23-3
LM4040BIM3-2.5
IC VREF SHUNT 0.2% SOT23-3
TL1431CL3T
IC VREF SHUNT ADJ 0.4% SOT23-3
LM4128CMFX-2.5/NOPB
IC VREF SERIES 0.5% SOT23-5
LM4040AIM3-5.0-T
PRECISION MICROPOWER SHUNT VREF
LT1461BIS8-3#PBF
IC VREF SERIES 0.06% 8SOIC
LT6657BHMS8-1.25#TRPBF
IC VREF SERIES 0.1% 8MSOP
LM4040DIM3-2.5
IC VREF SHUNT 1% SOT23-3
MAX6161AESA+T
IC VREF SERIES 0.16% 8SOIC
ZXRE330AV-A
IC VREF SHUNT 0.5% TO92

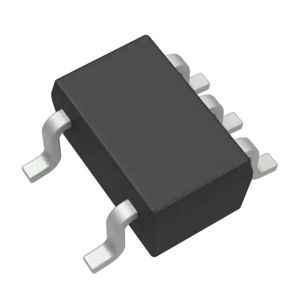

LM4041A12IDCKR
IC VREF SHUNT 0.1% SC70-5
TL431ACDR2
IC VREF SHUNT ADJ 1% 8SOIC
LM285M-2.5/NOPB
IC VREF SHUNT 1.5% 8SOIC
ADR280AKSZ-REEL7
IC VREF SERIES 0.4% SC70-3
ADR525BKSZ-REEL7
IC VREF SHUNT 0.2% SC70-3
TL4050B50IDBZR
IC VREF SHUNT 0.2% SOT23-3
MAX875BCPA
IC VREF SERIES 0.06% 8DIP
LT6660HCDC-3.3#TRMPBF
IC VREF SERIES 0.2% 3DFN

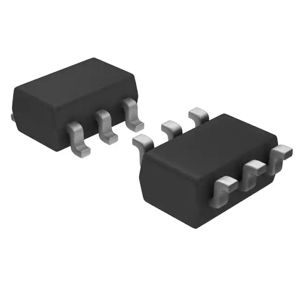

REF3450QDBVRQ1
IC VREF SERIES 0.05% SOT23-6
TL431BCDG
IC VREF SHUNT ADJ 0.4% 8SOIC
