Definition:
DC DC Switching Regulators are a critical subset of Power Management Integrated Circuits (PMICs) designed to efficiently convert and regulate DC voltage levels. Unlike linear regulators, these devices use high-frequency switching techniques to minimize power loss, making them ideal for applications requiring high efficiency, compact size, and thermal performance. They are widely used in consumer electronics, industrial systems, automotive electronics, and renewable energy solutions.
Types of DC DC Switching Regulators:
1. Buck (Step-Down) Converters: Reduce input voltage to a lower, stable output voltage.
2. Boost (Step-Up) Converters: Increase input voltage to a higher output level.
3. Buck-Boost Converters: Provide both step-down and step-up capabilities for flexible voltage regulation.
4. Isolated Converters: Incorporate galvanic isolation for safety in high-voltage or noise-sensitive environments.
5. Multi-Output Regulators: Deliver multiple regulated voltages from a single input source.
Purchasing Recommendations:
- Efficiency & Load Current: Match the regulator s efficiency (e.g., 90%+) and current rating to your load requirements.
- Input/Output Voltage Range: Ensure compatibility with your system s voltage levels.
- Package & Size: Select compact (e.g., QFN, SOP) or rugged packages (e.g., TO-220) based on space and thermal constraints.
- Features: Prioritize key functionalities like soft-start, synchronization, or protection circuits (OVP, OCP).
- Certifications: For automotive or industrial use, verify AEC-Q100 or ISO 16464 compliance.
Optimize power delivery with the right DC DC Switching Regulator balancing performance, cost, and reliability for your application.
Filter and sort
Categories
NB671LAGQ-Z
IC REG BUCK ADJUSTABLE 6A 16QFN

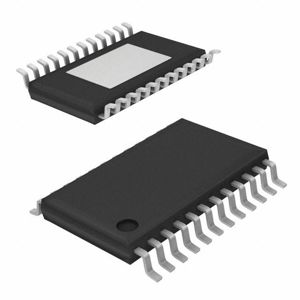

LT3641HFE#PBF
IC REG BUCK ADJ 1.3/1.1A 28TSSOP
ISL91107IRTAZ
IC REG BCK BST ADJ 2A 20TQFN

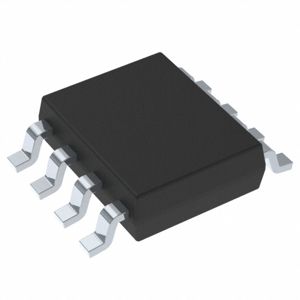

LM22671MRE-ADJ/NOPB
IC REG BUCK ADJ 500MA 8SOPWR
XC9141E49DMR-G
0.8A SYNCHRONOUS STEP-UP DC/DC C
LTC3311HV#TRMPBF
10A LOW VLTG SYNCH STEP-DWN SILN
XC9235C16DMR-G
600MA SYNCHRONOUS STEP-DOWN DCDC
PAM2319AYAA
IC REG BUCK ADJ 1A/2A DL 12WDFN
MC33167D2TR4G
IC REG BUCK BST ADJ 5.5A D2PAK-5
LM3679UR-1.8/NOPB
IC REG BUCK 1.8V 350MA 5DSBGA
UCD74106RGMR
IC REG BUCK 6A 13VQFN
TPS61235PRWLR
IC REG BOOST 5.1V 6.5A 9VQFN
XC9237B2DDMR-G
600MA SYNCHRONOUS STEP-DOWN DCDC
LMR33620CQ5RNXRQ1
IC REG BUCK 5V 2A 12VQFN
XC9235A2ECMR-G
600MA SYNCHRONOUS STEP-DOWN DCDC
LM2853MH-1.5/NOPB
IC REG BUCK 1.5V 3A 14HTSSOP

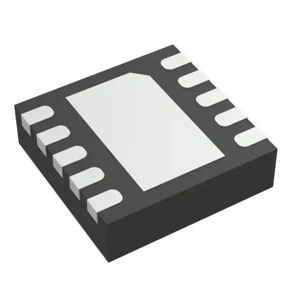

TPS54328DRCT
IC REG BUCK ADJUSTABLE 3A 10VSON
ISL9111AEH33Z-T7A
IC REG BOOST 3.3V 800MA SOT23-6
LM2596S-5.0/NOPB
IC REG BUCK 5V 3A TO263-5
LM2655MTC-3.3/NOPB
IC REG BUCK 3.3V 2.5A 16TSSOP
