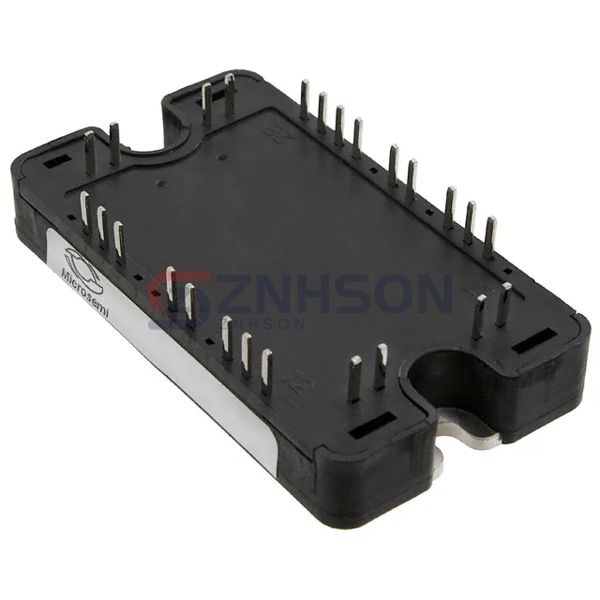

APTGF30H60T3G
Microchip Technology
Microchip Technology
IGBT MODULE 600V 42A 140W SP3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's APTGF30H60T3G represents the cutting edge in Transistors - IGBTs - Modules technology. This discrete semiconductor product delivers superior power control with its optimized gate-drive characteristics and short-circuit ruggedness. The module's innovative design features include an advanced NPT trench construction and low inductance package. Primary applications include traction systems, induction heating, and high-frequency power supplies. A typical use case would be implementing the APTGF30H60T3G in industrial servo drives or medium-voltage frequency converters. Trust Microchip Technology's expertise in IGBT modules for energy-efficient power management solutions.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Full Bridge Inverter
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 42 A
- Power - Max: 140 W
- Vce(on) (Max) @ Vge, Ic: 2.45V @ 15V, 30A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 1.35 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP3
- Supplier Device Package: SP3
Related Products
Microsemi Corporation
APTGF100A120T3WG
Infineon Technologies
FF225R17ME4B11BOSA1
Infineon Technologies
DDB6U100N16RRBOSA1
Vishay General Semiconductor - Diodes Division
VS-GT400TD60S
Vishay General Semiconductor - Diodes Division
VS-GB55LA120UX
Vishay General Semiconductor - Diodes Division
VS-GB100DA60UP
Infineon Technologies
6MS10017E41W36460BOSA1
IXYS
IXGN60N60
Microsemi Corporation

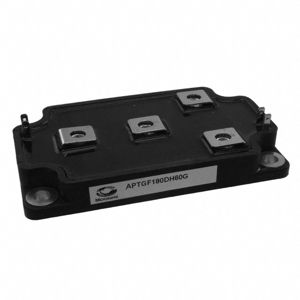

APTGF180DH60G
