DDB6U134N16RRBOSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1600V 70A 500W
$0.00
Available to order
Reference Price (USD)
1+
$78.29000
10+
$74.24700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DDB6U134N16RRBOSA1 from Infineon Technologies is a high-performance IGBT module designed for power electronics applications. As part of the Discrete Semiconductor Products category, this transistor module offers exceptional efficiency and reliability. Key features include low saturation voltage, high-speed switching, and robust thermal performance. These IGBT modules are widely used in industrial motor drives, renewable energy systems, and electric vehicle powertrains. For example, the DDB6U134N16RRBOSA1 is ideal for solar inverters, welding equipment, and UPS systems where high power handling is required. Choose Infineon Technologies's advanced IGBT technology for your most demanding power conversion challenges.
Specifications
- Product Status: Discontinued at Digi-Key
- IGBT Type: NPT
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1600 V
- Current - Collector (Ic) (Max): 70 A
- Power - Max: 500 W
- Vce(on) (Max) @ Vge, Ic: 2.75V @ 15V, 70A
- Current - Collector Cutoff (Max): 500 µA
- Input Capacitance (Cies) @ Vce: 5.1 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
Related Products
Powerex Inc.
CM400DY-12NF
Vishay General Semiconductor - Diodes Division
VS-GB90DA120U
Microsemi Corporation
APTGF150DU120TG
Littelfuse Inc.
MG12105S-BA1MM
Microchip Technology
APTGF350A60G
Infineon Technologies
2PS18012E44G38553NOSA1
Infineon Technologies
FS50R06YL4BOMA1
Microsemi Corporation

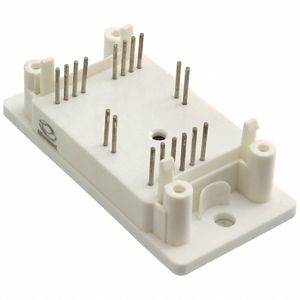

APTGT200A602G
Microchip Technology

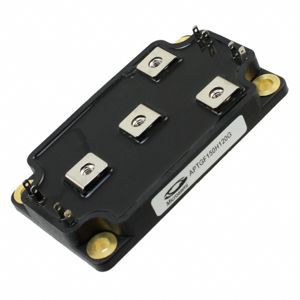

APTGF150H120G
