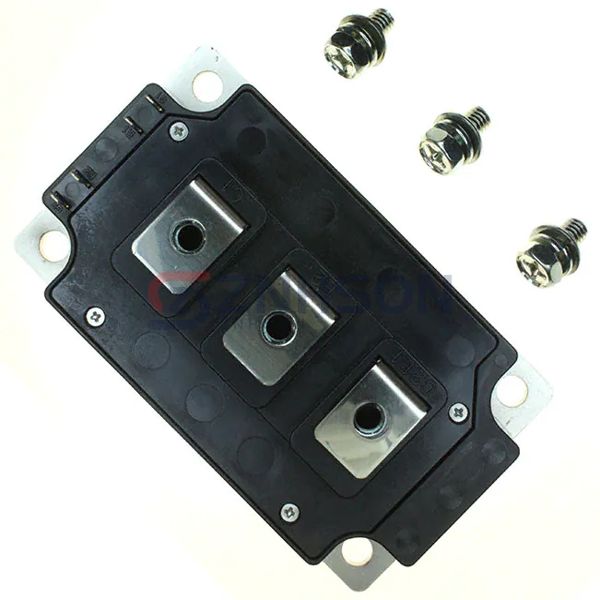

CM400DY-12NF
Powerex Inc.
Powerex Inc.
IGBT MOD 600V 400A 1130W
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Powerex Inc.'s CM400DY-12NF represents the cutting edge in Transistors - IGBTs - Modules technology. This discrete semiconductor product delivers superior power control with its optimized gate-drive characteristics and short-circuit ruggedness. The module's innovative design features include an advanced NPT trench construction and low inductance package. Primary applications include traction systems, induction heating, and high-frequency power supplies. A typical use case would be implementing the CM400DY-12NF in industrial servo drives or medium-voltage frequency converters. Trust Powerex Inc.'s expertise in IGBT modules for energy-efficient power management solutions.
Specifications
- Product Status: Discontinued at Digi-Key
- IGBT Type: -
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 400 A
- Power - Max: 1130 W
- Vce(on) (Max) @ Vge, Ic: 2.2V @ 15V, 400A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 60 nF @ 10 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
