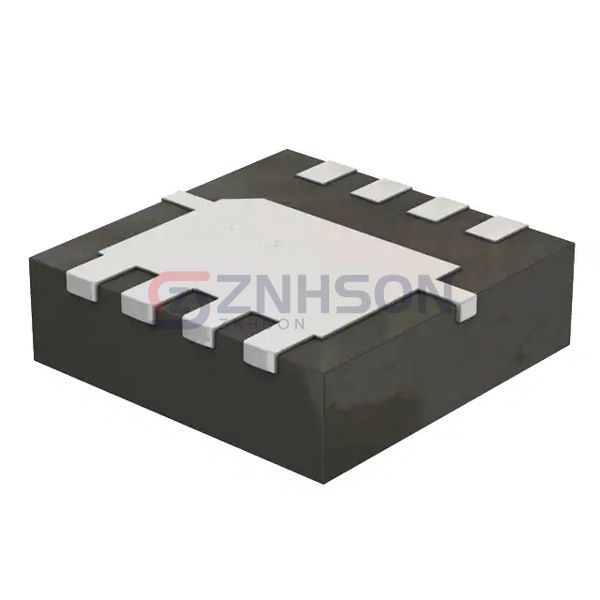

CSD25404Q3
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 104A 8VSON
$1.21
Available to order
Reference Price (USD)
1+
$1.21000
500+
$1.1979
1000+
$1.1858
1500+
$1.1737
2000+
$1.1616
2500+
$1.1495
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the CSD25404Q3 by Texas Instruments, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the CSD25404Q3 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 104A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 6.5mOhm @ 10A, 4.5V
- Vgs(th) (Max) @ Id: 1.15V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 14.1 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 2120 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 2.8W (Ta), 96W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (3x3.15)
- Package / Case: 8-PowerVDFN
