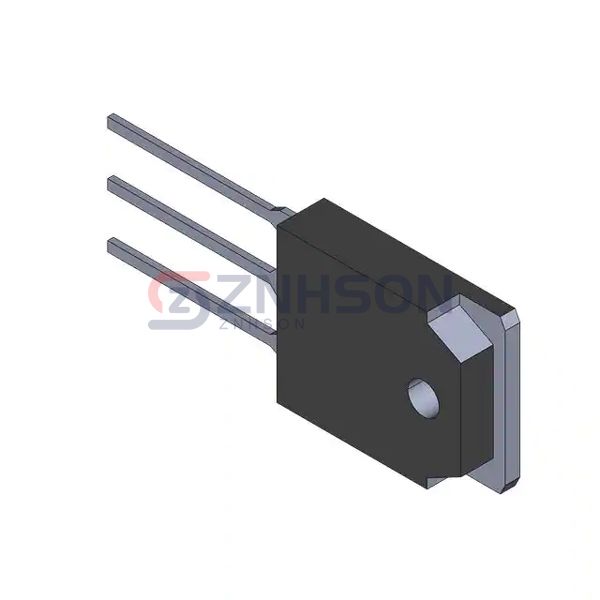

FGA30T65SHD
Fairchild Semiconductor
Fairchild Semiconductor
INSULATED GATE BIPOLAR TRANSISTO
$0.00
Available to order
Reference Price (USD)
450+
$2.80484
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGA30T65SHD Single IGBT transistor by Fairchild Semiconductor is a versatile component in the Discrete Semiconductor Products range. Designed for efficiency and durability, it features high voltage tolerance and minimal power dissipation. Ideal for use in automotive electronics, HVAC systems, and power tools, the FGA30T65SHD provides consistent performance in varied conditions. Rely on Fairchild Semiconductor's innovation to power your next-generation devices with this high-quality IGBT.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 60 A
- Current - Collector Pulsed (Icm): 90 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 30A
- Power - Max: 238 W
- Switching Energy: 598µJ (on), 167µJ (off)
- Input Type: Standard
- Gate Charge: 54.7 nC
- Td (on/off) @ 25°C: 14.4ns/52.8ns
- Test Condition: 400V, 30A, 6Ohm, 15V
- Reverse Recovery Time (trr): 31.8 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3PN
Related Products
Renesas Electronics America Inc
RJP4301APP-M0#T2
Infineon Technologies
IRGP6630DPBF
onsemi
FGB30N6S2DT
IXYS
IXGT32N60C
STMicroelectronics
STGWS38IH130D
onsemi
HGTG30N60B3D
Microsemi Corporation
APT44GA60BD30C
onsemi
SGS6N60UFTU
IXYS

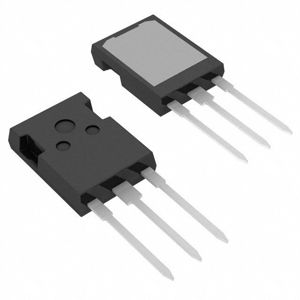

IXGX72N60A3H1
