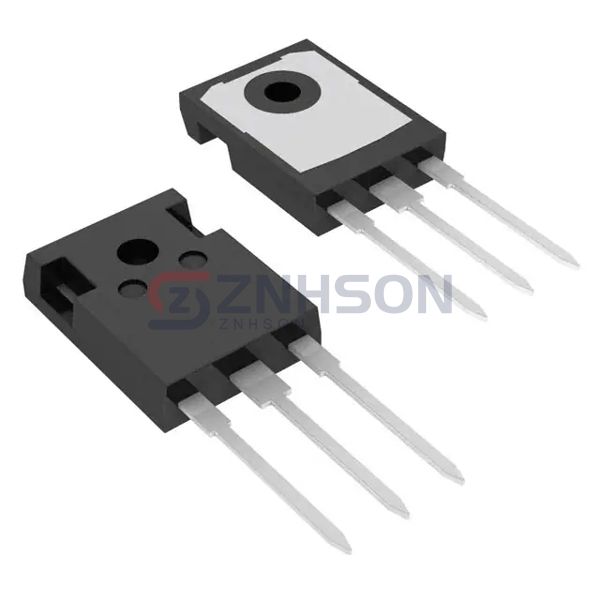

FGH40N120ANTU
onsemi
onsemi
IGBT NPT 1200V 64A TO247-3
$0.00
Available to order
Reference Price (USD)
1+
$7.67000
10+
$6.94800
450+
$5.54982
900+
$5.08362
1,350+
$4.46205
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGH40N120ANTU Single IGBT transistor by onsemi is a versatile component in the Discrete Semiconductor Products range. Designed for efficiency and durability, it features high voltage tolerance and minimal power dissipation. Ideal for use in automotive electronics, HVAC systems, and power tools, the FGH40N120ANTU provides consistent performance in varied conditions. Rely on onsemi's innovation to power your next-generation devices with this high-quality IGBT.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 64 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 3.2V @ 15V, 40A
- Power - Max: 417 W
- Switching Energy: 2.3mJ (on), 1.1mJ (off)
- Input Type: Standard
- Gate Charge: 220 nC
- Td (on/off) @ 25°C: 15ns/110ns
- Test Condition: 600V, 40A, 5Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
