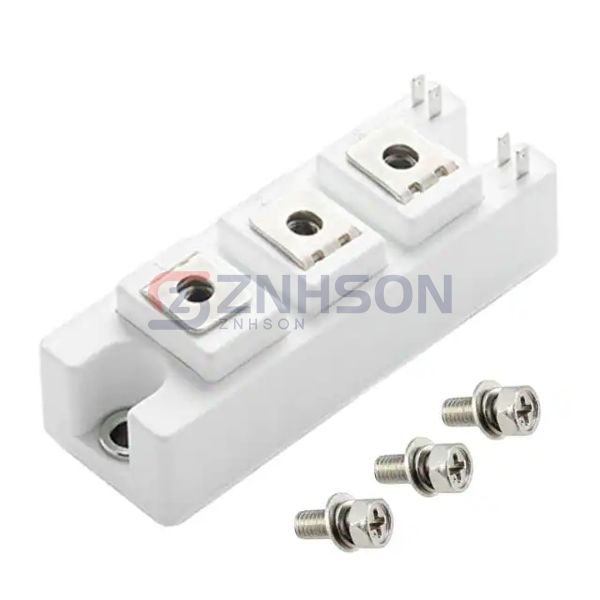

MG12105S-BA1MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MODULE 1200V 150A 690W S3
$0.00
Available to order
Reference Price (USD)
1+
$81.55000
10+
$76.96100
25+
$73.75400
100+
$70.08930
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MG12105S-BA1MM by Littelfuse Inc. redefines performance in the IGBT modules segment of Discrete Semiconductor Products. Featuring sixth-generation field-stop technology, this power transistor delivers optimal switching characteristics and short-circuit withstand capability. Key attributes include: 175 C maximum junction temperature, low EMI generation, and integrated current sensing. Industrial applications span from elevator drives and CNC machinery to large-scale HVAC systems. A practical implementation would be using the MG12105S-BA1MM in high-efficiency servo controllers for manufacturing automation. Littelfuse Inc. combines innovation with quality in every MG12105S-BA1MM module.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 150 A
- Power - Max: 690 W
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 100A (Typ)
- Current - Collector Cutoff (Max): 500 µA
- Input Capacitance (Cies) @ Vce: 7.43 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: S-3 Module
- Supplier Device Package: S3
