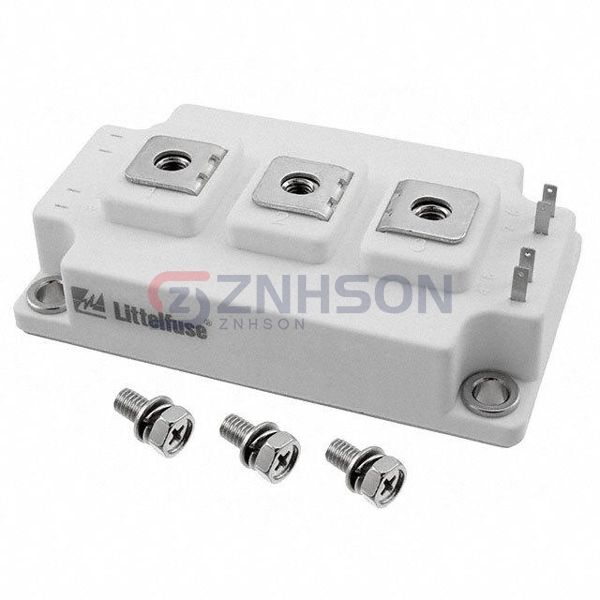

MG12200D-BA1MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MODULE 1200V 300A 1400W D3
$0.00
Available to order
Reference Price (USD)
1+
$124.68000
10+
$116.53100
25+
$112.45640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the power of Littelfuse Inc.'s MG12200D-BA1MM, a premium IGBT module in the Transistors - IGBTs - Modules classification. This discrete semiconductor solution offers ultra-low conduction losses and avalanche ruggedness for harsh environments. The module's unique selling points include: VCE(sat) negative temperature coefficient, aluminum nitride substrate, and press-pack technology. Major application sectors include rail transportation, marine propulsion, and aerospace power systems. The MG12200D-BA1MM performs exceptionally well in high-voltage DC transmission and pulsed power applications. With Littelfuse Inc.'s MG12200D-BA1MM, you get unmatched reliability in power electronics designs.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 300 A
- Power - Max: 1400 W
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 200A (Typ)
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 14.9 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: D3
