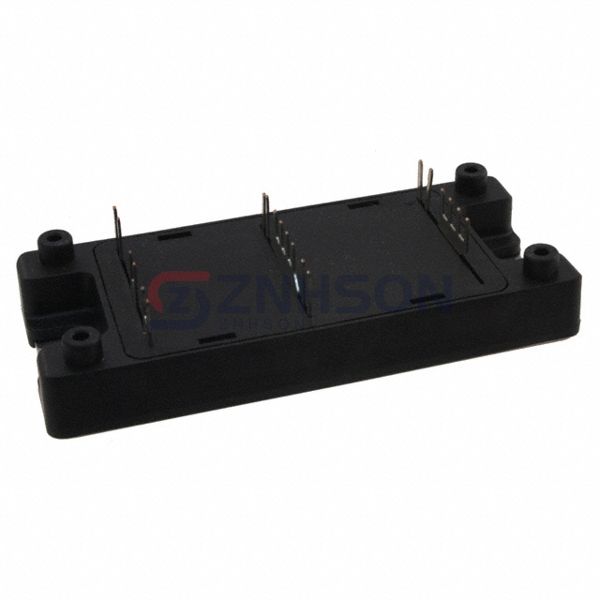

APTGF150DU120TG
Microsemi Corporation
Microsemi Corporation
IGBT MODULE 1200V 200A 961W SP4
$0.00
Available to order
Reference Price (USD)
1+
$89.25000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the power of Microsemi Corporation's APTGF150DU120TG, a premium IGBT module in the Transistors - IGBTs - Modules classification. This discrete semiconductor solution offers ultra-low conduction losses and avalanche ruggedness for harsh environments. The module's unique selling points include: VCE(sat) negative temperature coefficient, aluminum nitride substrate, and press-pack technology. Major application sectors include rail transportation, marine propulsion, and aerospace power systems. The APTGF150DU120TG performs exceptionally well in high-voltage DC transmission and pulsed power applications. With Microsemi Corporation's APTGF150DU120TG, you get unmatched reliability in power electronics designs.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Dual, Common Source
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 200 A
- Power - Max: 961 W
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 150A
- Current - Collector Cutoff (Max): 350 µA
- Input Capacitance (Cies) @ Vce: 10.2 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP4
- Supplier Device Package: SP4
