NGB8202ANTF4G
Littelfuse Inc.
Littelfuse Inc.
IGBT 440V 20A 150W D2PAK
$0.00
Available to order
Reference Price (USD)
700+
$0.91876
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NGB8202ANTF4G from Littelfuse Inc. is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose NGB8202ANTF4G for superior performance in your next power electronics project.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 440 V
- Current - Collector (Ic) (Max): 20 A
- Current - Collector Pulsed (Icm): 50 A
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 4.5V, 20A
- Power - Max: 150 W
- Switching Energy: -
- Input Type: Logic
- Gate Charge: -
- Td (on/off) @ 25°C: -/5µs
- Test Condition: 300V, 9A, 1kOhm, 5V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount

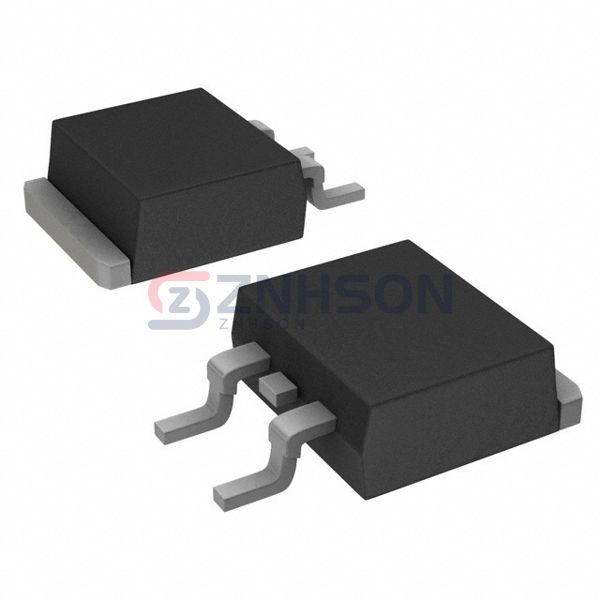

- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263 (D²Pak)
