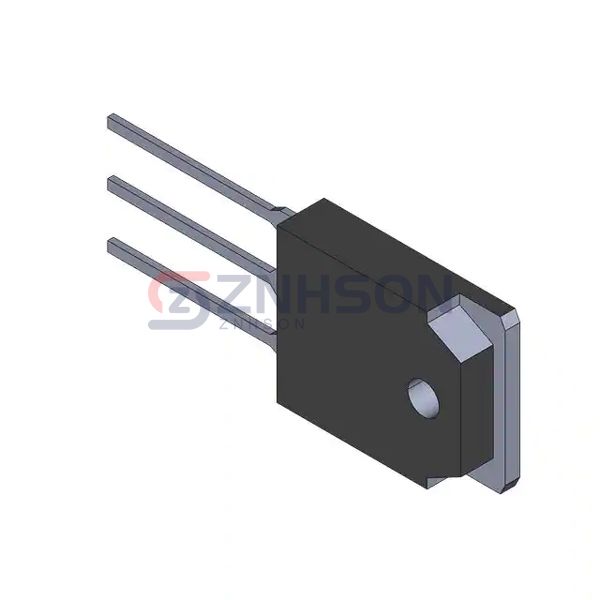

FGA15N120ANTDTU
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 30A, 1200V, N-CHANNEL
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the FGA15N120ANTDTU Single IGBT transistor from Fairchild Semiconductor. This Discrete Semiconductor Product offers exceptional performance with low switching losses and high current capacity. Suitable for applications such as medical equipment, aerospace systems, and consumer electronics, the FGA15N120ANTDTU ensures precision and reliability. Fairchild Semiconductor's cutting-edge technology guarantees a component that meets the highest industry standards. Choose FGA15N120ANTDTU for efficient and durable power solutions.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT and Trench
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 30 A
- Current - Collector Pulsed (Icm): 45 A
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 15A
- Power - Max: 186 W
- Switching Energy: 3mJ (on), 600µJ (off)
- Input Type: Standard
- Gate Charge: 120 nC
- Td (on/off) @ 25°C: 15ns/160ns
- Test Condition: 600V, 15A, 10Ohm, 15V
- Reverse Recovery Time (trr): 330 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
