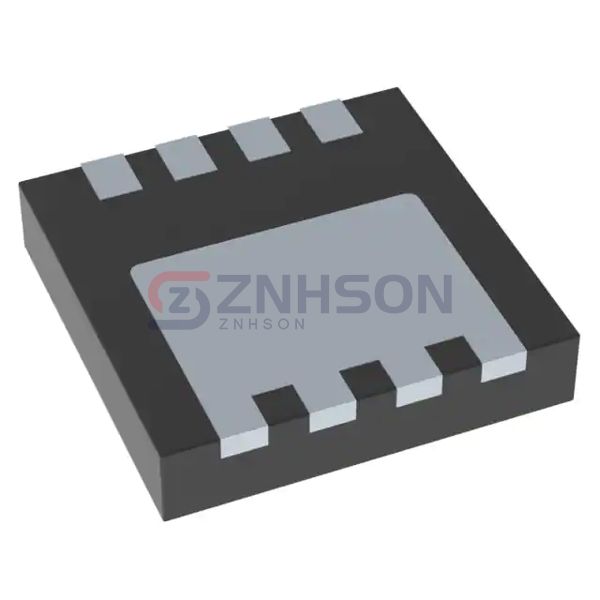

NTTFS1D8N02P1E
onsemi
onsemi
MOSFET N-CH 25V 20A/152A 8PQFN
$2.64
Available to order
Reference Price (USD)
1+
$2.64000
500+
$2.6136
1000+
$2.5872
1500+
$2.5608
2000+
$2.5344
2500+
$2.508
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power electronics with the NTTFS1D8N02P1E single MOSFET from onsemi. As a key player in the Discrete Semiconductor Products market, this component delivers high voltage tolerance and minimal power loss. Ideal for applications like solar inverters, electric vehicles, and robotics, the NTTFS1D8N02P1E combines cutting-edge technology with onsemi's renowned craftsmanship. Experience superior performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Ta), 152A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.3mOhm @ 30A, 10V
- Vgs(th) (Max) @ Id: 2V @ 700µA
- Gate Charge (Qg) (Max) @ Vgs: 38 nC @ 10 V
- Vgs (Max): +16V, -12V
- Input Capacitance (Ciss) (Max) @ Vds: 3159 pF @ 13 V
- FET Feature: -
- Power Dissipation (Max): 800mW (Ta), 48W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (3.3x3.3)
- Package / Case: 8-PowerWDFN
Related Products
Fairchild Semiconductor
FDS4488
Microchip Technology
APT58F50J
Infineon Technologies
IPI100N06S3L04XK
IXYS
IXTP08N100P
Infineon Technologies
IPP65R099CFD7AAKSA1
Renesas Electronics America Inc

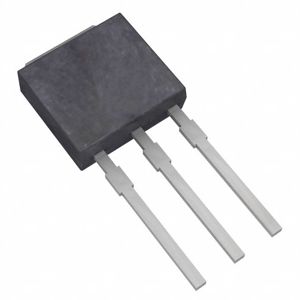

2SK3484-AZ
onsemi
FQP2N90
Toshiba Semiconductor and Storage

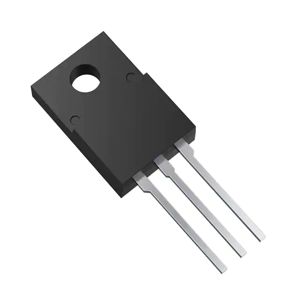

TK1K2A60F,S4X
