Backplane Connectors - DIN 41612
Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories
09234486825
CONN DIN RCPT 48POS PCB
09031962951
CONN DIN HDR 96POS PCB RA GOLD
09041326952
CONN DIN HDR 32POS PCB GOLD
RE96FSR
CONN DIN RCPT 96POS PCB RA GOLD
86093968115755E1LF
CONN DIN RCPT 96POS PCB GOLD
09060152914
CONN DIN HDR 15POS PCB RA
224411
DIN C 64POS F SLDR 4.0MM CL2
XC5A64421ABYOMR
CONN DIN PLUG 64POS PCB RA
09063326931
CONN DIN HDR 48POS PCB RA GOLD
536397-5
CONN DIN RCPT 48POS PCB GOLD

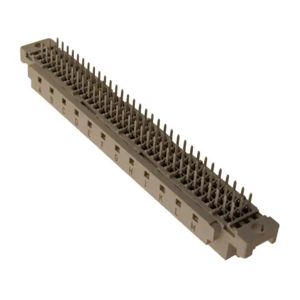

09037966825
CONN DIN RCPT 96POS PCB
650907-5
CONN DIN PLUG 150POS PCB RA GOLD
2-164045-4
CONN DIN PLUG 96POS PCB RA GOLD

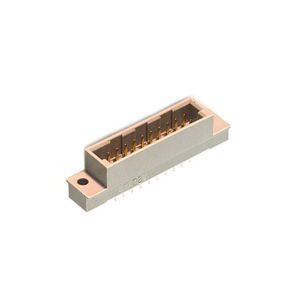

PCN10-20P-2.54DSA(72)
