Card Edge Connectors - Edgeboard Connectors
Card Edge Connectors - Edgeboard Connectors: Reliable Interconnect Solutions for PCB Applications
Definition:
Card Edge Connectors, also known as Edgeboard Connectors, are specialized interconnects designed to provide secure and efficient electrical connections between printed circuit boards (PCBs) and other components. These connectors feature a series of contacts that mate directly with the exposed conductive edges of a PCB, eliminating the need for additional wiring or soldering. Commonly used in high-density applications, they ensure reliable signal transmission and mechanical stability in demanding environments.
Types of Card Edge Connectors:
1. Standard Card Edge Connectors: Ideal for general-purpose PCB connections, offering varying pin counts and pitch sizes.
2. High-Speed Edge Connectors: Optimized for high-frequency signal integrity, often used in telecommunications and computing.
3. Dual-Row Edge Connectors: Provide enhanced contact density for complex PCB designs.
4. Right-Angle Edge Connectors: Enable space-saving vertical or horizontal PCB configurations.
5. Customizable Edgeboard Connectors: Tailored to specific mechanical or electrical requirements, including ruggedized designs for industrial use.
Purchasing Recommendations:
- Compatibility: Verify the connector s pitch, thickness, and pin count to match your PCB specifications.
- Durability: For harsh environments, select connectors with robust materials (e.g., high-temperature plastics, gold-plated contacts).
- Signal Requirements: Choose high-speed variants for applications demanding low crosstalk and impedance control.
- Vendor Reliability: Source from manufacturers with proven quality standards (e.g., UL certification) to ensure long-term performance.
Card Edge Connectors are indispensable in modern electronics, offering a balance of simplicity and precision for seamless PCB integration. Invest in the right type to enhance your system s reliability and efficiency.
Filter and sort
Categories
333-027-523-604
333 SERIES (.156" (3.96MM) CONTA
345-054-556-588
345 SERIES (.100" (2.54MM) CONTA
307-072-422-258
307 SERIES (.156" (3.96MM) CONTA
306-042-520-108
306 SERIES (.156" (3.96MM) CONTA
887-050-556-808
887 SERIES (.156" (3.96MM) CONTA
345-084-542-508
CONN EDGE DUAL FMALE 84POS 0.100
892-029-523-108
892 SERIES (.100" (2.54MM) CONTA
842-104-524-204
842 HIGH TEMP' SERIES (.100" (2.

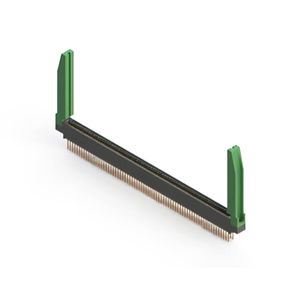

395-142-542-878
