Definition
Clock/Timing - Delay Lines are specialized Integrated Circuits (ICs) designed to introduce precise time delays in digital signal paths. These components ensure accurate synchronization, signal alignment, and phase adjustment in high-speed electronic systems. Delay lines are crucial in applications requiring strict timing control, such as data communication, memory interfaces, and microprocessor clock distribution.
Types of Delay Lines
- Fixed Delay Lines Provide a predetermined delay, ideal for consistent timing adjustments.
- Programmable Delay Lines Allow user-configurable delays via digital interfaces (e.g., SPI, I C).
- Voltage-Controlled Delay Lines (VCDLs) Adjust delay dynamically using an analog voltage input.
- Differential Delay Lines Support high-speed differential signaling (e.g., LVDS, CML).
- Temperature-Compensated Delay Lines Maintain stable delays despite thermal fluctuations.
Buying Considerations
- Delay Range & Precision Select based on required resolution (e.g., picosecond-level accuracy).
- Signal Compatibility Ensure support for your interface (e.g., CMOS, TTL, LVDS).
- Power Consumption Critical for portable/battery-operated devices.
- Package Type Choose between surface-mount (SMD) or through-hole based on PCB design.
- Jitter Performance Low jitter is vital for high-frequency applications.
Delay lines optimize system timing integrity whether for FPGA clock distribution, network synchronization, or test equipment. Evaluate specifications carefully to match your design requirements.
Filter and sort
Categories
MC10E195FNR2G
IC DELAY LINE 128TAP PROG 28PLCC
DS1010-400
DELAY LINE 10TAP 400NS MAX 14DIP
DS1023S-50+T
IC DEL LN 256TAP 127.5NS 16SOIC
DS1135LZ-12/T&R
IC DELAY LINE 12NS 8SOIC
DS1000Z-20N
DS1000 5-TAP SILICON DELAY LINE
DS1000M-350
DS1000 5-TAP SILICON DELAY LINE
DS1100Z-175
IC DELAY LINE 5TAP 175NS 8SOIC
DS1100LZ-200
IC DELAY LINE 5TAP 200NS 8SOIC

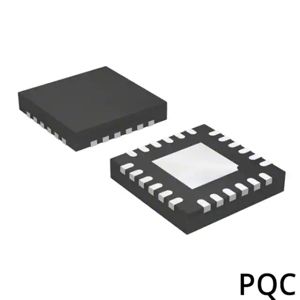

ASNT5170
14GHZ DELAY LINE, 0-260PS, 24PIN

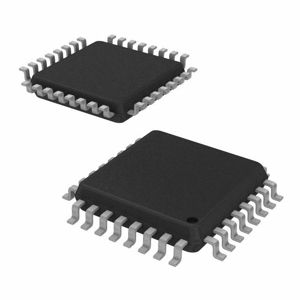

MC100EP195BFAR2G
IC DELAY LN 1024TAP PROG 32LQFP
DS1100LC-201/TR
DS1100 5-TAP (DELAY LINE)
DS1135Z-30
IC DELAY LINE 30NS 8SOIC
DS1040Z-150
PROGRAMMABLE PULSE GENERATOR

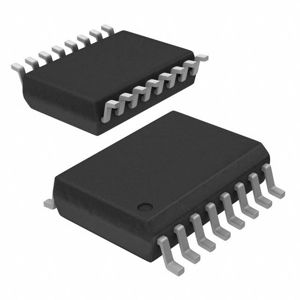

DS1023S-200+T&R
IC DELAY LN 256TAP 510NS 16SOIC

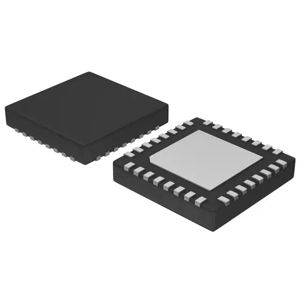

MC100EP196BMNR4G
IC DELAY LINE 1024TAP PROG 32QFN
DS1100LZ-200+T
IC DELAY LINE 5TAP 200NS 8SOIC
DS1135Z-8+
IC DELAY LINE 8NS 8SOIC
DS1100LZ-20+T
IC DELAY LINE 5TAP 20NS 8SOIC
DS1004Z-3
IC DELAY LINE 5TAP 17NS 8SOIC

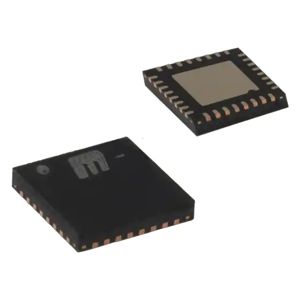

SY89296UMG
IC DELAY LINE 1024TAP PROG 32MLF
