Definition
Clock/Timing - Delay Lines are specialized Integrated Circuits (ICs) designed to introduce precise time delays in digital signal paths. These components ensure accurate synchronization, signal alignment, and phase adjustment in high-speed electronic systems. Delay lines are crucial in applications requiring strict timing control, such as data communication, memory interfaces, and microprocessor clock distribution.
Types of Delay Lines
- Fixed Delay Lines Provide a predetermined delay, ideal for consistent timing adjustments.
- Programmable Delay Lines Allow user-configurable delays via digital interfaces (e.g., SPI, I C).
- Voltage-Controlled Delay Lines (VCDLs) Adjust delay dynamically using an analog voltage input.
- Differential Delay Lines Support high-speed differential signaling (e.g., LVDS, CML).
- Temperature-Compensated Delay Lines Maintain stable delays despite thermal fluctuations.
Buying Considerations
- Delay Range & Precision Select based on required resolution (e.g., picosecond-level accuracy).
- Signal Compatibility Ensure support for your interface (e.g., CMOS, TTL, LVDS).
- Power Consumption Critical for portable/battery-operated devices.
- Package Type Choose between surface-mount (SMD) or through-hole based on PCB design.
- Jitter Performance Low jitter is vital for high-frequency applications.
Delay lines optimize system timing integrity whether for FPGA clock distribution, network synchronization, or test equipment. Evaluate specifications carefully to match your design requirements.
Filter and sort
Categories
DS1013S-40+
IC DELAY LINE 40NS 16SOIC

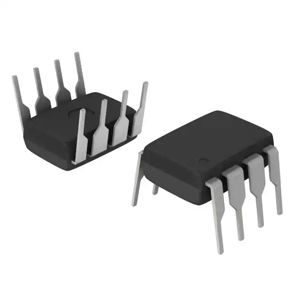

DS1005M-175+
IC DELAY LINE 5TAP 175NS 8DIP
DS1110S-350+
IC DELAY LINE 10TAP 350NS 16SOIC

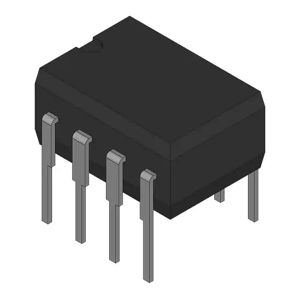

DS1000M-100N
DS1000 5-TAP SILICON DELAY LINE
DS1135U-15
IC DELAY LINE 15NS 8UMAX

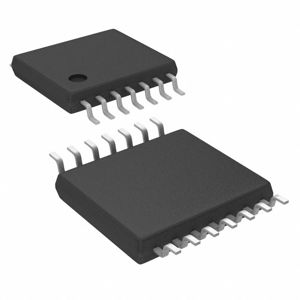

DS1110LE-500+T&R
IC DELAY LN 10TAP 500NS 14TSSOP
DS1135Z-6
IC DELAY LINE 6NS 8SOIC

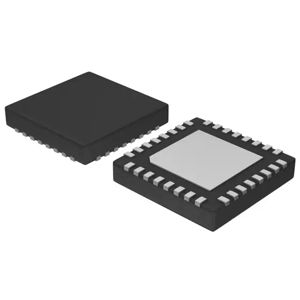

MC100EP195MNG
IC DELAY LINE 1024TAP PROG 32QFN
DS1100Z-125
IC DELAY LINE 5TAP 125NS 8SOIC

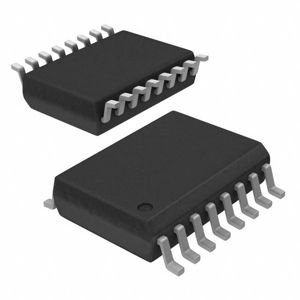

DS1013S-75
IC DELAY LINE 75NS 16SOIC

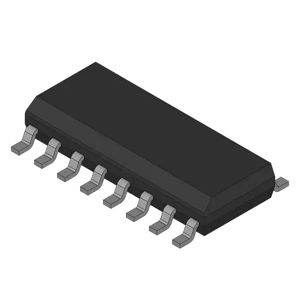

DS1000S-500
DS1000 5-TAP SILICON DELAY LINE
DS1005K-100
DS1005 5-TAP SILICON DELAY LINE
DS1000Z-25N/T&R
DS1000 5-TAP SILICON DELAY LINE
DS1135Z-6+T&R
IC DELAY LINE 6NS 8SOIC
DS1100Z-45
IC DELAY LINE 5TAP 45NS 8SOIC

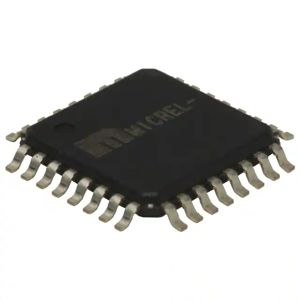

SY100EP196VTG-TR
IC DELAY LN 1024TAP PROG 32TQFP
DS1000S-100
DS1000 5-TAP SILICON DELAY LINE
DS1033Z-20
IC DELAY LINE 20NS 8-SOIC

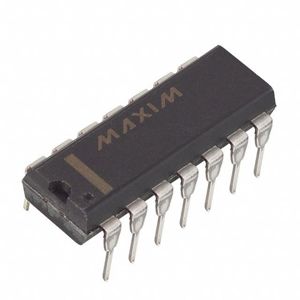

DS1013-10
IC DELAY LINE 10NS 14DIP
DS1100LZ-100+T
IC DELAY LINE 5TAP 100NS 8SOIC
