Coaxial Connectors (RF) - Contacts
Coaxial Connectors (RF) - Contacts: Category Overview
1. Definition of Coaxial Connectors (RF) - Contacts
Coaxial Connectors (RF) - Contacts are precision-engineered components designed to establish reliable electrical connections in RF (Radio Frequency) and coaxial applications. These contacts serve as the conductive interface within coaxial connectors, ensuring optimal signal transmission with minimal loss, interference, or impedance mismatch. They are critical for maintaining high-frequency performance in telecommunications, aerospace, medical devices, and other high-speed data systems.
2. Types of Coaxial Connectors (RF) - Contacts
This category includes a variety of contact types tailored to specific connector designs and performance requirements:
- Center Contacts: The inner conductive element of coaxial connectors, available in male (pin) or female (socket) configurations.
- Multi-Port Contacts: Designed for complex RF assemblies, supporting multiple signal paths.
- High-Frequency Contacts: Optimized for GHz-range applications, featuring advanced materials like beryllium copper or gold plating.
- Solder-on or Crimp Contacts: Variants for permanent or semi-permanent installation, balancing ease of assembly with durability.
3. Purchasing Recommendations
When selecting Coaxial Connectors (RF) - Contacts, consider:
- Frequency Range: Ensure the contact s design matches your operational bandwidth (e.g., DC to 6 GHz or millimeter-wave).
- Material & Plating: Gold-plated contacts offer superior corrosion resistance, while nickel-plated options provide cost efficiency.
- Compatibility: Verify mechanical dimensions (e.g., pin diameter) and connector series (SMA, BNC, N-type).
- Environmental Needs: For harsh conditions, choose contacts with hermetic sealing or ruggedized coatings.
Investing in high-quality RF contacts minimizes signal degradation and extends system longevity, making them a critical choice for mission-critical applications.
Filter and sort
Categories

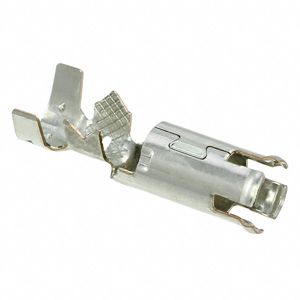

GT16C-/1.6-2.9PC
CONN PIN OUTER CONTACT M CRIMP
GT16-2428SCF
CONN SOCKET INNER CONTACT F CRMP

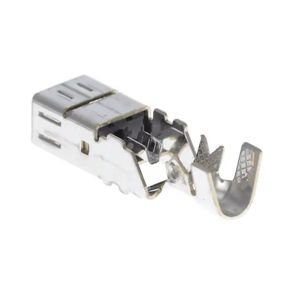

GT13-2428/1.6-2.9SCF(55)
CONN SOCKET CONTACT F CRIMP TIN

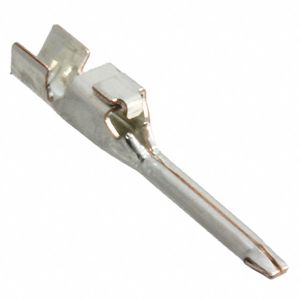

M25P10K4F1
CONN PIN INNER CONTACT CRIMP TIN
R280463000
ACCESSORY / SMA / N / REMOVABLE
23K15A-010E4
TERMINATOR MINI COAX JACK
GT5-30/0.7-1.5PCF(70)
CONN PIN CONTACT M CRIMP TIN

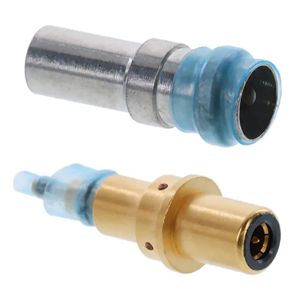

DK-602-0156-2
DK-602-0156-2
222246-2
CONN PIN CONTACT BNC SOLDER GOLD
227322-8
CONN PIN CONTACT BNC CRIMP GOLD

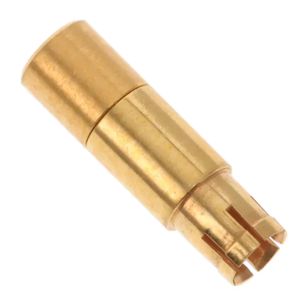

2302339-1
DAUGHTERCARD CONTACT KIT
228203-4
CONN SOCKET CONTACT SMB CRIMP
DK-602-0187-2
DK-602-0187-2
R280461000
ACCESSORY / SMA / N / REMOVABLE
SPC8P-204
SIZE 8 TWINAX PIN JACK
2-221607-8
CONN PIN CONTACT BNC SOLDER GOLD
GT5-30/1.6-2.9PCF(70)
CONN PIN CONTACT M CRIMP TIN
1-331357-3
CONN PIN CONTACT BNC SOLDER GOLD
GT16-/0.7-1.5SC
CONN COAX SOCKET OUTER TERMINAL
R280181000
ACCESSORY / REMOVABLE MALE CENTE
