D-Shaped Connectors - Centronics
D-Shaped Connectors - Centronics: Reliable Interconnect Solutions for Data Transfer
Definition & Overview
D-Shaped Connectors - Centronics are a specialized type of rectangular, D-shell interconnects primarily designed for parallel data transmission, widely recognized for their use in legacy printer and peripheral connections. Characterized by their sturdy, latch-secured design, these connectors ensure stable signal integrity in demanding environments. As a subcategory of Connectors & Interconnects, Centronics-style D-Shaed connectors adhere to standardized pin configurations (e.g., 36-pin for IEEE-1284 applications) and offer gender variants (male/female) for versatile mating.
Product Types & Applications
This category includes:
1. Standard Centronics Connectors Classic 36-pin interfaces for legacy printers/scanners.
2. High-Density variants Compact designs for space-constrained industrial setups.
3. Shielded & Ruggedized Models EMI-resistant options for automotive/military use.
4. Adapter Kits Enabling compatibility with modern USB or serial interfaces.
Common applications span industrial automation, vintage equipment maintenance, and retro-computing hardware restoration.
Purchasing Recommendations
1. Pin Configuration Verify pin count (e.g., 14, 24, 36) against your device s IEEE-1284 requirements.
2. Durability Opt for gold-plated contacts or nylon housings in high-vibration environments.
3. Compliance Ensure MIL-DTL-24308 or IEC 60603-22 standards for defense/aerospace projects.
4. Future-Proofing Consider hybrid adapters if integrating legacy systems with contemporary buses.
Ideal for engineers prioritizing backward compatibility and mechanical robustness in data transfer systems.
Filter and sort
Categories
FX2-20S-1.27DS(71)
CONN BTB RCPT 20POS R/A SOLDER
5-2232516-1
CONN SCSI RCPT 50POS R/A SOLDER
FX2BA-60PA-1.27DSA(71)
CONN HEADER VERT 60POS 1.27MM
553443-4
CONN RCPT 50POS VERT PRESS-FIT
10220-R21TS
CONN RCPT 20POS PCB PRESS-FIT
FX2BA-20P-1.27DSA(71)
CONN PLUG 20POS VERT SOLDER
749611-2
CONN SCSI RCPT 20POS PNL MNT IDC
FX2-52S-1.27SVL(71)
CONN RCPT 52POS SMD SOLDER
5406874-1
CONN SCSI RCPT 50POS VERT SOLDER
10168-8000EE
CONN PLUG 68POS STR IDC

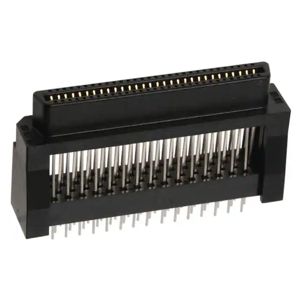

FX2M6B-60S-1.27DSAL(71)
CONN RECEPT STR 60POS 1.27MM PCB

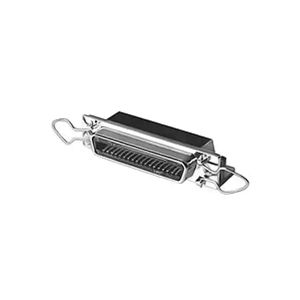

1734044-2
CENTRONICS,RCPT 37P,R/A,PB

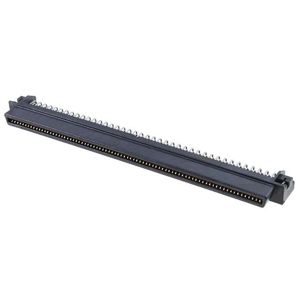

1-1734037-6
CONN BTB RCPT 160POS R/A SOLDER

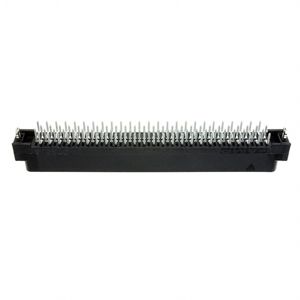

6-5175473-0
CONN BTB PLUG 100POS VERT SOLDER

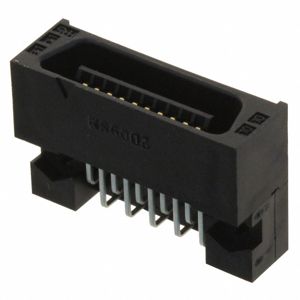

FX2-20P-1.27DS(71)
CONN BTB PLUG 20POS R/A SOLDER

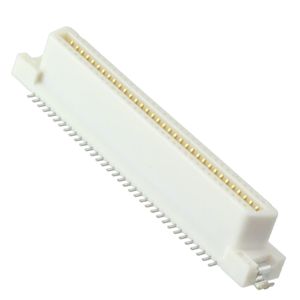

FX2-68S-1.27SVL(71)
CONN SOCKET RA 68POS 1.27MM

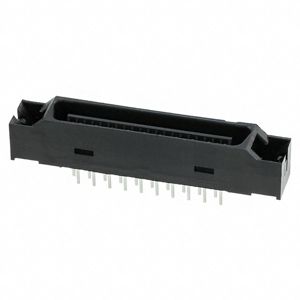

FX2BA-40P-1.27DSA(71)
CONN HEADER VERT 40POS 1.27MM

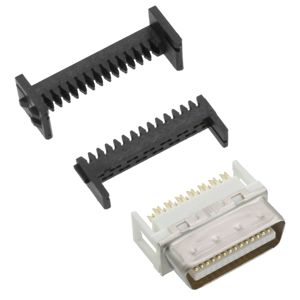

DX30A-28P(50)
IDC CONN 28POS PLUG
FX2BA-100PA-1.27DSAL(71)
CONN HEADER VERT 100POS 1.27MM

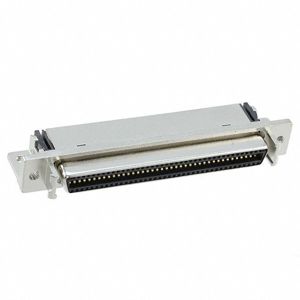

DX10-80S(50)
CONN 1.27MM PITCH HIDENSITY
