D-Shaped Connectors - Centronics: Reliable Interconnect Solutions for Data Transfer
Definition & Overview
D-Shaped Connectors - Centronics are a specialized type of rectangular, D-shell interconnects primarily designed for parallel data transmission, widely recognized for their use in legacy printer and peripheral connections. Characterized by their sturdy, latch-secured design, these connectors ensure stable signal integrity in demanding environments. As a subcategory of Connectors & Interconnects, Centronics-style D-Shaed connectors adhere to standardized pin configurations (e.g., 36-pin for IEEE-1284 applications) and offer gender variants (male/female) for versatile mating.
Product Types & Applications
This category includes:
1. Standard Centronics Connectors Classic 36-pin interfaces for legacy printers/scanners.
2. High-Density variants Compact designs for space-constrained industrial setups.
3. Shielded & Ruggedized Models EMI-resistant options for automotive/military use.
4. Adapter Kits Enabling compatibility with modern USB or serial interfaces.
Common applications span industrial automation, vintage equipment maintenance, and retro-computing hardware restoration.
Purchasing Recommendations
1. Pin Configuration Verify pin count (e.g., 14, 24, 36) against your device s IEEE-1284 requirements.
2. Durability Opt for gold-plated contacts or nylon housings in high-vibration environments.
3. Compliance Ensure MIL-DTL-24308 or IEC 60603-22 standards for defense/aerospace projects.
4. Future-Proofing Consider hybrid adapters if integrating legacy systems with contemporary buses.
Ideal for engineers prioritizing backward compatibility and mechanical robustness in data transfer systems.
Filter and sort
Categories
552391-1
CONN RCPT 50POS STR IDC
1-1734098-0
CONN RCPT 100POS STR IDC
DX10G1M-36S(50)
CONN MINI HD RCPT 36P R/A SOLDER
5-5175475-1
CONN BTB HD RCPT 20P VERT SOLDER
DX20A-36S(50)
CONN RECEPT VERT 36PIN PCB
5-5175472-3
CONN BTB HD PLUG 30POS R/A SLDR

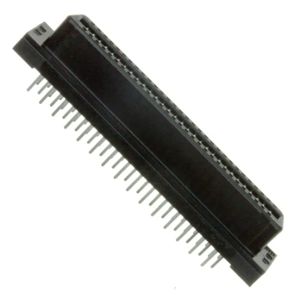

FX2C-60S-1.27DSA(71)
CONN RECEPT VERT 60POS 1.27MM
112-014-113R001
CONN SCSI PLUG 14POS R/A SOLDER
DX31A-20S(50)
CONN RECEPT 20POS
FX2CA2-40S-1.27DSAL(71)
CONN RECEPT VERT 40POS 1.27MM
553444-4
CONN PLUG 50POS VERT PRESS-FIT

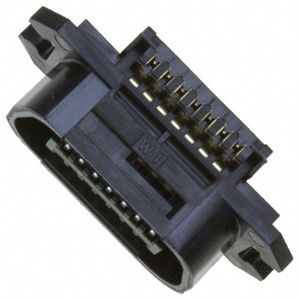

552270-1
CONN PLUG 14POS STR IDC
554954-1
CONN PLUG 50POS STR IDC
229913-1
CONN RCPT 50POS R/A IDC

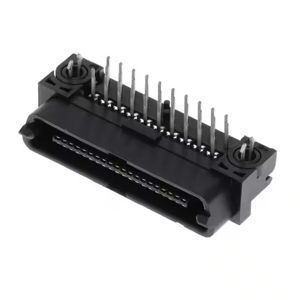

PHEC40P-R111LF
CONN PLUG 40POS R/A SOLDER
FX2C2-120P-1.27DSAL(71)
CONN HDR 120POS 1.27MM

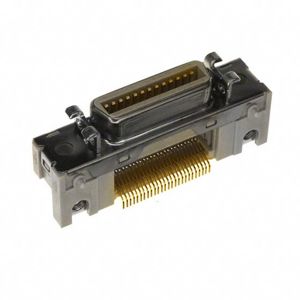

10226-1A10PE
CONN RCPT 26POS R/A SOLDER
DH80A-27P
CONN SCSI RCPT 27POS SMD SOLDER
N10268-5242PC
CONN RCPT 68POS R/A SOLDER
2-552001-1
CONN RCPT 50POS STR IDC
