D-Shaped Connectors - Centronics
D-Shaped Connectors - Centronics: Reliable Interconnect Solutions for Data Transfer
Definition & Overview
D-Shaped Connectors - Centronics are a specialized type of rectangular, D-shell interconnects primarily designed for parallel data transmission, widely recognized for their use in legacy printer and peripheral connections. Characterized by their sturdy, latch-secured design, these connectors ensure stable signal integrity in demanding environments. As a subcategory of Connectors & Interconnects, Centronics-style D-Shaed connectors adhere to standardized pin configurations (e.g., 36-pin for IEEE-1284 applications) and offer gender variants (male/female) for versatile mating.
Product Types & Applications
This category includes:
1. Standard Centronics Connectors Classic 36-pin interfaces for legacy printers/scanners.
2. High-Density variants Compact designs for space-constrained industrial setups.
3. Shielded & Ruggedized Models EMI-resistant options for automotive/military use.
4. Adapter Kits Enabling compatibility with modern USB or serial interfaces.
Common applications span industrial automation, vintage equipment maintenance, and retro-computing hardware restoration.
Purchasing Recommendations
1. Pin Configuration Verify pin count (e.g., 14, 24, 36) against your device s IEEE-1284 requirements.
2. Durability Opt for gold-plated contacts or nylon housings in high-vibration environments.
3. Compliance Ensure MIL-DTL-24308 or IEC 60603-22 standards for defense/aerospace projects.
4. Future-Proofing Consider hybrid adapters if integrating legacy systems with contemporary buses.
Ideal for engineers prioritizing backward compatibility and mechanical robustness in data transfer systems.
Filter and sort
Categories
FX2B-80PA-1.27DSAL(71)
CONN HEADER RA 80POS 1.27MM
FX2CA2-60S-1.27DSAL(71)
CONN SOCKET VERT 60POS 1.27MM

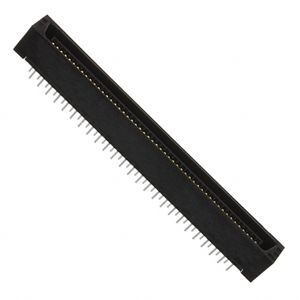

FX2C-100P-1.27DSA(71)
CONN HEADER VERT 100POS 1.27MM
DX10M-50SE(50)
CONN RECEPT 50POS RA PCB
10220-55H3PC
CONN RCPT 20POS R/A SOLDER
10236-0210EC
CONN RCPT 36POS STR IDC

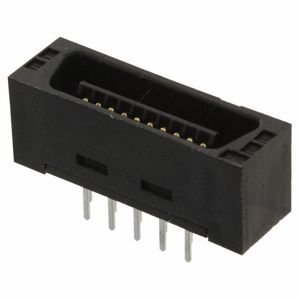

FX2C-20P-1.27DSA(71)
CONN HEADER VERT 20POS 1.27MM

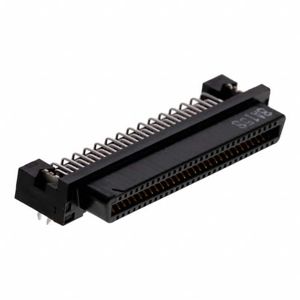

FX2-60S-1.27DSL(71)
CONN SOCKET RA 60POS 1.27MM
DF02P050F22A1
CONN PLUG 50POS STR SOLDER
5555149-3
CONN RCPT 50POS R/A SOLDER
DX10A-20S(50)
CONN PLUG 20POS RA

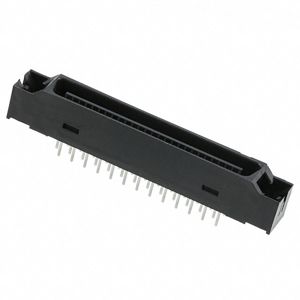

FX2BA-52P-1.27DSA(71)
CONN HDR 52POS 1.27MM
FX2B-100PA-1.27DS(71)
CONN HEADER R/A 100POS 1.27MM
5-5175474-7
CONN BTB HD RCPT 60POS R/A SLDR

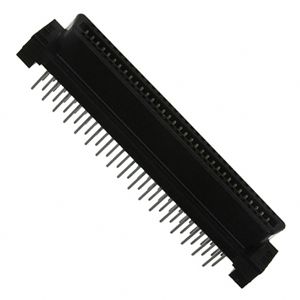

FX2CA2-68S-1.27DSA(71)
CONN RECEPT VERT 68POS 1.27MM
FX2C-80P-1.27DSAL(71)
CONN HDR 80POS 1.27MM
FX2BM-32SA-1.27R
CONN RECEPT 32POS 1.27MM
102A0-6212PC
CONN RCPT 100POS PCB SOLDER

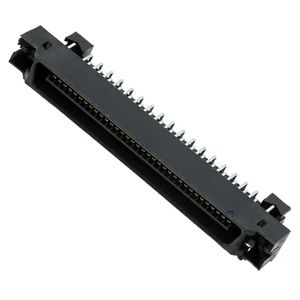

FX2B-68PA-1.27DSL(71)
CONN HDR 68POS 1.27MM
FX2C1-20P-1.27DSA(71)
CONN HEADER VERT 20POS 1.27MM
