D-Shaped Connectors - Centronics: Reliable Interconnect Solutions for Data Transfer
Definition & Overview
D-Shaped Connectors - Centronics are a specialized type of rectangular, D-shell interconnects primarily designed for parallel data transmission, widely recognized for their use in legacy printer and peripheral connections. Characterized by their sturdy, latch-secured design, these connectors ensure stable signal integrity in demanding environments. As a subcategory of Connectors & Interconnects, Centronics-style D-Shaed connectors adhere to standardized pin configurations (e.g., 36-pin for IEEE-1284 applications) and offer gender variants (male/female) for versatile mating.
Product Types & Applications
This category includes:
1. Standard Centronics Connectors Classic 36-pin interfaces for legacy printers/scanners.
2. High-Density variants Compact designs for space-constrained industrial setups.
3. Shielded & Ruggedized Models EMI-resistant options for automotive/military use.
4. Adapter Kits Enabling compatibility with modern USB or serial interfaces.
Common applications span industrial automation, vintage equipment maintenance, and retro-computing hardware restoration.
Purchasing Recommendations
1. Pin Configuration Verify pin count (e.g., 14, 24, 36) against your device s IEEE-1284 requirements.
2. Durability Opt for gold-plated contacts or nylon housings in high-vibration environments.
3. Compliance Ensure MIL-DTL-24308 or IEC 60603-22 standards for defense/aerospace projects.
4. Future-Proofing Consider hybrid adapters if integrating legacy systems with contemporary buses.
Ideal for engineers prioritizing backward compatibility and mechanical robustness in data transfer systems.
Filter and sort
Categories

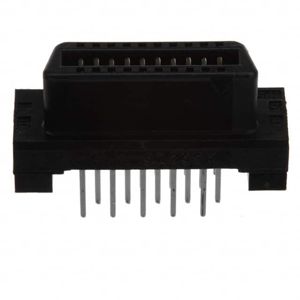

FX2CA2-20S-1.27DSA(71)
CONN RECEPT VERT 20POS 1.27MM
FX2-20P-0.635SH(95)
CONN HDR 20POS 1.27MM

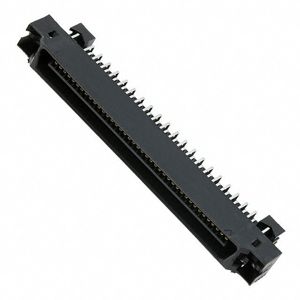

FX2B-80PA-1.27DSL(71)
CONN HDR 80POS 1.27MM
DX40M-100P
CONN MINHD PLG 100P STR SLD EYEL
N10226-52B3PC
CONN RCPT 26POS R/A SOLDER
FX2C2-100S-1.27DSAL(71)
CONN RECEPT 100POS 1.27MM

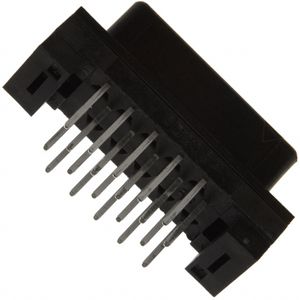

FX2C2-20S-1.27DSA(71)
CONN RECEPT VERT 20POS 1.27MM
111-036-203L001
CONN SCSI RCPT 36P STR SLDR CUP
5552745-1
CONN PLUG 64POS R/A SOLDER
5-5175475-8
CONN BTB HD RCPT 68P VERT SOLDER
FX2CA-80P-1.27DSAL(71)
CONN HDR 80POS 1.27MM
6339447-9
CONN RCPT 50POS R/A SOLDER
554103-1
CONN PLUG 24POS PNL MNT IDC
FX2-68S-1.27DS(71)
CONN RECEPT R/A 68POS 1.27MM
5556622-1
CONN RCPT 64POS VERT PRESS-FIT
FI40B-20S(50)
CONN RCPT 20POS VERT SOLDER

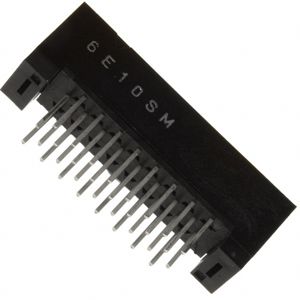

FX2C2-32P-1.27DSA(71)
CONN HEADER VERT 32POS 1.27MM
FX2CA2-60P-1.27DSAL(71)
CONN HDR 60POS 1.27MM
10220-2200PE
CONN RCPT 20POS SMD SOLDER
10140-6000EC
CONN PLUG 40POS STR IDC
