Definition:
Digital Potentiometers, often referred to as "digipots," are integrated circuits (ICs) designed to emulate the functionality of traditional mechanical potentiometers but with digital control. These devices provide variable resistance through electronic signals, enabling precise adjustment of voltage division, current control, or signal attenuation in a circuit. As a key component in data acquisition systems, digital potentiometers offer enhanced accuracy, programmability, and reliability compared to their analog counterparts.
Types of Digital Potentiometers:
1. Volatile vs. Non-Volatile:
- Volatile Digipots lose their settings when power is removed, suitable for dynamic applications requiring frequent adjustments.
- Non-Volatile Digipots retain settings after power-off, ideal for preset configurations or memory-critical systems.
Interface Types:
- I2C/SPI-Compatible: Enable serial communication for microcontroller-based designs.
- Up/Down Interface: Simple pulse-controlled adjustment for basic applications.
Resolution & Channels:
- Ranging from 6-bit to 10-bit resolution for fine-tuning precision.
- Single, dual, or quad-channel options to support multi-circuit control.
Purchasing Recommendations:
- Match Resolution to Application: Higher bit counts (e.g., 10-bit) are critical for sensitive analog signal processing, while 6-8 bits suffice for general-purpose use.
- Consider Endurance: For frequently adjusted systems, select digipots with high write-cycle ratings (e.g., >50,000 cycles).
- Verify Voltage Compatibility: Ensure the IC s operating voltage range aligns with your circuit s requirements (e.g., 3.3V, 5V, or 15V).
- Package Size: SMD packages (e.g., TSSOP, QFN) save space in compact designs, while DIP options simplify prototyping.
Digital potentiometers bridge analog flexibility with digital precision, making them indispensable for audio equipment, sensor calibration, and automated test systems. Evaluate technical specs against your design s needs to optimize performance and cost-efficiency.
Filter and sort
Categories
AD8402ARZ10-REEL
IC DGTL POT 10KOHM 256TAP 14SOIC

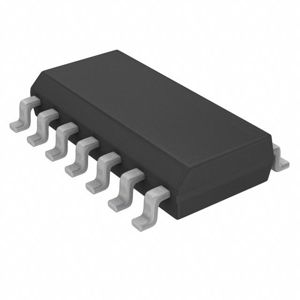

MCP42100T-E/SL
IC DGT POT 100KOHM 256TAP 14SOIC
MCP4542-503E/MS
IC DGTL POT 50KOHM 129TAP 8MSOP
MCP4141T-104E/MS
IC DGTL POT 100KOHM 129TAP 8MSOP

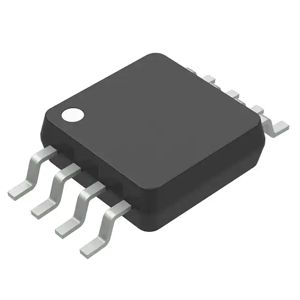

MCP4131-104E/MS
IC DGTL POT 100KOHM 129TAP 8MSOP

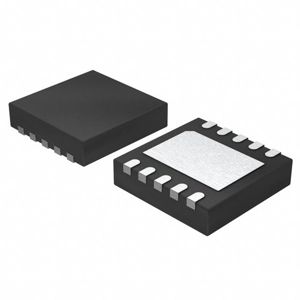

MCP4642T-502E/MF
IC DGTL POT 5KOHM 129TAP 10DFN

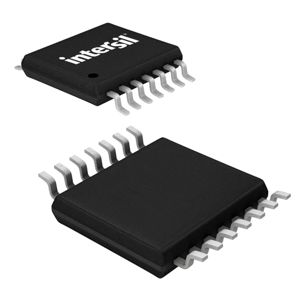

ISL90842UIV1427Z-TK
IC DGT POT 50KOHM 256TAP 14TSSOP

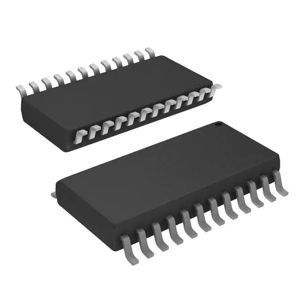

X9258US24IZ-2.7T1
IC DGTL POT 50KOHM 256TAP 24SOIC
MAX5411ETE+T
IC DGTL POT 10KOHM 32TAP 16TQFN
MCP4452-103E/ST
IC DGT POT 10KOHM 257TAP 14TSSOP
ISL22346UFRT20Z-TK
IC DGT POT 50KOHM 128TAP 20TQFN
MCP4651-503E/ST
IC DGT POT 50KOHM 257TAP 14TSSOP

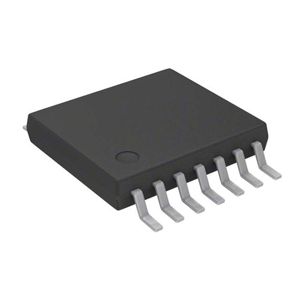

MCP45HV51T-503E/ST
IC DGT POT 50KOHM 256TAP 14TSSOP
MCP4341T-103E/ML
IC DGTL POT 10KOHM 129TAP 20QFN

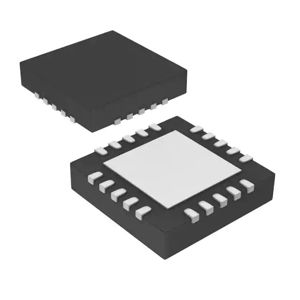

MCP4361-503E/ML
IC DGTL POT 50KOHM 257TAP 20QFN

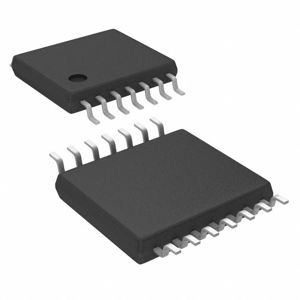

MAX5487EUD+
IC DGT POT 10KOHM 256TAP 14TSSOP

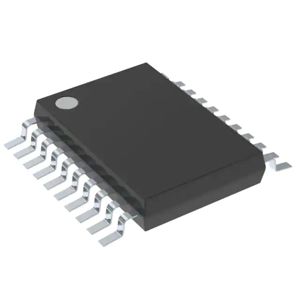

MCP4461-104E/ST
IC DGT POT 100KOHM 257TP 20TSSOP
MAX5429EGA
MAX5429 ONE-TIME PROGRAMMABLE, L

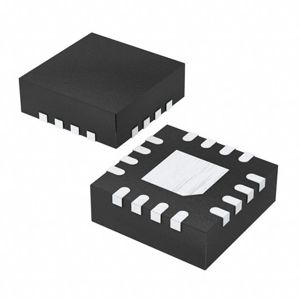

MCP4251T-104E/ML
IC DGTL POT 100KOHM 257TAP 16QFN

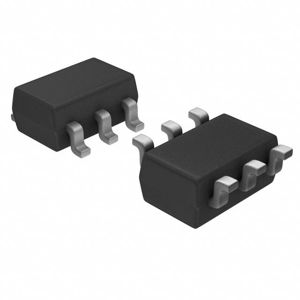

MCP4013T-502E/CH
IC DGTL POT 5KOHM 64TAP SOT23-6
