Definition:
Digital Potentiometers, often referred to as "digipots," are integrated circuits (ICs) designed to emulate the functionality of traditional mechanical potentiometers but with digital control. These devices provide variable resistance through electronic signals, enabling precise adjustment of voltage division, current control, or signal attenuation in a circuit. As a key component in data acquisition systems, digital potentiometers offer enhanced accuracy, programmability, and reliability compared to their analog counterparts.

Types of Digital Potentiometers:
1. Volatile vs. Non-Volatile:
- Volatile Digipots lose their settings when power is removed, suitable for dynamic applications requiring frequent adjustments.
- Non-Volatile Digipots retain settings after power-off, ideal for preset configurations or memory-critical systems.

Interface Types:
- I2C/SPI-Compatible: Enable serial communication for microcontroller-based designs.
- Up/Down Interface: Simple pulse-controlled adjustment for basic applications.
Resolution & Channels:
- Ranging from 6-bit to 10-bit resolution for fine-tuning precision.
- Single, dual, or quad-channel options to support multi-circuit control.

Purchasing Recommendations:
- Match Resolution to Application: Higher bit counts (e.g., 10-bit) are critical for sensitive analog signal processing, while 6-8 bits suffice for general-purpose use.
- Consider Endurance: For frequently adjusted systems, select digipots with high write-cycle ratings (e.g., >50,000 cycles).
- Verify Voltage Compatibility: Ensure the IC s operating voltage range aligns with your circuit s requirements (e.g., 3.3V, 5V, or 15V).
- Package Size: SMD packages (e.g., TSSOP, QFN) save space in compact designs, while DIP options simplify prototyping.

Digital potentiometers bridge analog flexibility with digital precision, making them indispensable for audio equipment, sensor calibration, and automated test systems. Evaluate technical specs against your design s needs to optimize performance and cost-efficiency.

IC DGTL POT 10KOHM 129TAP 10DFN

Shopping cart

Data Acquisition - Digital Potentiometers

Filter and sort

Categories

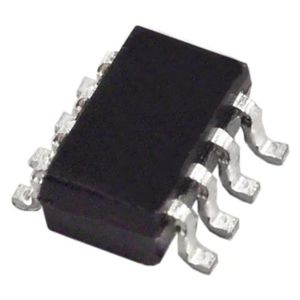

AD5273BRJZ100-R7

AD5246BKSZ50-RL7

AD5204BN50

MAX5410EEE+

X95820WV14IZ-2.7T1

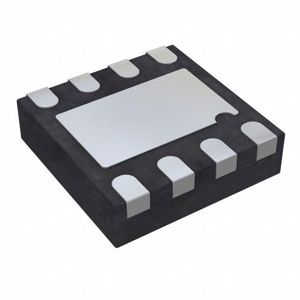

AD5110BCPZ80-1-RL7

AD5233BRUZ10

X9313WMIZT1

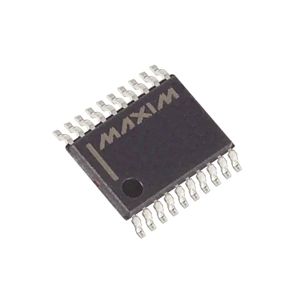

DS3930E+T&R

CAT5115ZI-50-T3

MAX5427EGA

MAX5405EUB+

AD5222BR10

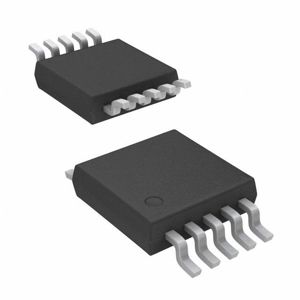

AD5161BRMZ5-RL7

AD5272BCPZ-100-RL7

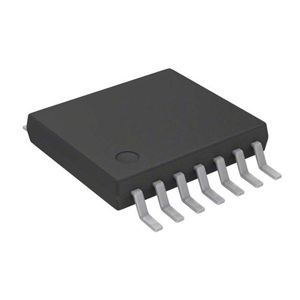

MCP45HV51T-104E/ST

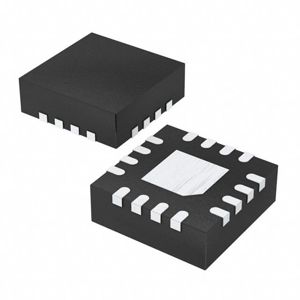

MCP4241-104E/ML

AD8403AR1

CAT5111VI-50-GT3

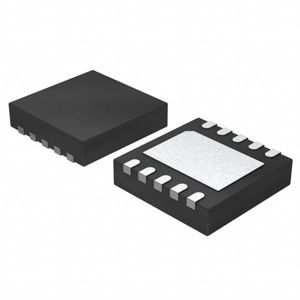

MCP4242-103E/MF
