Definition:
Digital Potentiometers, often referred to as "digipots," are integrated circuits (ICs) designed to emulate the functionality of traditional mechanical potentiometers but with digital control. These devices provide variable resistance through electronic signals, enabling precise adjustment of voltage division, current control, or signal attenuation in a circuit. As a key component in data acquisition systems, digital potentiometers offer enhanced accuracy, programmability, and reliability compared to their analog counterparts.
Types of Digital Potentiometers:
1. Volatile vs. Non-Volatile:
- Volatile Digipots lose their settings when power is removed, suitable for dynamic applications requiring frequent adjustments.
- Non-Volatile Digipots retain settings after power-off, ideal for preset configurations or memory-critical systems.
Interface Types:
- I2C/SPI-Compatible: Enable serial communication for microcontroller-based designs.
- Up/Down Interface: Simple pulse-controlled adjustment for basic applications.
Resolution & Channels:
- Ranging from 6-bit to 10-bit resolution for fine-tuning precision.
- Single, dual, or quad-channel options to support multi-circuit control.
Purchasing Recommendations:
- Match Resolution to Application: Higher bit counts (e.g., 10-bit) are critical for sensitive analog signal processing, while 6-8 bits suffice for general-purpose use.
- Consider Endurance: For frequently adjusted systems, select digipots with high write-cycle ratings (e.g., >50,000 cycles).
- Verify Voltage Compatibility: Ensure the IC s operating voltage range aligns with your circuit s requirements (e.g., 3.3V, 5V, or 15V).
- Package Size: SMD packages (e.g., TSSOP, QFN) save space in compact designs, while DIP options simplify prototyping.
Digital potentiometers bridge analog flexibility with digital precision, making them indispensable for audio equipment, sensor calibration, and automated test systems. Evaluate technical specs against your design s needs to optimize performance and cost-efficiency.
Filter and sort
Categories

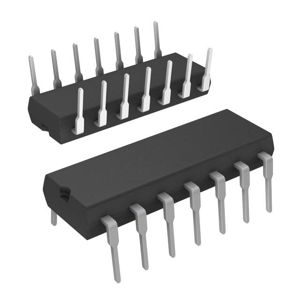

MCP4251-502E/P
IC DGTL POT 5KOHM 257TAP 14DIP
MCP4151-503E/P
IC DGTL POT 50KOHM 257TAP 8DIP
MCP4151T-104E/MS
IC DGTL POT 100KOHM 257TAP 8MSOP
AD5253BRUZ1
IC DGTL POT 1KOHM 64TAP 20TSSOP
AD5232BRU100
IC DGT POT 100KOHM 256TP 16TSSOP
MAX5467EUT+T
IC DGTL POT 10KOHM 32TAP SOT23-6
ISL23448WFRZ-T7A
DIGIPOT, CMOS, PQCC20

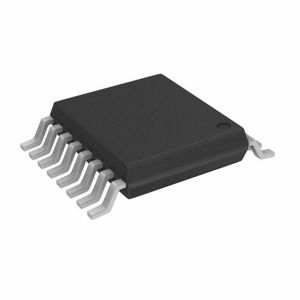

MAX5392LAUE+
IC DGT POT 10KOHM 256TAP 16TSSOP

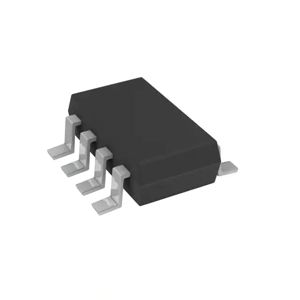

AD5228BUJZ50-RL7
IC DGT POT 50KOHM 32TAP TSOT23-8

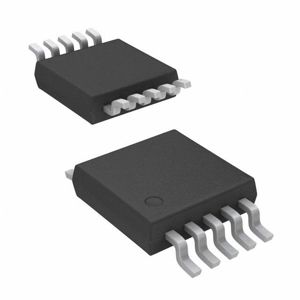

MCP4262T-104E/UN
IC DGT POT 100KOHM 257TAP 10MSOP

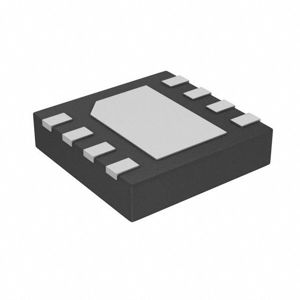

MCP4132T-503E/MF
IC DGT POT 50KOHM 129TAP 8DFN

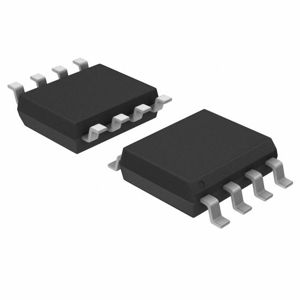

MCP4132-502E/SN
IC DGTL POT 5KOHM 129TAP 8SOIC
MCP4632-503E/UN
IC DGTL POT 50KOHM 129TAP 10MSOP

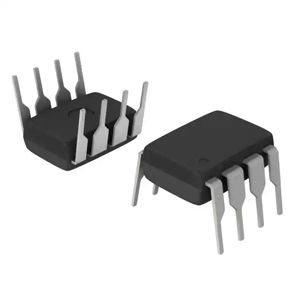

MCP4132-502E/P
IC DGTL POT 5KOHM 129TAP 8DIP
X9118TV14IZ
IC XDCP SGL 1024TAP 100K 14TSSOP

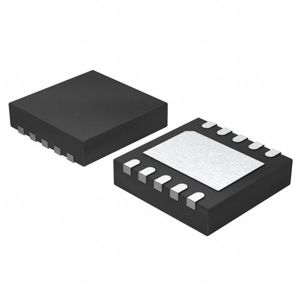

MCP4242T-103E/MF
IC DGTL POT 10KOHM 129TAP 10DFN

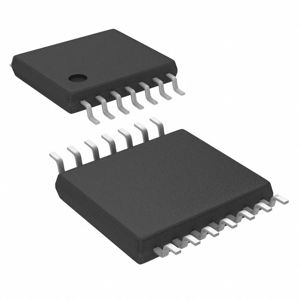

MAX5451EUD+
IC DGT POT 10KOHM 256TAP 14TSSOP
AD5113BCPZ5-RL7
IC DGTL POT 5KOHM 64TAP 8LFCSP
CAT5251WI00
IC POT DIG 50K 256TAP SPI 24SOIC

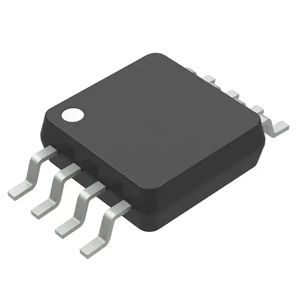

MCP4542-104E/MS
IC DGTL POT 100KOHM 129TAP 8MSOP
