PMIC - Voltage Reference
PMIC - Voltage Reference: Precision Power Management Components
Definition & Functionality
PMIC - Voltage References are specialized integrated circuits (ICs) within the Power Management IC (PMIC) category, designed to generate a stable, precise DC voltage regardless of variations in input voltage, load conditions, or temperature. These components serve as critical "voltage standards" for analog and mixed-signal circuits, ensuring accuracy in applications like data converters, sensors, and power supplies.
Types & Key Variations
1. Series Voltage References: Provide a fixed output with low dropout voltage, ideal for battery-powered devices.
2. Shunt Voltage References: Operate like precision Zener diodes, suited for high-accuracy, low-current systems.
3. Adjustable Voltage References: Allow output customization via external resistors, offering design flexibility.
4. Bandgap References: Leverage semiconductor bandgap properties for ultra-stable outputs across temperature ranges.
5. Buried Zener References: Deliver the highest precision (e.g., 0.04%) for metrology or medical equipment.
Selection Guidelines
- Accuracy & Tolerance: Prioritize < 1% tolerance for precision systems (e.g., ADCs).
- Temperature Coefficient (TempCo): Choose <10ppm/ C for environments with thermal fluctuations.
- Noise Performance: Opt for low-noise (<10 Vpp) designs in sensitive analog circuits.
- Package & Power: Match SOT-23 (portable) or SOIC (industrial) packages to your PCB constraints.
- Long-Term Stability: Critical for automotive/industrial apps; verify datasheet aging specs (e.g., 50ppm/1000hr).
Why It Matters
Voltage References are the unsung heroes of reliable electronics, minimizing drift and noise in power rails. From IoT sensor calibration to aerospace systems, selecting the right type ensures optimal performance and longevity. Partner with trusted suppliers (e.g., Texas Instruments, Analog Devices) to source certified components with traceable quality data.
Filter and sort
Categories

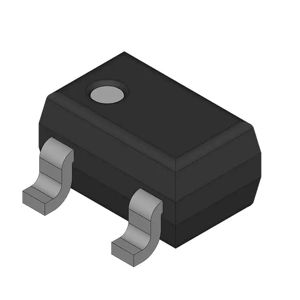

LM4050AIX3-3.3
PRECISION MICROPOWER SHUNT VREF

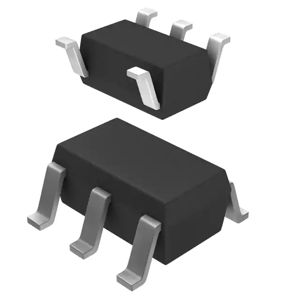

TLV431BE5TA
IC VREF SHUNT ADJ 0.5% SOT25
LM4132AMFX-1.8/NOPB
IC VREF SERIES 0.05% SOT23-5

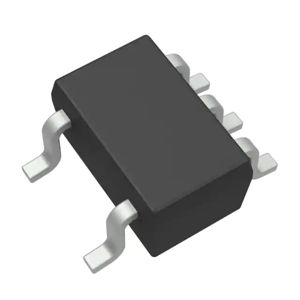

LM4040DIM7-5.0/NOPB
IC VREF SHUNT 1% SC70-5

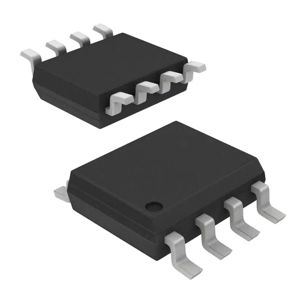

AD587JRZ
IC VREF SERIES 0.1% 8SOIC

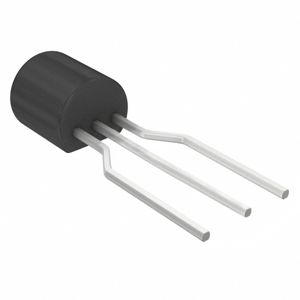

LT1034BCZ-2.5#TRPBF
IC VREF SHUNT 1.6% TO92-3
LM4050QAEM3-10/NOPB
IC VREF SHUNT 0.1% SOT23-3

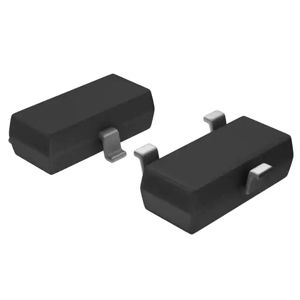

TS432AILT
IC VREF SHUNT ADJ 1% SOT23-3
LM4140ACM-2.0
IC VREF SERIES 0.1% 8SOIC

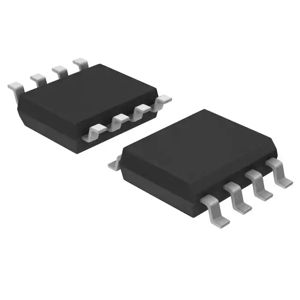

LT1389BCS8-5#TRPBF
IC VREF SHUNT 0.075% 8SOIC

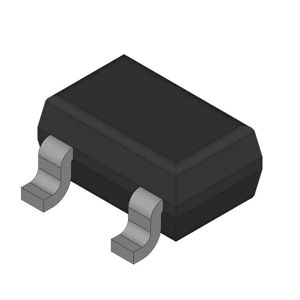

MAX6138CEXR50
VOLTAGE REFERENCE
LT6654AMPS6-3#TRPBF
IC VREF SERIES 0.05% TSOT23-6

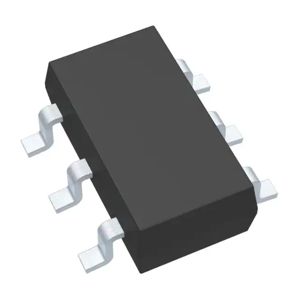

MAX6070AAUT25+T
IC VREF SERIES 0.04% SOT23-6
LM4040C50IDCKR
IC VREF SHUNT 0.5% SC70-5

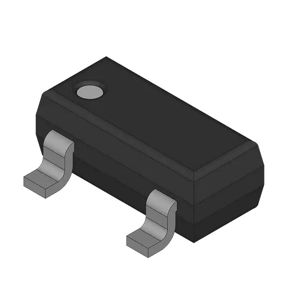

ISL60002CIH326Z
IC VREF SERIES 2.6V SOT23-3
LM4041A12IDBZT
IC VREF SHUNT 0.1% SOT23-3

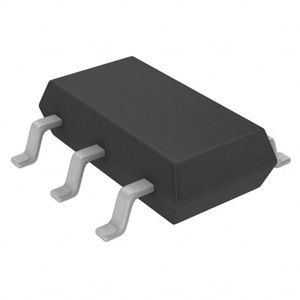

LT6654BMPS6-3#TRPBF
IC VREF SERIES 0.1% TSOT23-6

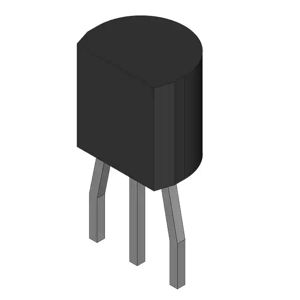

LM385Z-2.5/T7
TWO TERMINAL VOLTAGE REFERENCE,

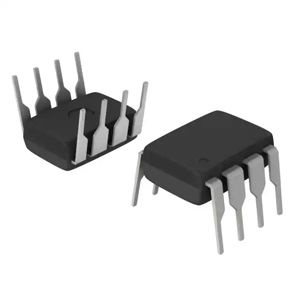

REF02HP+
IC VREF SERIES 0.5% 8DIP
MAX6126A50+
IC VREF SERIES 0.06% 8UMAX
