PMIC - Voltage Reference
PMIC - Voltage Reference: Precision Power Management Components
Definition & Functionality
PMIC - Voltage References are specialized integrated circuits (ICs) within the Power Management IC (PMIC) category, designed to generate a stable, precise DC voltage regardless of variations in input voltage, load conditions, or temperature. These components serve as critical "voltage standards" for analog and mixed-signal circuits, ensuring accuracy in applications like data converters, sensors, and power supplies.
Types & Key Variations
1. Series Voltage References: Provide a fixed output with low dropout voltage, ideal for battery-powered devices.
2. Shunt Voltage References: Operate like precision Zener diodes, suited for high-accuracy, low-current systems.
3. Adjustable Voltage References: Allow output customization via external resistors, offering design flexibility.
4. Bandgap References: Leverage semiconductor bandgap properties for ultra-stable outputs across temperature ranges.
5. Buried Zener References: Deliver the highest precision (e.g., 0.04%) for metrology or medical equipment.
Selection Guidelines
- Accuracy & Tolerance: Prioritize < 1% tolerance for precision systems (e.g., ADCs).
- Temperature Coefficient (TempCo): Choose <10ppm/ C for environments with thermal fluctuations.
- Noise Performance: Opt for low-noise (<10 Vpp) designs in sensitive analog circuits.
- Package & Power: Match SOT-23 (portable) or SOIC (industrial) packages to your PCB constraints.
- Long-Term Stability: Critical for automotive/industrial apps; verify datasheet aging specs (e.g., 50ppm/1000hr).
Why It Matters
Voltage References are the unsung heroes of reliable electronics, minimizing drift and noise in power rails. From IoT sensor calibration to aerospace systems, selecting the right type ensures optimal performance and longevity. Partner with trusted suppliers (e.g., Texas Instruments, Analog Devices) to source certified components with traceable quality data.
Filter and sort
Categories

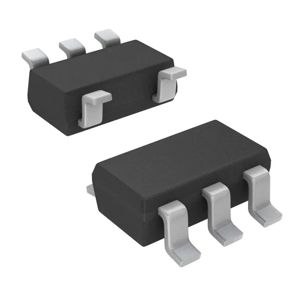

REF2030AIDDCR
IC VREF SERIES 0.05% SOT23-5

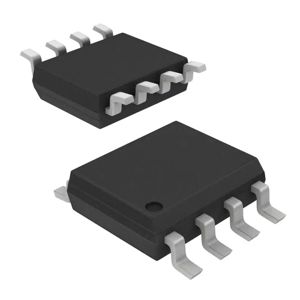

AD586LRZ-REEL
IC VREF SERIES 0.05% 8SOIC

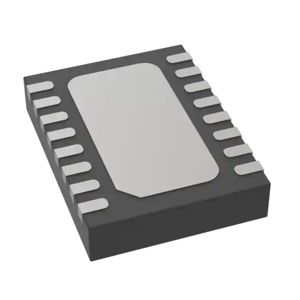

LT6658AIDE-5#TRPBF
IC VREF SERIES 6V 0.05% 16DFN
LM4040B25IDBZT
IC VREF SHUNT 0.2% SOT23-3
TL431BCLPM
IC VREF SHUNT ADJ 0.5% TO92-3
TL431ACLPRA
IC VREF SHUNT ADJ 1% TO92-3

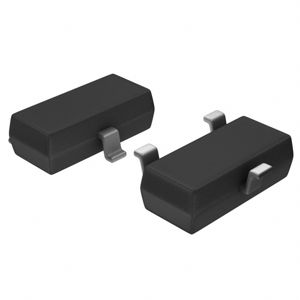

TLVH431BIL3T
IC VREF SHUNT ADJ 0.25% SOT23-3

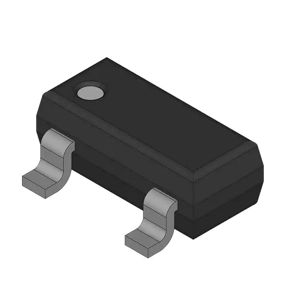

LM4040DEM3-5.0-T
PRECISION MICROPOWER SHUNT VREF
ADR425ARZ-REEL7
IC VREF SERIES 0.12% 8SOIC

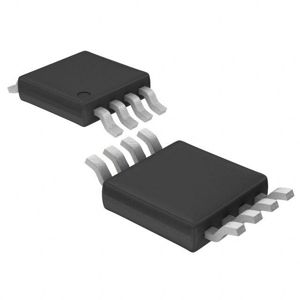

LT6657BHMS8-2.5#PBF
IC VREF SERIES 0.1% 8MSOP
TL431AIDR
IC VREF SHUNT ADJ 1% 8SOIC

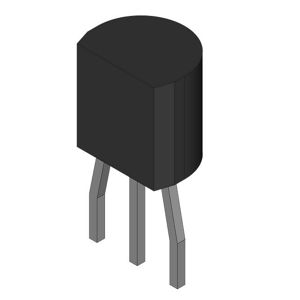

LM4040BIZ-2.5
IC VREF SHUNT 0.2% TO92-3

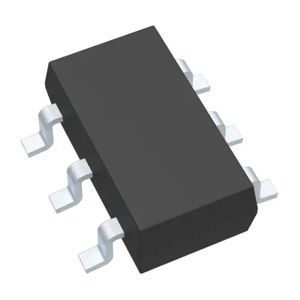

MAX6033CAUT41+T
IC VREF SERIES 0.1% SOT23-6
LM4050BIM3-5.0/NOPB
IC VREF SHUNT 0.2% SOT23-3
LM4132EMFX-4.1
IC VREF SERIES 0.5% SOT23-5

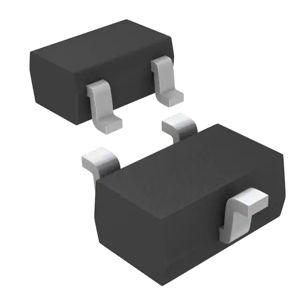

LM4041CIX3-1.2+T
IC VREF SHUNT 0.5% SC70-3

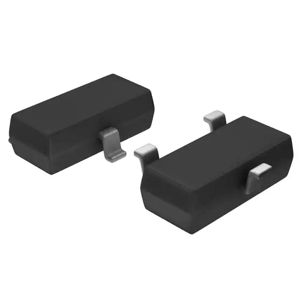

ZXRE330ESA-7
IC VREF SHUNT 2% SOT23

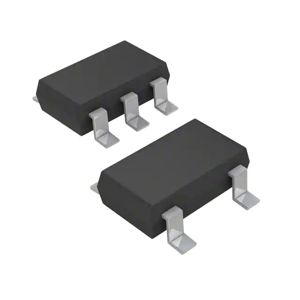

ADR06BUJ-R2
IC VREF SERIES PREC 3V TSOT-23-5

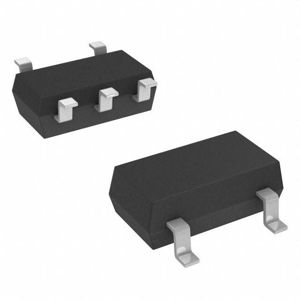

LM4041AECT-1.2
IC VREF SHUNT 0.1% SOT323-5

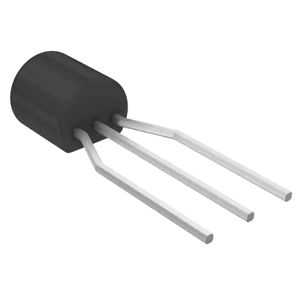

TL431BQLPM
IC VREF SHUNT ADJ 0.5% TO92-3
