Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) - Category Overview
1. Definition:
Rectangular Connectors - Arrays, Edge Type, and Mezzanine (Board to Board) are specialized interconnect solutions designed for high-density, reliable connections between printed circuit boards (PCBs) or modular electronic systems. These connectors feature rectangular housings with precise alignment mechanisms, ensuring secure mating for signal, power, and data transmission in compact or complex assemblies.
- Arrays: Multi-pin configurations arranged in grid patterns for high-speed data transfer and space efficiency.
- Edge Type: Connectors mounted along PCB edges, enabling direct board-to-board or board-to-cable interfacing.
- Mezzanine (Board to Board): Stackable connectors that vertically link parallel PCBs with low-profile designs, ideal for layered architectures.
2. Product Types:
This category includes:
- Header and Receptacle Pairs: Gender-specific pairs for permanent PCB mounting.
- Shrouded/Unshrouded Connectors: Shrouded variants offer mechanical protection, while unshrouded types suit tight spaces.
- High-Speed Mezzanine Connectors: Optimized for differential signaling (e.g., PCIe, SATA).
- Press-Fit/Surface-Mount (SMT) Options: Flexible termination styles for automated assembly.
- Hybrid Connectors: Combine power and signal contacts in one housing.
3. Purchasing Recommendations:
- Pitch Size: Select 0.5mm 2.54mm pitch based on current load and space constraints (smaller pitches for high-density designs).
- Current Rating: Verify ampacity (e.g., 1A 5A per contact) for power applications.
- Material: High-temperature plastics (PBT, LCP) or metal housings for rugged environments.
- Mating Cycles: Choose connectors rated for 500+ cycles if frequent disconnection is expected.
- Compliance: Ensure adherence to standards like IEC, UL, or MIL-SPEC for industrial/military use.
Ideal for embedded systems, telecom hardware, and IoT devices, these connectors balance density, durability, and signal integrity. Partner with trusted manufacturers to avoid counterfeit components in critical applications.
Filter and sort
Categories
FSI-120-03-G-D-M-AB-K
CONN STACKING 40POS SMD GOLD
ERM5-075-02.0-S-DV-TR
CONN HDR 150POS SMD GOLD
91910-21111LF
CONN HDR 11POS SMD GOLD
DF12NC(3.5)-50DP-0.5V(51)
CONN HDR 50POS SMD GOLD
2-5146896-1
CONN RCPT 64POS SMD GOLD
ERM8-030-09.0-S-DV-K-TR
CONN HDR 60POS SMD GOLD

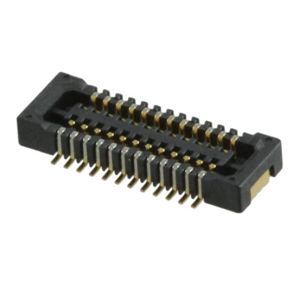

DF37C-24DP-0.4V(51)
CONN HDR 24POS SMD GOLD
SEAF-50-01-S-04-2-RA-TR
CONN HD ARRAY RCPT 200P R/A SMD

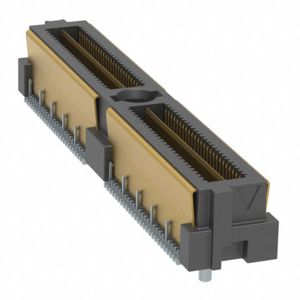

QMSS-052-06.75-L-D-K
CONN HDR 104POS SMD GOLD
SEAF-30-06.0-L-10-2-A-K-TR
CONN HD ARRAY RCPT 300P SMD GOLD

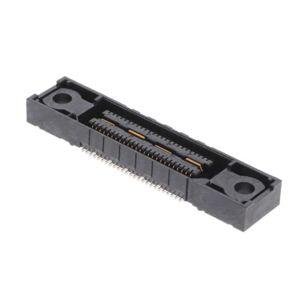

QSS-025-01-F-D-A-LS2
CONN SOCKET 50POS SMD GOLD
5767114-6
CONN RCPT 228POS SMD GOLD
FX18-140S-0.8SV15
CONN RCPT 140POS SMD GOLD
71660-7268
1.27MM PITCH EBBI 50D RECEPTACLE

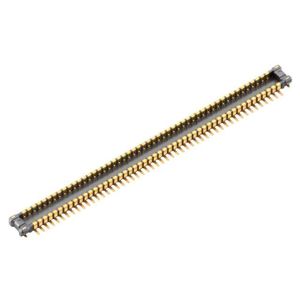

AXF6A0012A
CONN HDR 100POS SMD GOLD
ERM8-040-08.0-S-DV-TR
CONN HDR 80POS SMD GOLD
501594-3011
0.4 B/B PLUG ASSY 30CKT EMBSTP P
SEAF-30-06.5-S-04-2-A-K-TR
CONN HD ARRAY RCPT 120P SMD GOLD
ERM8-030-02.0-S-DV-P-TR
CONN HDR 60POS SMD GOLD
KX15-30K4DE
CONN PLUG 30POS SMD GOLD
