Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) - Category Overview
1. Definition:
Rectangular Connectors - Arrays, Edge Type, and Mezzanine (Board to Board) are specialized interconnect solutions designed for high-density, reliable connections between printed circuit boards (PCBs) or modular electronic systems. These connectors feature rectangular housings with precise alignment mechanisms, ensuring secure mating for signal, power, and data transmission in compact or complex assemblies.
- Arrays: Multi-pin configurations arranged in grid patterns for high-speed data transfer and space efficiency.
- Edge Type: Connectors mounted along PCB edges, enabling direct board-to-board or board-to-cable interfacing.
- Mezzanine (Board to Board): Stackable connectors that vertically link parallel PCBs with low-profile designs, ideal for layered architectures.
2. Product Types:
This category includes:
- Header and Receptacle Pairs: Gender-specific pairs for permanent PCB mounting.
- Shrouded/Unshrouded Connectors: Shrouded variants offer mechanical protection, while unshrouded types suit tight spaces.
- High-Speed Mezzanine Connectors: Optimized for differential signaling (e.g., PCIe, SATA).
- Press-Fit/Surface-Mount (SMT) Options: Flexible termination styles for automated assembly.
- Hybrid Connectors: Combine power and signal contacts in one housing.
3. Purchasing Recommendations:
- Pitch Size: Select 0.5mm 2.54mm pitch based on current load and space constraints (smaller pitches for high-density designs).
- Current Rating: Verify ampacity (e.g., 1A 5A per contact) for power applications.
- Material: High-temperature plastics (PBT, LCP) or metal housings for rugged environments.
- Mating Cycles: Choose connectors rated for 500+ cycles if frequent disconnection is expected.
- Compliance: Ensure adherence to standards like IEC, UL, or MIL-SPEC for industrial/military use.
Ideal for embedded systems, telecom hardware, and IoT devices, these connectors balance density, durability, and signal integrity. Partner with trusted manufacturers to avoid counterfeit components in critical applications.
Filter and sort
Categories

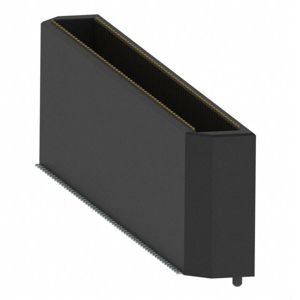

BTE-060-09-F-D-A
CONN HDR 120POS SMD GOLD

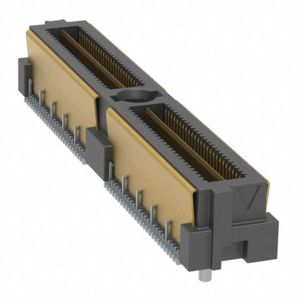

QMSS-052-06.75-H-D-A-K-TR
CONN HDR 104POS SMD GOLD
WR-120S-VFH30-N1
CONN RCPT 120POS SMD GOLD
WR-50P-HF-HD-A1E
CONN PLUG 50POS R/A SMD GOLD
1-5353190-0
CONN RCPT 140POS SMD GOLD
MA01F100VACBR150
CONN FLOATING SIDE STR 100 POS

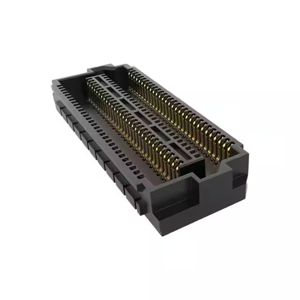

APF6-040-03.5-L-04-2-A-TR
CONN 0.635MM SKT 160POS SMD
QTS-050-01-L-D-A-K-TR
CONN HDR 100POS SMD GOLD
DF37NC-50DS-0.4V(53)
CONN RCPT 50POS SMD GOLD
ERM8-035-02.0-S-DV-TR
CONN HDR 70POS SMD GOLD

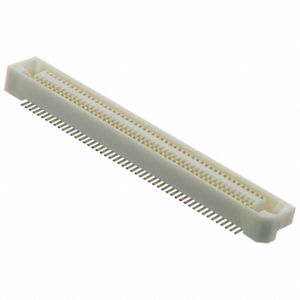

FX6-100S-0.8SV(71)
CONN RCPT 100POS SMD GOLD
10162582-1134109LF
CONAN LITE HEADER, 9 POSITION
ERF8-005-05.0-L-DV-TR
CONN SOCKET 10POS SMD GOLD
84501-001LF
CONN ARRAY RCPT 300POS SMD GOLD
SEAF-50-01-S-08-2-RA-GP-K-TR
CONN HD ARRAY RCPT 400P R/A SMD

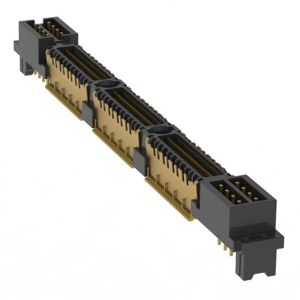

QMSS-078-01-H-D-EM2-PC8
CONN HDR 156POS SMD GOLD
QSH-020-01-C-D-DP-K-TR
CONN DIFF ARRAY RCP 40P SMD GOLD
FX11LB-120S/12-SV(71)
CONN RCPT 120POS SMD GOLD

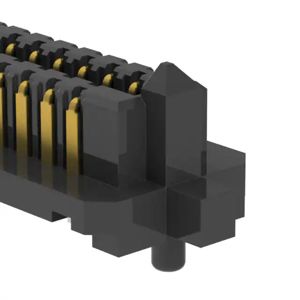

SEAM-10-09.0-S-04-1-A-K-TR
CONN HD ARRAY PLUG 40P SMD GOLD

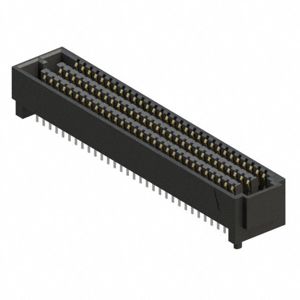

SEAF-30-06.5-S-06-1-A-K-TR
CONN HD ARRAY RCPT 180P SMD GOLD
