1. Definition:
Rectangular Connectors - Arrays, Edge Type, and Mezzanine (Board to Board) are specialized interconnect solutions designed for high-density, reliable connections between printed circuit boards (PCBs) or modular electronic systems. These connectors feature rectangular housings with precise alignment mechanisms, ensuring secure mating for signal, power, and data transmission in compact or complex assemblies.
- Arrays: Multi-pin configurations arranged in grid patterns for high-speed data transfer and space efficiency.
- Edge Type: Connectors mounted along PCB edges, enabling direct board-to-board or board-to-cable interfacing.
- Mezzanine (Board to Board): Stackable connectors that vertically link parallel PCBs with low-profile designs, ideal for layered architectures.
2. Product Types:
This category includes:
- Header and Receptacle Pairs: Gender-specific pairs for permanent PCB mounting.
- Shrouded/Unshrouded Connectors: Shrouded variants offer mechanical protection, while unshrouded types suit tight spaces.
- High-Speed Mezzanine Connectors: Optimized for differential signaling (e.g., PCIe, SATA).
- Press-Fit/Surface-Mount (SMT) Options: Flexible termination styles for automated assembly.
- Hybrid Connectors: Combine power and signal contacts in one housing.
3. Purchasing Recommendations:
- Pitch Size: Select 0.5mm 2.54mm pitch based on current load and space constraints (smaller pitches for high-density designs).
- Current Rating: Verify ampacity (e.g., 1A 5A per contact) for power applications.
- Material: High-temperature plastics (PBT, LCP) or metal housings for rugged environments.
- Mating Cycles: Choose connectors rated for 500+ cycles if frequent disconnection is expected.
- Compliance: Ensure adherence to standards like IEC, UL, or MIL-SPEC for industrial/military use.
Ideal for embedded systems, telecom hardware, and IoT devices, these connectors balance density, durability, and signal integrity. Partner with trusted manufacturers to avoid counterfeit components in critical applications.
Filter and sort
Categories
SEAM-30-02.0-S-08-2-A-GP-K-TR
CONN HD ARRAY PLUG 240P SMD GOLD

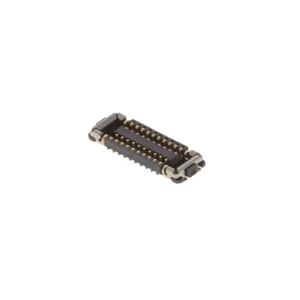

5052702012
CONN RCPT 20POS SMD GOLD

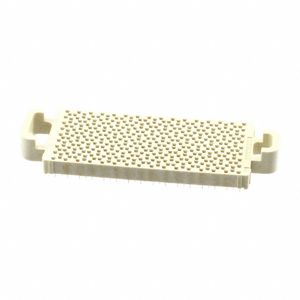

5-2132791-1
CONN DIFF ARRAY RCP 184P PCB TIN

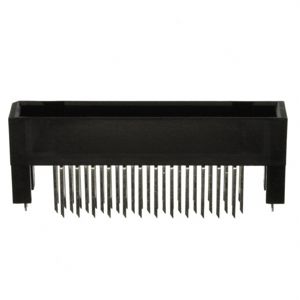

TX25-50P-12ST-H1E
CONN PLUG 50POS VERT GOLD

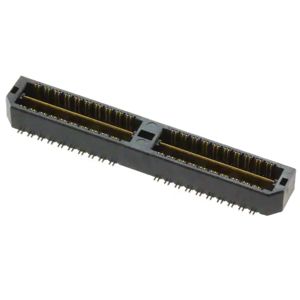

QTH-040-01-L-D-DP-A
CONN DIFF ARRAY PLG 80P SMD GOLD

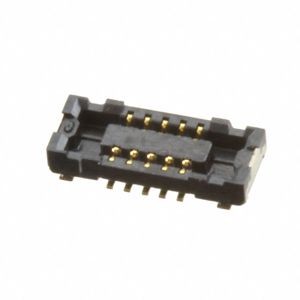

AXE110527A
CONN SOCKET 10POS SMD GOLD

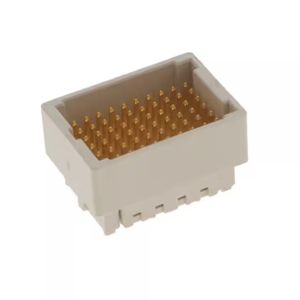

2102079-2
PIN ASSY, 60 PSN, LEAD FREE, MEZ

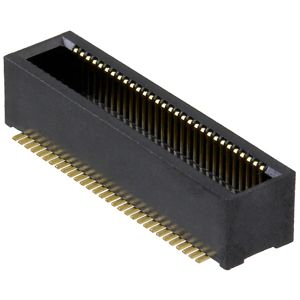

WR-60P-VF50-N1
CONN PLUG 60POS SMD GOLD

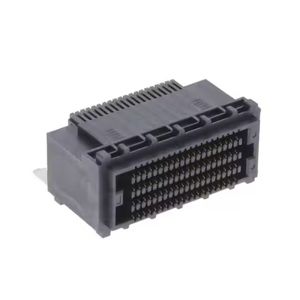

SEAF8-20-1-S-08-2-RA
CONN HD ARRAY RCPT 160P R/A SMD

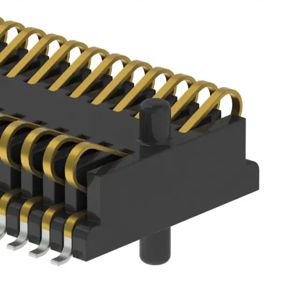

FSI-110-03-G-D-AD
CONN STACKING 20POS SMD GOLD

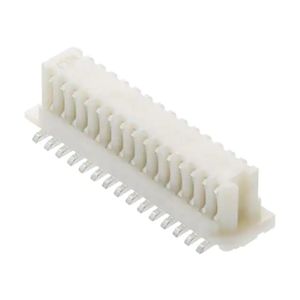

52465-4070
SLIMSTACK BOARD-TO-BOARD CONNECT

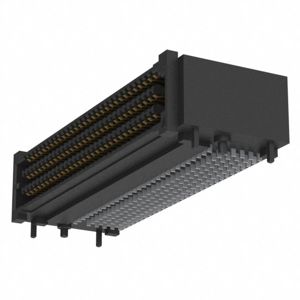

SEAF-30-01-L-06-2-RA-K-TR
CONN HD ARRAY RCPT 180P R/A SMD

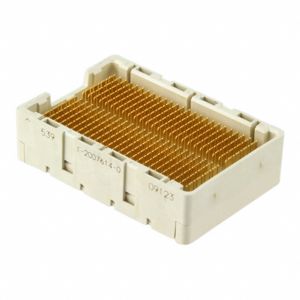

1-2007614-0
CONN DIFF ARRAY PLUG 200POS SMD
QMS-026-05.75-L-D-RF2
CONN HDR 52POS SMD GOLD

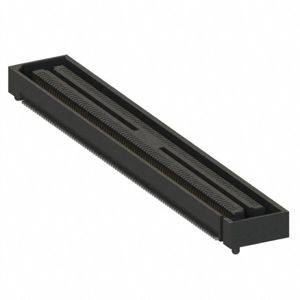

BSH-090-01-H-D-A
CONN SOCKET 180POS SMD GOLD
0545520342
CONN RCPT 34POS SMD GOLD
ERM8-050-05.0-L-DV-L-TR
CONN HDR 100POS SMD GOLD

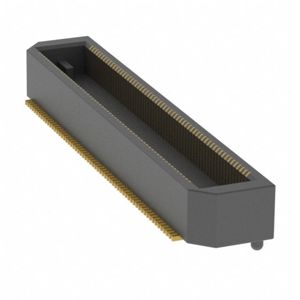

BTH-060-01-H-D-A-K-TR
CONN HDR 120POS SMD GOLD

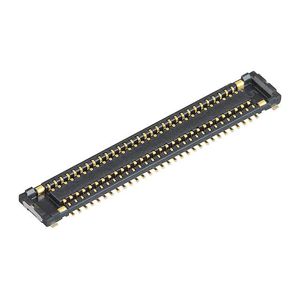

AXF6D1012
CONN HDR 10POS SMD GOLD

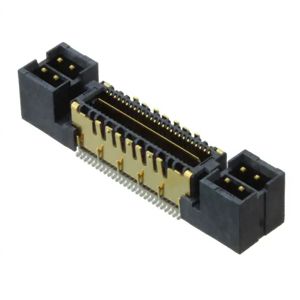

QMSS-026-06.75-L-D-PT4
CONN HDR 52POS SMD GOLD
