Rectangular Connectors - Headers, Male Pins
Rectangular Connectors - Headers, Male Pins | Interconnect Solutions for Secure & Reliable PCB Connections
Definition & Purpose
Rectangular Connectors - Headers, Male Pins are a critical subset of Connectors and Interconnects, designed to establish robust, standardized electrical connections between printed circuit boards (PCBs), modules, or devices. These components feature a male pin interface that inserts into corresponding female sockets (receptacles), ensuring secure signal transmission or power delivery in compact, high-density layouts. Widely used in industrial, automotive, and consumer electronics, they excel in applications demanding precision, durability, and repeatable mating cycles.
Key Product Types
1. Single/Double-Row Headers: Low-profile options for space-constrained designs, available in through-hole (THT) or surface-mount (SMT) configurations.
2. Shrouded/Box Headers: Incorporate protective housings to prevent misalignment and enhance mechanical stability in harsh environments.
3. High-Current Headers: Engineered with thicker pins (e.g., 2.54mm pitch) to support power-intensive applications.
4. Right-Angle & Vertical Headers: Offer flexible PCB layout options for optimized airflow and wire routing.
5. Custom Pin-Count Solutions: Tailored configurations (e.g., 4-pin to 40-pin) to match specific circuit requirements.
Purchasing Recommendations
- Pitch & Size: Verify pin spacing (e.g., 1.27mm, 2.54mm) and row count to ensure compatibility with existing receptacles.
- Material: Prioritize high-temperature plastics (e.g., PBT) and gold-plated pins for corrosion resistance in demanding conditions.
- Current Rating: Select headers rated 3A/pin for power applications to avoid overheating.
- Compliance: Check for UL, IEC, or RoHS certifications to meet industry safety standards.
- Supplier Evaluation: Partner with vendors offering IP67-rated options for moisture-prone environments and sample/testing support.
Ideal for prototyping and mass production, these connectors balance cost-efficiency with long-term reliability critical for IoT devices, robotics, and automotive control systems. Always cross-reference datasheets to align with your project s mechanical and electrical parameters.
Filter and sort
Categories
HTSW-126-08-G-D-RA
CONN HEADER R/A 52POS 2.54MM
5-104894-7
CONN HEADER SMD R/A 70POS 1.27MM

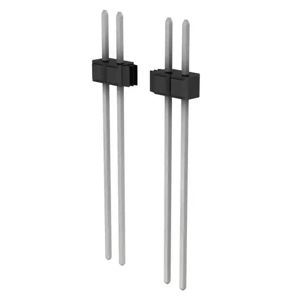

929834-07-08
CONN HEADER VERT 8POS 2.54MM
ZSS-113-03-S-D-695
CONN HDR .100" 26POS
TSM-110-03-T-SV
CONN HEADER SMD 10POS 2.54MM
DF11-30DP-2DS(24)
CONN HEADER R/A 30POS 2MM
1586037-4
CONN HEADER VERT 4POS 4.2MM
TSM-113-03-SM-DV-A
CONN HEADER SMD 26POS 2.54MM
852-10-022-20-002101
CONN HEADER R/A 22POS 1.27MM
892-70-060-20-001101
CONN HEADER R/A 60POS 2.54MM
TSW-115-14-T-S
CONN HEADER VERT 15POS 2.54MM
TSM-108-01-L-DV-LC-P-TR
CONN HEADER SMD 16POS 2.54MM
TSW-102-08-S-D-RA
CONN HEADER R/A 4POS 2.54MM
TSW-121-06-T-S
CONN HEADER VERT 21POS 2.54MM
5-146264-1
CONN HEADER VERT 2POS
9-146276-0-01
CONN HEADER VERT 1POS
TMM-105-05-S-D-SM-A-TR
2MM TERMINAL STRIP
TSM-113-01-L-DH-SL-003-P-TR
CONN HEADER SMD R/A 26POS 2.54MM

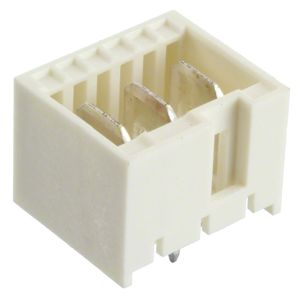

9-2232044-3
CONN HEADER VERT 3POS 5MM
PEC17SBDN
CONN HEADER R/A 17POS 2.54MM
