Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories
826-22-010-00-001000
CONN SPRING PISTON 10POS SLD PCB
811-SS-006-30-026101
CONN SPRING PISTON 6POS SMD
813-22-012-30-022101
FMLB SPRING-LOADED CONN, SMT DOU
813-SS-008-30-021101
CONN SPRING PISTON 8POS SMD
856-10-004-40-001000
CONN SPRING TARGET 4POS R/A SMD
823-S1-004-30-013191
CONN SPRING PISTON 4POS SMD

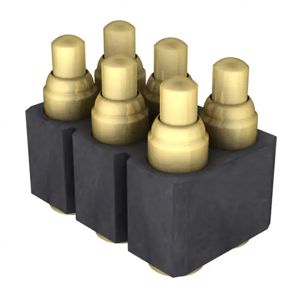

823-S1-006-30-013101
CONN SPRING PISTON 6POS SMD
811-22-020-30-001101
CONN SPRING PISTON 20POS SMD
811-S1-038-10-015101
CONN SPRING PISTON 38POS PCB
812-22-006-30-008101
CONN SPRING PISTON 6POS SMD
811-S1-024-10-014101
CONN SPRING PISTON 24POS PCB
813-SS-054-10-474101
CONN SPRING PISTON 54POS PCB
813-SS-010-30-001191
CONN SPRING PISTON 10POS SMD

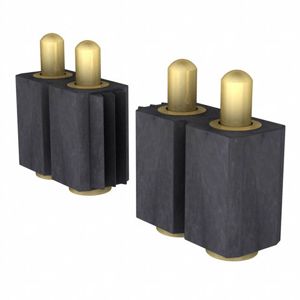

811-S1-007-30-016191
CONN SPRING PISTON 7POS SMD
813-22-016-30-001101
CONN SPRING PISTON 16POS SMD
821-22-058-10-000101
CONN SPRING PISTON 58POS PCB
821-22-038-10-001101
CONN SPRING PISTON 38POS PCB
817-22-018-30-001101
CONN SPRING PISTON 18POS SMD

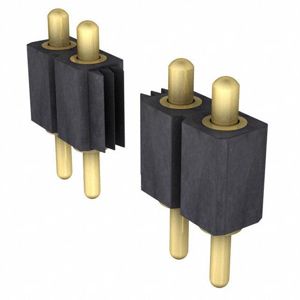

811-S1-062-10-014101
CONN SPRING PISTON 62POS PCB
70AAJ-6-F0G
CONN SPRING MOD FEMALE 6POS SMD
