Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

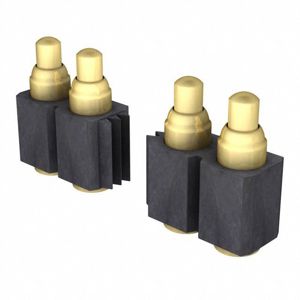

821-S1-007-30-013101
CONN SPRING PISTON 7POS SMD

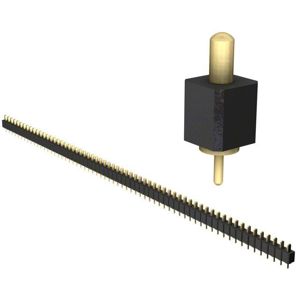

821-22-063-10-003101
CONN SPRING PISTON 63POS PCB

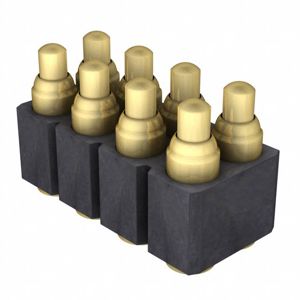

823-S1-008-30-015191
CONN SPRING PISTON 8POS SMD

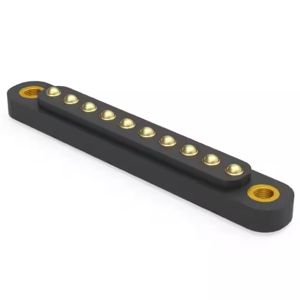

845-22-010-30-011101
4MM PITCH SINGLE ROW SMT OMNIBAL
815-22-014-30-001101
CONN SPRING PISTON 14POS SMD

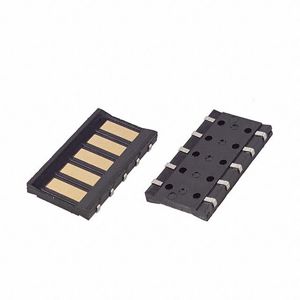

70ADJ-5-FL0G
CONN SPRING MOD FEMALE 5POS SMD

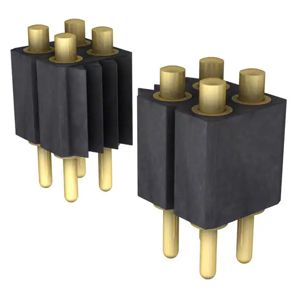

813-S1-032-10-016101
CONN SPRING PISTON 32POS PCB
811-S1-058-10-015101
CONN SPRING PISTON 58POS PCB

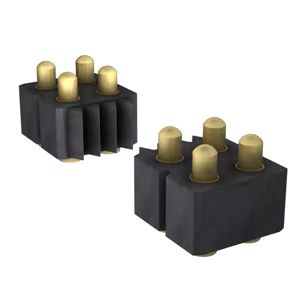

813-S1-008-30-014101
CONN SPRING PISTON 8POS SMD

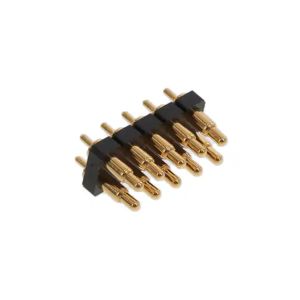

PH2-3B-10-MVP-4360
CONN SPRING PISTON 10POS PCB

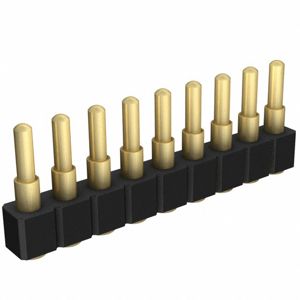

812-22-009-30-004101
CONN SPRING PISTON 9POS SMD

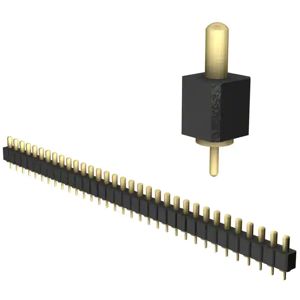

821-22-033-10-004101
CONN SPRING PISTON 33POS PCB

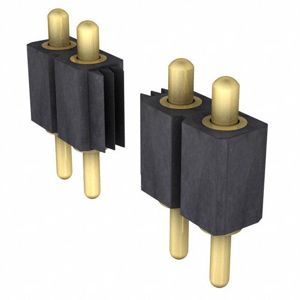

811-S1-020-10-014101
CONN SPRING PISTON 20POS PCB

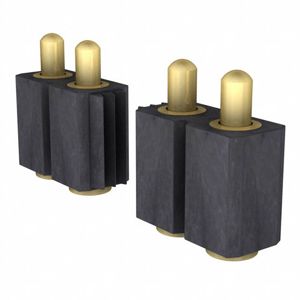

811-S1-006-30-014191
CONN SPRING PISTON 6POS SMD

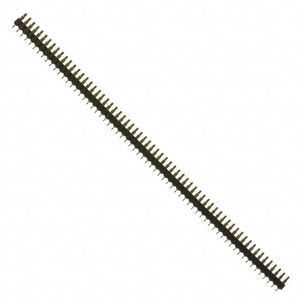

816-22-064-10-001101
CONN SPRING PISTON 64POS PCB
811-SS-009-30-006101
CONN SPRING PISTON 9POS SMD

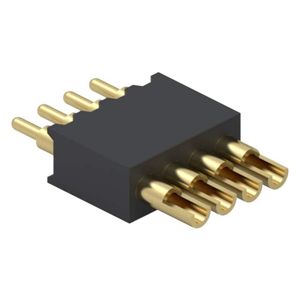

854-22-004-10-003101
CONN SPRING PISTON 4POS SLD PCB

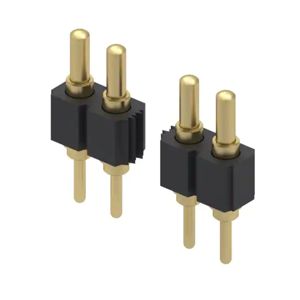

825-22-008-10-001101
CONN SPRING PISTON 8POS PCB

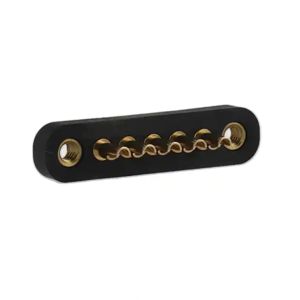

868-10-005-00-012000
CONN SPRING TARGET 5POS SLD PCB

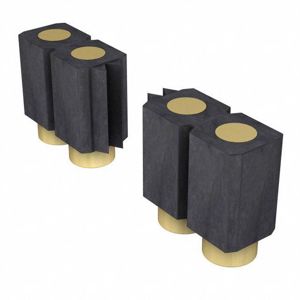

800-10-006-30-507101
CONN SPRING TARGET 6POS SMD
