Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

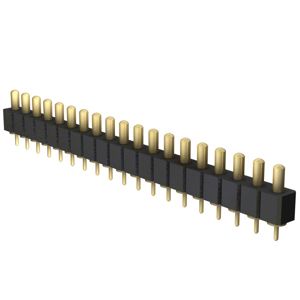

821-22-019-10-004101
CONN SPRING PISTON 19POS PCB
821-22-012-10-003101
CONN SPRING PISTON 12POS PCB

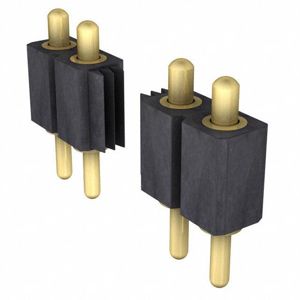

811-S1-050-10-017101
CONN SPRING PISTON 50POS PCB
824-22-037-00-001000
CONN SPRING PISTON 37POS SLD PCB

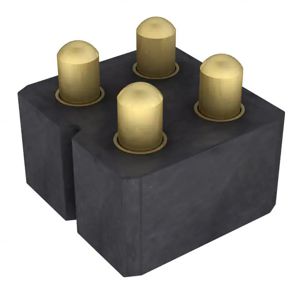

813-S1-004-30-017101
CONN SPRING PISTON 4POS SMD
823-22-004-10-002101
CONN SPRING PISTON 4POS PCB
70ADJ-2-FL1G
CONN SPRING MOD FEMALE 2POS SMD

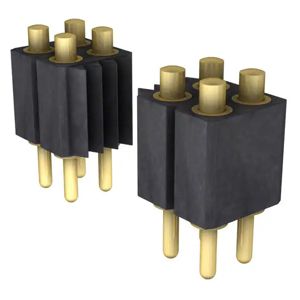

813-S1-060-10-014101
CONN SPRING PISTON 60POS PCB

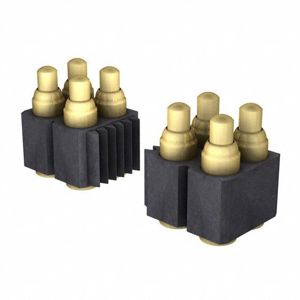

823-S1-016-30-014101
CONN SPRING PISTON 16POS SMD
813-SS-010-30-003191
CONN SPRING PISTON 10POS SMD

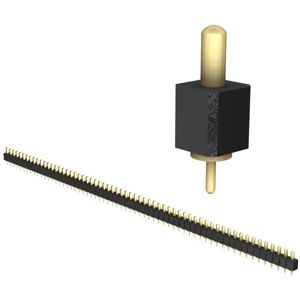

821-22-061-10-004101
CONN SPRING PISTON 61POS PCB
824-22-003-00-001000
CONN SPRING PISTON 3POS SLD PCB
811-SS-004-30-004191
CONN SPRING PISTON 4POS SMD
812-22-049-30-000101
CONN SPRING PISTON 49POS SMD
813-S1-050-10-015101
CONN SPRING PISTON 50POS PCB
817-22-030-30-001101
CONN SPRING PISTON 30POS SMD
811-22-020-30-000101
CONN SPRING PISTON 20POS SMD
818-22-072-10-001101
CONN SPRING PISTON 72POS PCB
811-S1-054-10-016101
CONN SPRING PISTON 54POS PCB

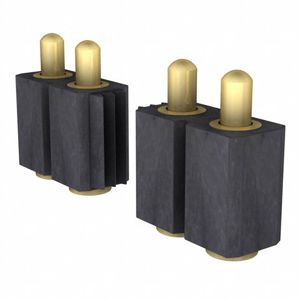

811-SS-005-30-024101
CONN SPRING PISTON 5POS SMD
