1. Definition of the Category
Sockets for ICs (Integrated Circuits) and Transistors are specialized interconnect components designed to provide secure, removable mounting solutions for semiconductor devices. These sockets serve as critical interfaces between delicate ICs/transistors and printed circuit boards (PCBs), enabling easy insertion, replacement, and testing without soldering. They ensure reliable electrical connections while protecting components from mechanical stress, heat damage, or ESD (electrostatic discharge).
2. Types of Products in This Category
This classification includes the following key variants:
- IC Sockets:
- DIP (Dual In-line Package) Sockets: For through-hole mounted ICs, commonly used in prototyping and industrial controls.
- ZIF (Zero Insertion Force) Sockets: Allow safe insertion of fragile ICs (e.g., microprocessors) with minimal physical stress.
- LGA/PGA Sockets: For high-pin-count chips (e.g., CPUs), featuring land grid array or pin grid array designs.
- Transistor Sockets:
- TO (Transistor Outline) Sockets: Compatible with TO-3, TO-5, TO-92 packages, offering heat dissipation and quick swaps.
- Surface-Mount (SMT) Sockets: For compact PCB designs, supporting SMD transistors.
- Specialty Sockets:
- Test/Burn-in Sockets: High-durability options for QA and reliability testing.
- RF/High-Frequency Sockets: Shielded designs for signal integrity in RF applications.
3. Purchasing Recommendations
When selecting sockets for ICs or transistors, consider:
- Compatibility: Match the socket type (e.g., DIP, LGA) to the component s package and pin configuration.
- Material & Durability: Prioritize high-temperature thermoplastics or metal alloys for harsh environments.
- Contact Technology: Gold-plated contacts ensure low resistance and corrosion resistance for long-term reliability.
- Application Needs: Opt for ZIF sockets for frequent IC swaps or burn-in sockets for rigorous testing.
- Standards Compliance: Verify adherence to UL, IEC, or RoHS certifications for safety and environmental requirements.
This category is indispensable for electronics manufacturing, repair, and R&D, offering both flexibility and protection for critical semiconductor components. Invest in quality sockets to enhance PCB longevity and reduce maintenance costs.
Filter and sort
Categories

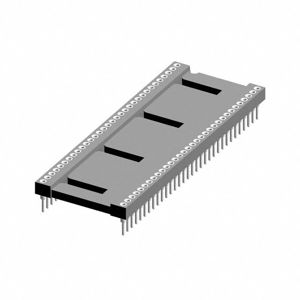

217-83-764-41-005101
DIL SOLDER TAIL 1.778MM
116-83-652-41-002101
CONN IC DIP SOCKET 52POS GOLD
110-44-308-41-001000
CONN IC DIP SOCKET 8POS TIN
116-83-422-41-011101
CONN IC DIP SOCKET 22POS GOLD

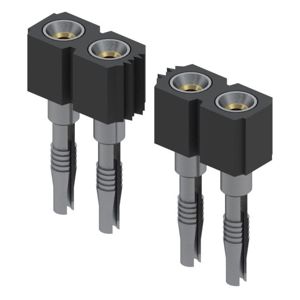

346-93-105-41-013000
CONN SOCKET SIP 5POS GOLD
116-83-314-41-012101
CONN IC DIP SOCKET 14POS GOLD
169-PRS13001-12
CONN SOCKET PGA ZIF GOLD
110-93-428-41-105000
CONN IC DIP SOCKET 28POS GOLD
123-83-420-41-001101
CONN IC DIP SOCKET 20POS GOLD
08-6810-90C
CONN IC DIP SOCKET 8POS GOLD
714-43-116-31-018000
CONN SOCKET SIP 16POS GOLD
123-93-632-41-001000
CONN IC DIP SOCKET 32POS GOLD

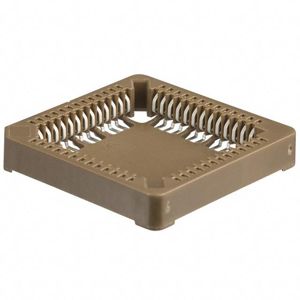

8452-21B1-RK-TP
CONN SOCKET PLCC 52POS TIN
116-83-650-41-004101
CONN IC DIP SOCKET 50POS GOLD
299-83-308-10-001101
CONN IC DIP SOCKET 8POS GOLD
110-87-422-41-005101
CONN IC DIP SOCKET 22POS GOLD
116-83-312-41-007101
CONN IC DIP SOCKET 12POS GOLD
110-83-640-41-605101
CONN IC DIP SOCKET 40POS GOLD
10-9513-10H
CONN IC DIP SOCKET 10POS GOLD
122-83-428-41-001101
CONN IC DIP SOCKET 28POS GOLD
