Terminal Blocks - Wire to Board: Reliable Connectivity Solutions
Definition:
Terminal Blocks - Wire to Board are essential components in electrical and electronic systems, designed to securely connect wires to a printed circuit board (PCB). These blocks provide a modular, reusable interface for establishing reliable electrical connections, simplifying wiring processes, and ensuring efficient signal or power transmission. They are widely used in industrial control systems, automation, power distribution, and consumer electronics.
Types of Terminal Blocks - Wire to Board:
1. Barrier Terminal Blocks: Feature screw or clamp mechanisms to secure wires, ideal for high-vibration environments.
2. PCB-Mounted Terminal Blocks: Directly soldered onto PCBs, offering compact and space-saving solutions.
3. Spring-Clamp Terminal Blocks: Utilize spring-loaded mechanisms for quick, tool-free wire insertion.
4. Plug-in Terminal Blocks: Allow easy disconnection and reconfiguration, suitable for modular systems.
5. Feed-Through Terminal Blocks: Enable wire-to-wire connections while maintaining PCB connectivity.
Purchasing Recommendations:
- Current & Voltage Ratings: Ensure the terminal block matches your application s electrical requirements.
- Wire Gauge Compatibility: Verify the block supports the wire sizes you intend to use.
- Pitch Size: Select the appropriate spacing (e.g., 3.5mm, 5mm) to fit your PCB layout.
- Material & Durability: Opt for high-temperature-resistant plastics or flame-retardant materials for harsh environments.
- Certifications: Look for industry-standard approvals (UL, IEC, RoHS) to guarantee safety and compliance.
Terminal Blocks - Wire to Board streamline electrical assembly while enhancing system reliability. Choosing the right type ensures optimal performance and long-term durability for your projects.
Filter and sort
Categories

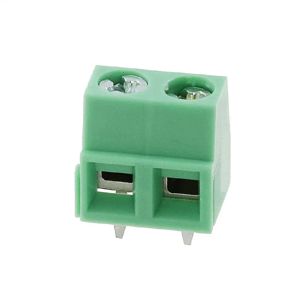

5442170
TERM BLK 2POS SIDE ENTRY 5MM PCB

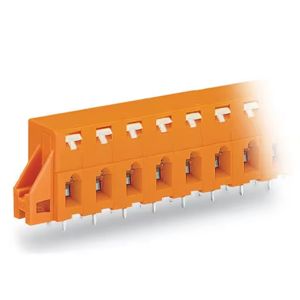

741-426
PCB TERMINAL BLOCK; PUSH-BUTTON;

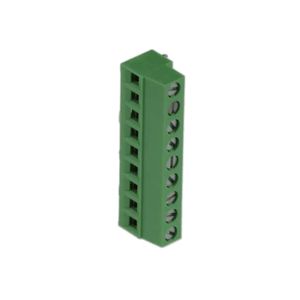

691242700009
5.00 MM TERMINAL BLOCK, VERTICAL

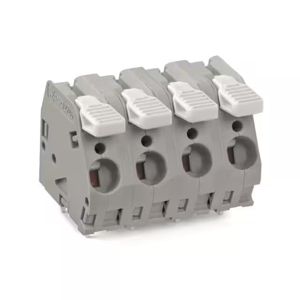

2706-210
PCB TERMINAL BLOCK; LEVER; 6 MM;

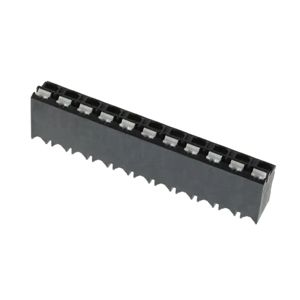

1823502
TERM BLK 11POS TOP ENTRY 5MM PCB

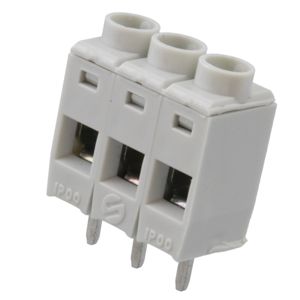

691131710003
TERM BLK 3POS SIDE ENTRY 5MM PCB

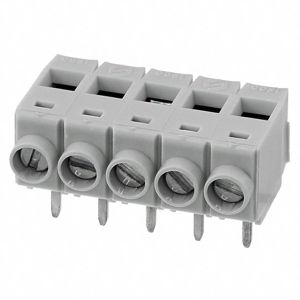

691132700005
TERM BLK 5POS TOP ENTRY 5MM PCB

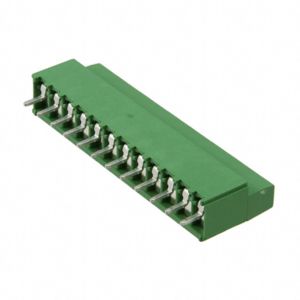

1-282856-2
TERM BLK 12P SIDE ENTRY 5MM PCB

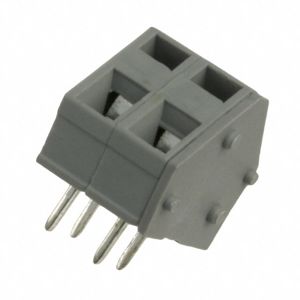

OSTHG020080
TERM BLOCK 2POS 5MM PCB

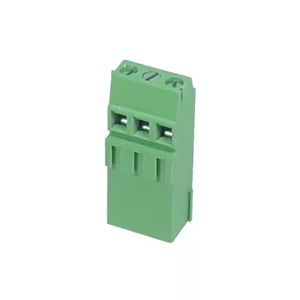

E3K500V-03P
TERM BLK 3POS 5.00MM SCRW PLG

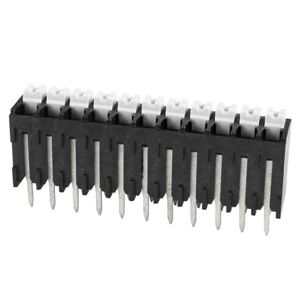

TBLH10V-350-11BK
TERMINAL BLOCK, SCREWLESS, HIGH
1782490000
TERM BLK 15P TOP ENT 5.08MM PCB

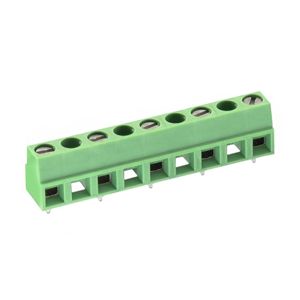

691241810005
TERM BLK 5P SIDE ENTRY 10MM PCB

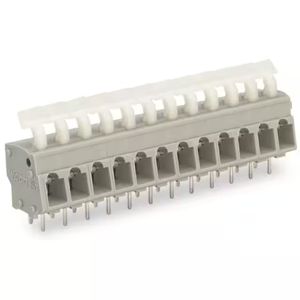

257-454
PCB TERMINAL BLOCK; PUSH-BUTTON;
255-408
PCB TERMINAL BLOCK; PUSH-BUTTON;

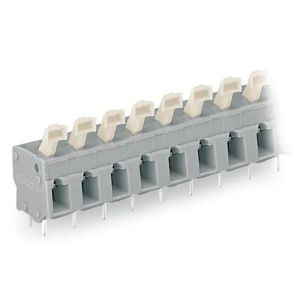

257-508
PCB TERMINAL BLOCK; PUSH-BUTTON;

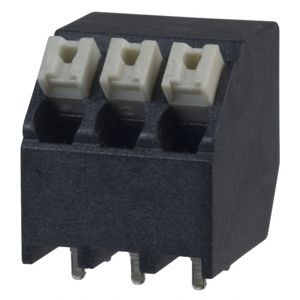

1885420000
TERM BLOCK 3POS 45DEG 3.81MM PCB

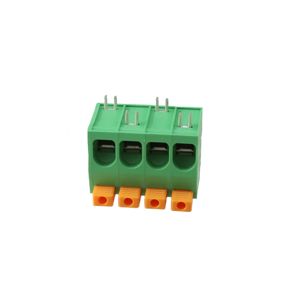

EB171A-04-H
EURO BLOCK, 5 POSITION

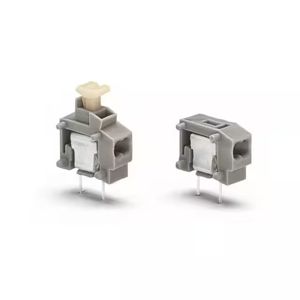

235-711/333-000
STACKABLE 2-CONDUCTOR PCB TERMIN

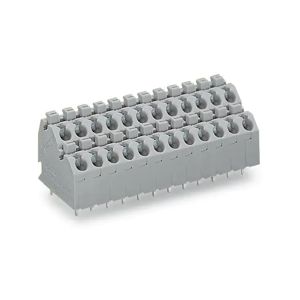

250-702/000-023
DOUBLE-DECK PCB TERMINAL BLOCK;
