1. Definition of Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors are specialized electrical components designed to establish secure, low-resistance connections for magnet wire (enameled wire) in high-performance applications. These connectors feature precision-engineered terminals that pierce or displace the wire's insulation, ensuring reliable conductivity without stripping. Commonly used in transformers, motors, solenoids, and inductors, they excel in environments demanding vibration resistance, compact spacing, and efficient power transmission.
2. Types of Magnetic Wire Connectors
This category includes several key variants:
- Insulation Displacement Connectors (IDC): Slotted terminals that cut through enamel insulation for gas-tight connections.
- Crimp Terminals: Pre-insulated or bare metal sleeves crimped onto stripped magnet wire.
- PCB Mount Connectors: Board-mounted terminals for direct magnet wire attachment.
- Quick-Connect Terminals: Tool-free designs for rapid assembly.
Materials range from phosphor bronze (for high conductivity) to nickel-plated steel (for durability), with voltage ratings spanning 300V to 1kV+.
3. Purchasing Recommendations
When selecting Magnetic Wire Connectors, consider:
- Wire Gauge Compatibility: Match terminal size (e.g., 18-22 AWG) to your wire diameter.
- Current Rating: Ensure the connector meets or exceeds the application s amperage needs.
- Environmental Factors: Opt for heat-resistant or waterproof designs if exposed to extreme conditions.
- Certifications: Look for UL, IEC, or RoHS compliance for safety and regulatory adherence.
For automated production, IDC types reduce labor costs, while hand-assembled projects may favor crimp terminals. Partner with trusted suppliers to avoid counterfeit components in critical circuits.
Note: Always verify datasheets for thermal cycling performance and termination torque specifications.
Filter and sort
Categories

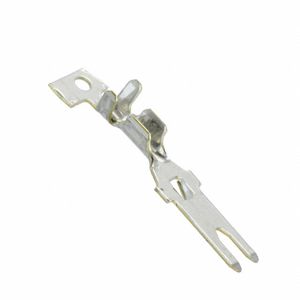

964101-2
CONN MAG TERM 18-20AWG TAB
63670-1

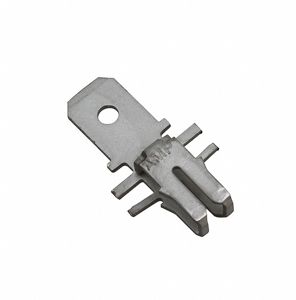

CONN MAG TERM 18-20AWG QC 0.187
316300-6

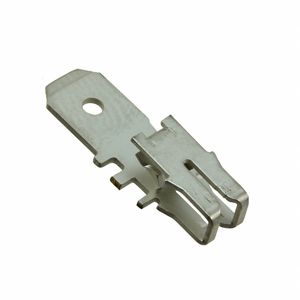

CONN MAG TERM TAB
63459-3

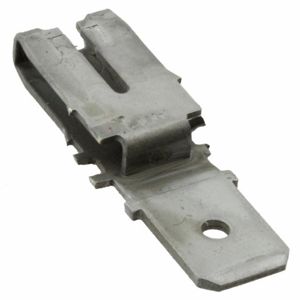

CONN MAG TERM 15-16AWG QC 0.250

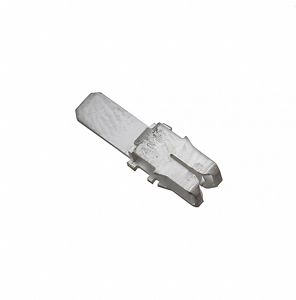

63489-1
CONN MAG TERM 23-27AWG TAB

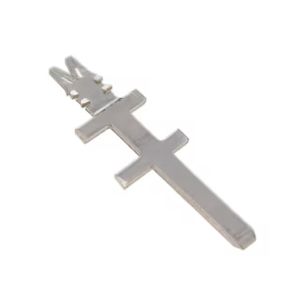

1601133-2
CONN MAG TERM 27-36AWG QC 0.110

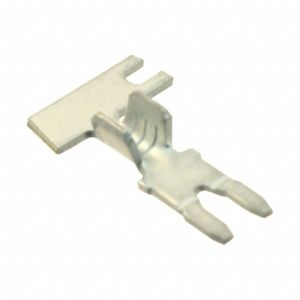

62897-1
CONN MAG TERM 18-22AWG TAB

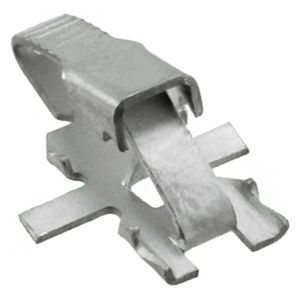

63613-1
CONN MAG TERM 42-52AWG POKE-IN

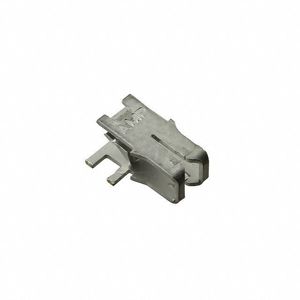

62935-3
CONN MAG TERM 23-27AWG IDC

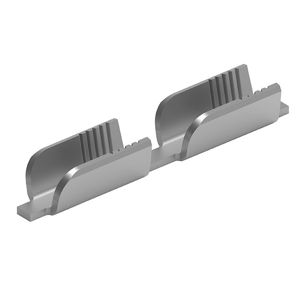

2825180-2
CONN MAG TERM 400-1500CMA CRIMP
62438-1

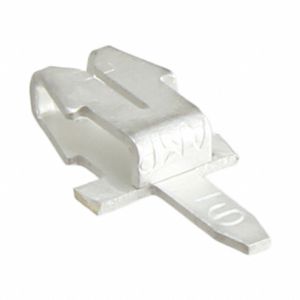

CONN MAG TERM 25-27AWG PCB

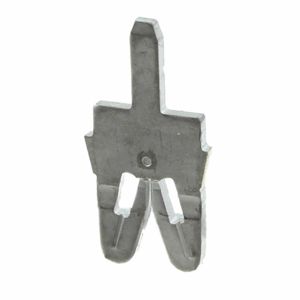

4-1601009-4
CONN MAG TERM 18-34AWG PCB
1601075-1

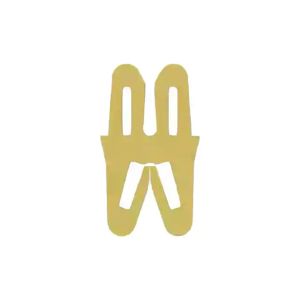

CONN MAG TERM 18-34AWG IDC

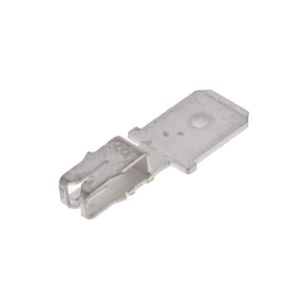

62657-1
CONN MAG TERM 23-27AWG QC 0.250

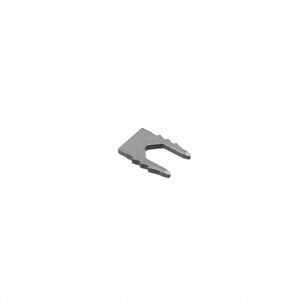

4-1601140-2
CONN MAG TERM 18-22AWG IDC
41765

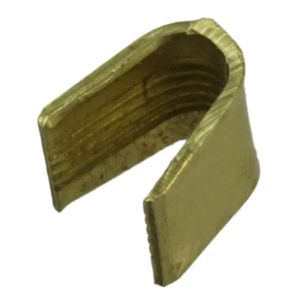

CONN MAG TERM 1500-5000CMA CRIMP

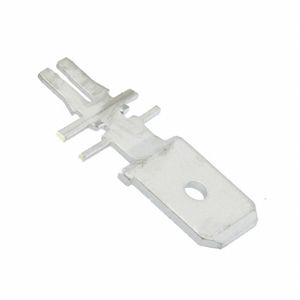

63720-2
CONN MAG TERM 17-19AWG IDC
62044-1

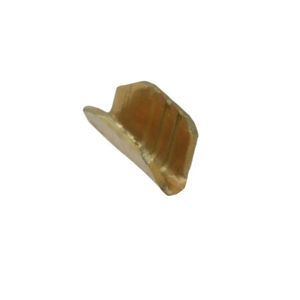

CONN MAG TERM 480-1700CMA CRIMP

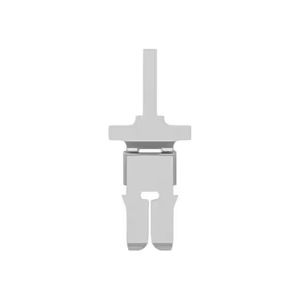

1247001-3
MAGMATE MULTISPRING TERMINAL
63719-2
CONN MAG TERM 20-23AWG IDC
