1. Definition of Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors are specialized electrical components designed to establish secure, low-resistance connections for magnet wire (enameled wire) in high-performance applications. These connectors feature precision-engineered terminals that pierce or displace the wire's insulation, ensuring reliable conductivity without stripping. Commonly used in transformers, motors, solenoids, and inductors, they excel in environments demanding vibration resistance, compact spacing, and efficient power transmission.
2. Types of Magnetic Wire Connectors
This category includes several key variants:
- Insulation Displacement Connectors (IDC): Slotted terminals that cut through enamel insulation for gas-tight connections.
- Crimp Terminals: Pre-insulated or bare metal sleeves crimped onto stripped magnet wire.
- PCB Mount Connectors: Board-mounted terminals for direct magnet wire attachment.
- Quick-Connect Terminals: Tool-free designs for rapid assembly.
Materials range from phosphor bronze (for high conductivity) to nickel-plated steel (for durability), with voltage ratings spanning 300V to 1kV+.
3. Purchasing Recommendations
When selecting Magnetic Wire Connectors, consider:
- Wire Gauge Compatibility: Match terminal size (e.g., 18-22 AWG) to your wire diameter.
- Current Rating: Ensure the connector meets or exceeds the application s amperage needs.
- Environmental Factors: Opt for heat-resistant or waterproof designs if exposed to extreme conditions.
- Certifications: Look for UL, IEC, or RoHS compliance for safety and regulatory adherence.
For automated production, IDC types reduce labor costs, while hand-assembled projects may favor crimp terminals. Partner with trusted suppliers to avoid counterfeit components in critical circuits.
Note: Always verify datasheets for thermal cycling performance and termination torque specifications.
Filter and sort
Categories
1534687-1
MAG-MATE CONTACT WITH SOLDER-PIN
2238089-1
MAG-MATE TAB 31-28 CU / 29-27 AL
1742159-1
CONN MAG TERM 17-19AWG IDC
63461-1
MAG-MATE 187 F TAB 27-23 TPBR
1601045-1
CONN MAG TERM 18-34AWG QC 0.110
1601088-2
CONN MAG TERM 18-34AWG TAB
1742320-1
CONN MAG TERM 16-17.5AWG QC .250
62912-1
CONN MAG TERM 18-20AWG IDC
737060-2
CONN MAG TERM 13-19AWG CRIMP
63778-1
CONN MAG TERM 36-44AWG IDC
1601005-1
CONN MAG TERM 18-34AWG QC 0.110
62439-2
CONN MAG TERM 22-24AWG PCB
964290-2
CONN MAG TERM 18-20AWG POKE-IN
1217493-1
CONN MAG TERM 20-23AWG QC 0.187
62833-3
CONN MAG TERM 16.5-20AWG IDC
63880-1
CONN MAG TERM 23-27AWG PIN
1217172-1
CONN MAG TERM 400-1600CMA CRIMP

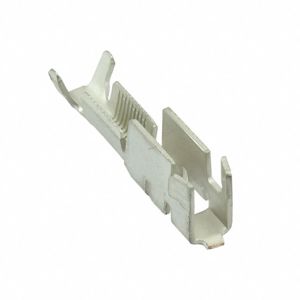

1217174-1
CONN MAG TERM 1500-4200CMA CRIMP
1217458-1
CONN MAG TERM 28-29AWG IDC
62459-1
CONN MAG TERM 23-27AWG CRIMP
