Definition:
Terminals - PC Pin Receptacles and Socket Connectors are specialized interconnect components designed to establish secure, removable electrical connections between printed circuit boards (PCBs), wires, or other electronic devices. These connectors feature precision-engineered sockets or receptacles that mate with corresponding pins, ensuring reliable signal transmission and power delivery in compact, high-density applications.
Product Types in This Category:
1. PCB Pin Receptacles Solder-mounted sockets for direct PCB integration, available in vertical/horizontal orientations.
2. Socket Connectors Modular housings with multiple contact cavities for multi-pin header connections.
3. Press-Fit Terminals Tool-free terminals for quick assembly in prototyping or high-volume production.
4. High-Current Sockets Reinforced designs for power delivery in industrial/automotive systems.
5. Surface-Mount (SMT) Receptacles Low-profile connectors for automated PCB assembly.
Purchasing Recommendations:
- Current Rating: Verify amperage requirements to prevent overheating (e.g., 3A+ for power applications).
- Pitch Size: Match pin spacing (e.g., 2.54mm, 1.27mm) to existing headers.
- Material: Gold-plated contacts enhance conductivity; high-temperature plastics suit harsh environments.
- Compliance: Prioritize UL/IEC-certified options for safety-critical uses.
- Supplier Capability: Opt for vendors offering custom pin counts/lengths for scalable solutions.
Ideal for prototyping, consumer electronics, and industrial controls, these connectors balance durability with design flexibility. Partner with trusted manufacturers to ensure compatibility and long-term reliability.
Filter and sort
Categories

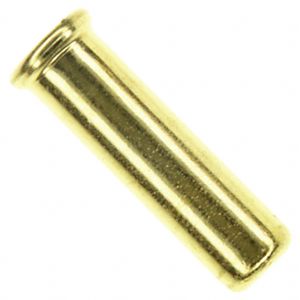

50865
CONN PIN RCPT .034-.041 SOLDER

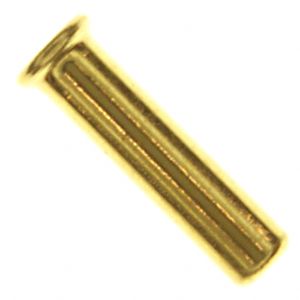

50864
CONN PIN RCPT .026-.033 SOLDER

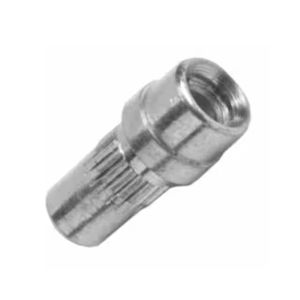

H3165-46
PCB SOCKET

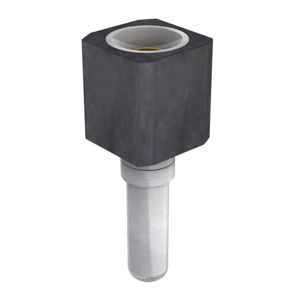

714-87-164-31-012101
CONN PIN RCPT .016-.021 SOLDER

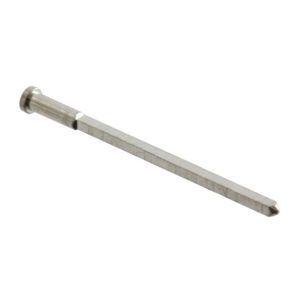

H3175-01
CONN PIN RCPT .016-.021 PRESSFIT

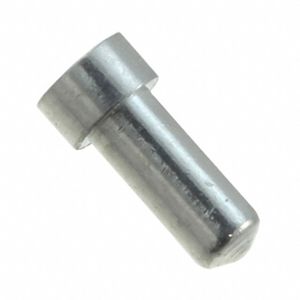

0555-0-15-01-20-27-10-0
CONN PIN RCPT .015-.025 SOLDER

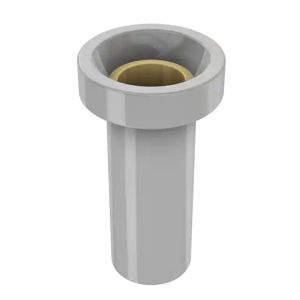

D01-9900401
CONN PIN RCPT .016-.020 SOLDER
712-83-133-41-001101
CONN PIN RCPT .016-.022 SOLDER

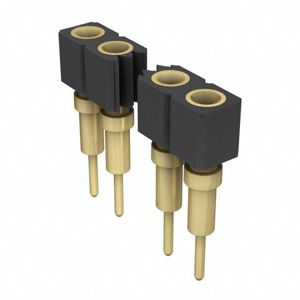

712-87-128-41-001101
CONN PIN RCPT .016-.022 SOLDER

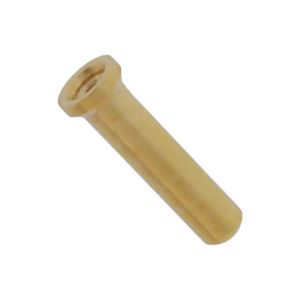

0552-2-15-15-11-27-10-0
CONN PIN RCPT .015-.020 SOLDER

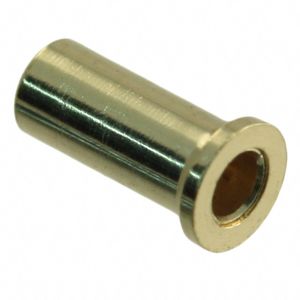

9354-0-15-15-18-27-10-0
CONN PIN RCPT .037-.043 SOLDER

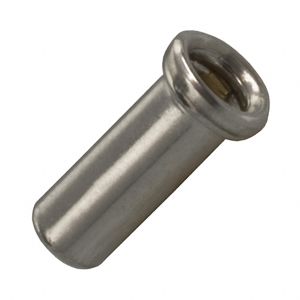

380635-1
CONN PIN RCPT .018-.040 SOLDER

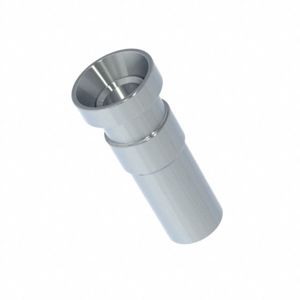

0678-0-15-01-32-02-10-0
CONN PIN RCPT .015-.025 PRESSFIT

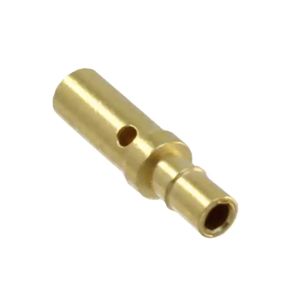

6368-0-33-15-47-27-10-0
CONN PIN RCPT .025-.037 CRIMP

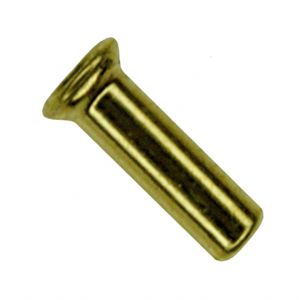

9-330808-3
CONN PIN RCPT .013-.020 SOLDER

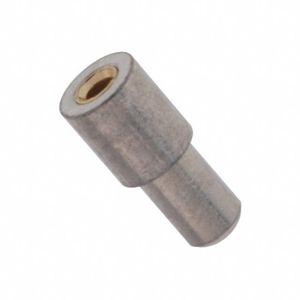

0665-0-15-01-30-27-10-0
CONN PIN RCPT .015-.025 SOLDER

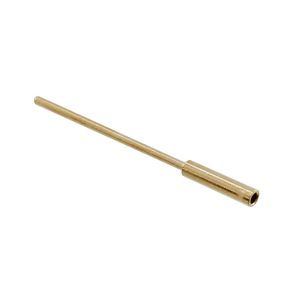

0461-0-15-15-11-27-04-0
CONN PIN RCPT .015-.020 SOLDER

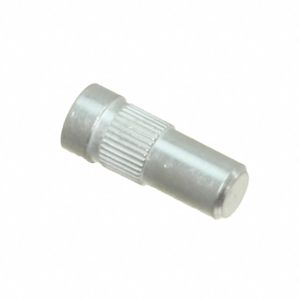

5834-0-15-80-23-27-10-0
CONN PIN RCPT .045-.065 PRESSFIT

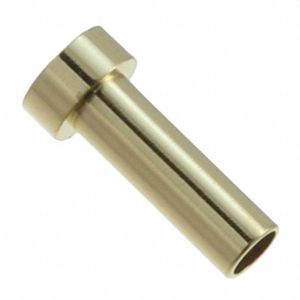

0566-2-15-15-21-27-10-0
CONN PIN RCPT .015-.022 SOLDER

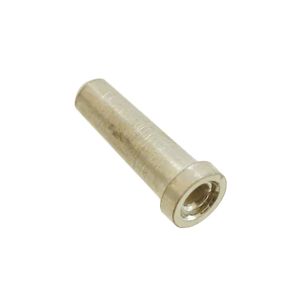

1435-2
CONN PIN RCPT .015-.025 PRESSFIT
