Definition:
Terminals - PC Pin Receptacles and Socket Connectors are specialized interconnect components designed to establish secure, removable electrical connections between printed circuit boards (PCBs), wires, or other electronic devices. These connectors feature precision-engineered sockets or receptacles that mate with corresponding pins, ensuring reliable signal transmission and power delivery in compact, high-density applications.
Product Types in This Category:
1. PCB Pin Receptacles Solder-mounted sockets for direct PCB integration, available in vertical/horizontal orientations.
2. Socket Connectors Modular housings with multiple contact cavities for multi-pin header connections.
3. Press-Fit Terminals Tool-free terminals for quick assembly in prototyping or high-volume production.
4. High-Current Sockets Reinforced designs for power delivery in industrial/automotive systems.
5. Surface-Mount (SMT) Receptacles Low-profile connectors for automated PCB assembly.
Purchasing Recommendations:
- Current Rating: Verify amperage requirements to prevent overheating (e.g., 3A+ for power applications).
- Pitch Size: Match pin spacing (e.g., 2.54mm, 1.27mm) to existing headers.
- Material: Gold-plated contacts enhance conductivity; high-temperature plastics suit harsh environments.
- Compliance: Prioritize UL/IEC-certified options for safety-critical uses.
- Supplier Capability: Opt for vendors offering custom pin counts/lengths for scalable solutions.
Ideal for prototyping, consumer electronics, and industrial controls, these connectors balance durability with design flexibility. Partner with trusted manufacturers to ensure compatibility and long-term reliability.
Filter and sort
Categories
D01-9901401
CONN PIN RCPT .016-.020 SOLDER
8874-0-15-15-11-27-10-0
CONN PIN RCPT .015-.020 SMD
712-83-153-41-001101
CONN PIN RCPT .016-.022 SOLDER
2-5332070-8
CONN PIN RCPT .037-.040 SOLDER
0373-0-15-15-34-27-10-0
CONN PIN RCPT .032-.046 SOLDER
0039-2-17-15-30-27-02-0
CONN PIN RCPT .015-.025 PRESSFIT
712-87-151-41-001101
CONN PIN RCPT .016-.022 SOLDER
1684
CONN PIN RCPT .048-.064 SOLDER

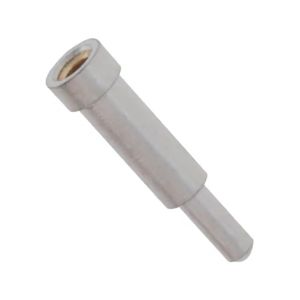

0300-1-15-01-47-27-10-0
CONN PIN RCPT .025-.037 SOLDER

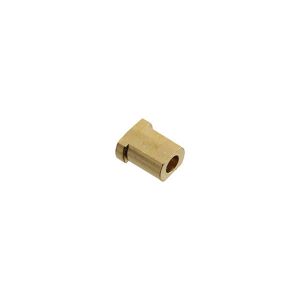

3907-0-18-01-30-14-10-0
CONN PIN RCPT
2297-2-17-15-16-27-02-0
CONN PIN RCPT .022-.034 KNURL
0342-0-15-15-42-27-10-0
CONN PIN RCPT .059-.063 HEX
3808-0-15-15-02-14-10-0
CONN PIN RCPT .040-.050 KNURL
0306-0-19-15-16-27-10-0
CONN PIN RCPT .022-.034 SOLDER
1414
CONN PIN RCPT .032-.046 SOLDER
D01-9841401
CONN PIN RCPT .016-.020 SOLDER
1-5380737-0
CONN PIN RCPT .018-.040 SOLDER
50462-8
CONN PIN RCPT .014-.026 SOLDER
2-5331272-5
CONN PIN RCPT .022-.025 SOLDER
712-87-156-41-001101
CONN PIN RCPT .016-.022 SOLDER
